PACSystems Ethernet Switch SLM042 User Manual Section 5
GFK-3123A Jan 2020
Web Management 20
5.2.6 Upgrade Firmware
Upgrade Firmware allows you to update the switch firmware. Before updating, make sure
you have your TFTP server ready and the firmware image is on the TFTP server.

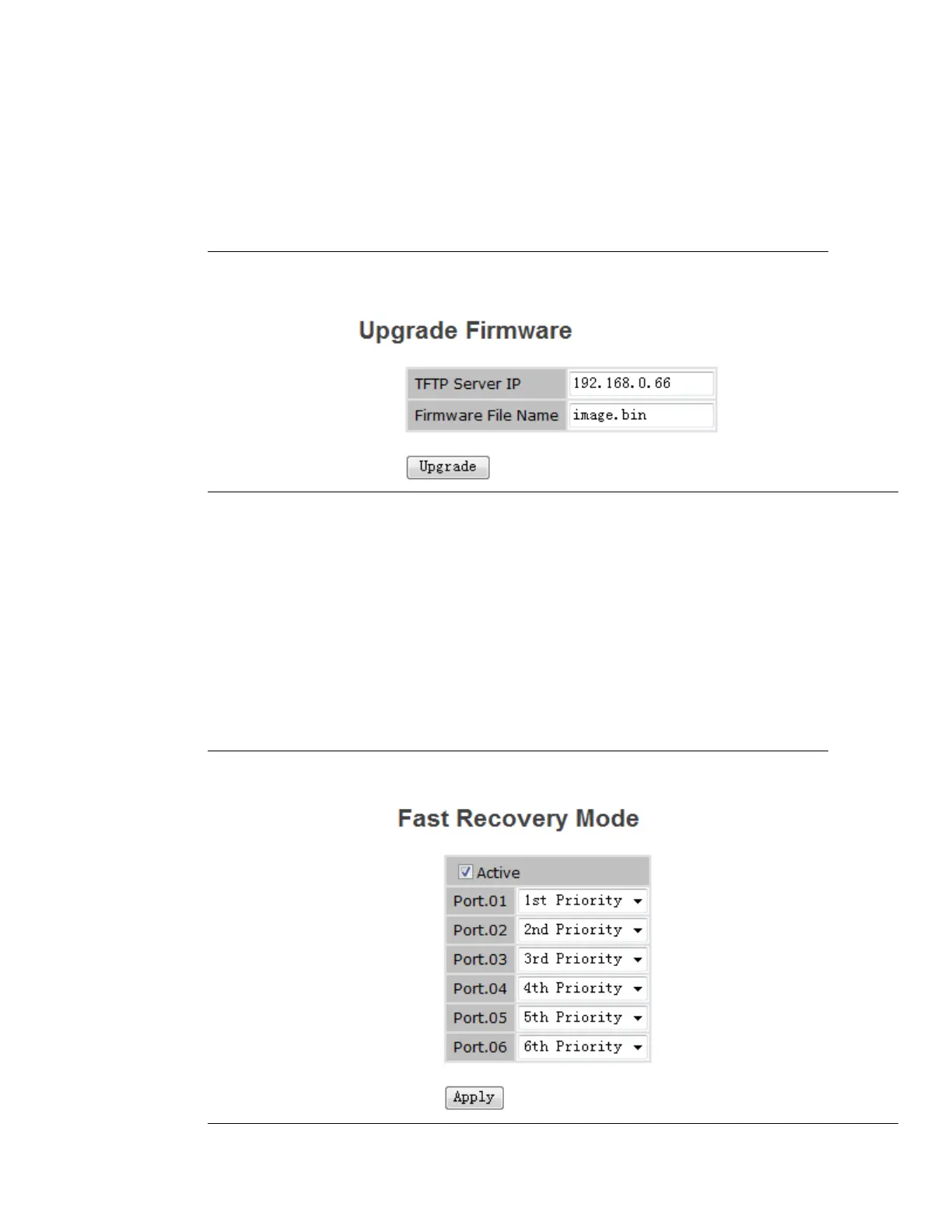

Figure 13: Upgrade Firmware
5.3 Redundancy
5.3.1 Fast Recovery Mode
The Fast Recovery Mode can be set to connect multiple ports to one or more switches. The
SLM042 SERIES with its fast recovery mode will provide redundant links. Fast Recovery mode
supports 6 priorities, only the first priority will be the act port, the other ports configured with
other priority will be the backup ports.
Figure 14: Fast Recovery Mode
