Emerson PACSystems SLM042 - Port Configuration and Control

PACSystems Ethernet Switch SLM042 User Manual Section 5
GFK-3123A Jan 2020
Web Management 26
5.4.3 Port Configuration
5.4.3.1 Port Control
By this function, you can set the state, speed/duplex, flow control, and security of the port.

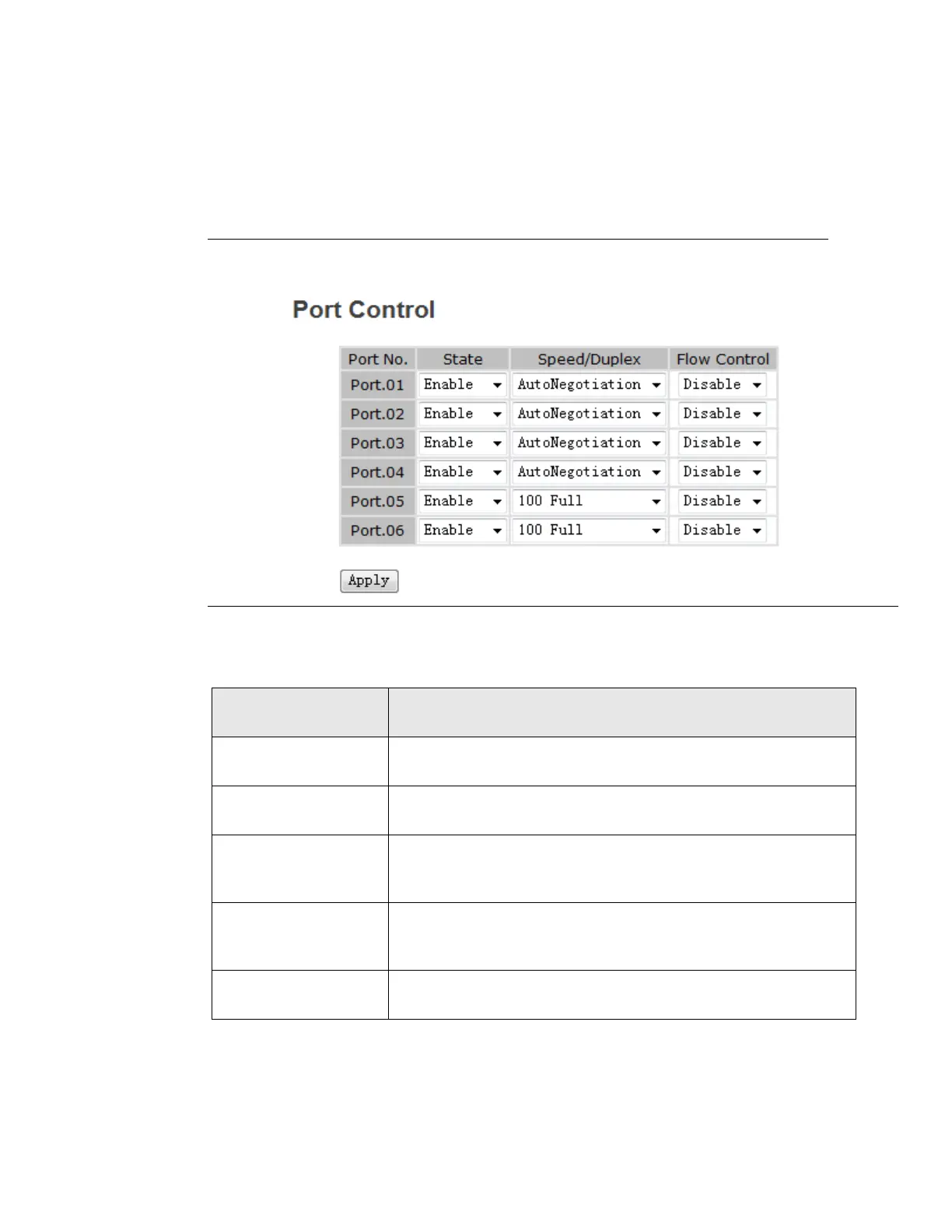

Figure 18: Port Control
The following table describes the labels in this screen.
Label
Description
Port NO.
Port number for setting.
State
Enable/Disable the port.
Speed/Duplex
You can set Auto-negotiation, 100 full,100 half,10 full,10 half
mode.
Flow Control
Support symmetric and asymmetric mode to avoid packet loss
when congestion occurred.
Apply
Click “Apply” to activate the configurations.
