PACSystems Ethernet Switch SLM042 User Manual Section 2
GFK-3123A Jan 2020
Hardware Installation 2
Section 2: Hardware Installation
2.1 Installing Switch on DIN-Rail
Each switch has a DIN-Rail kit on rear panel. The DIN-Rail kit helps switch to fix on the DIN-
Rail. It is easy to install the switch on the DIN-Rail:
2.1.1 Mount SLM042 SERIES on DIN-Rail

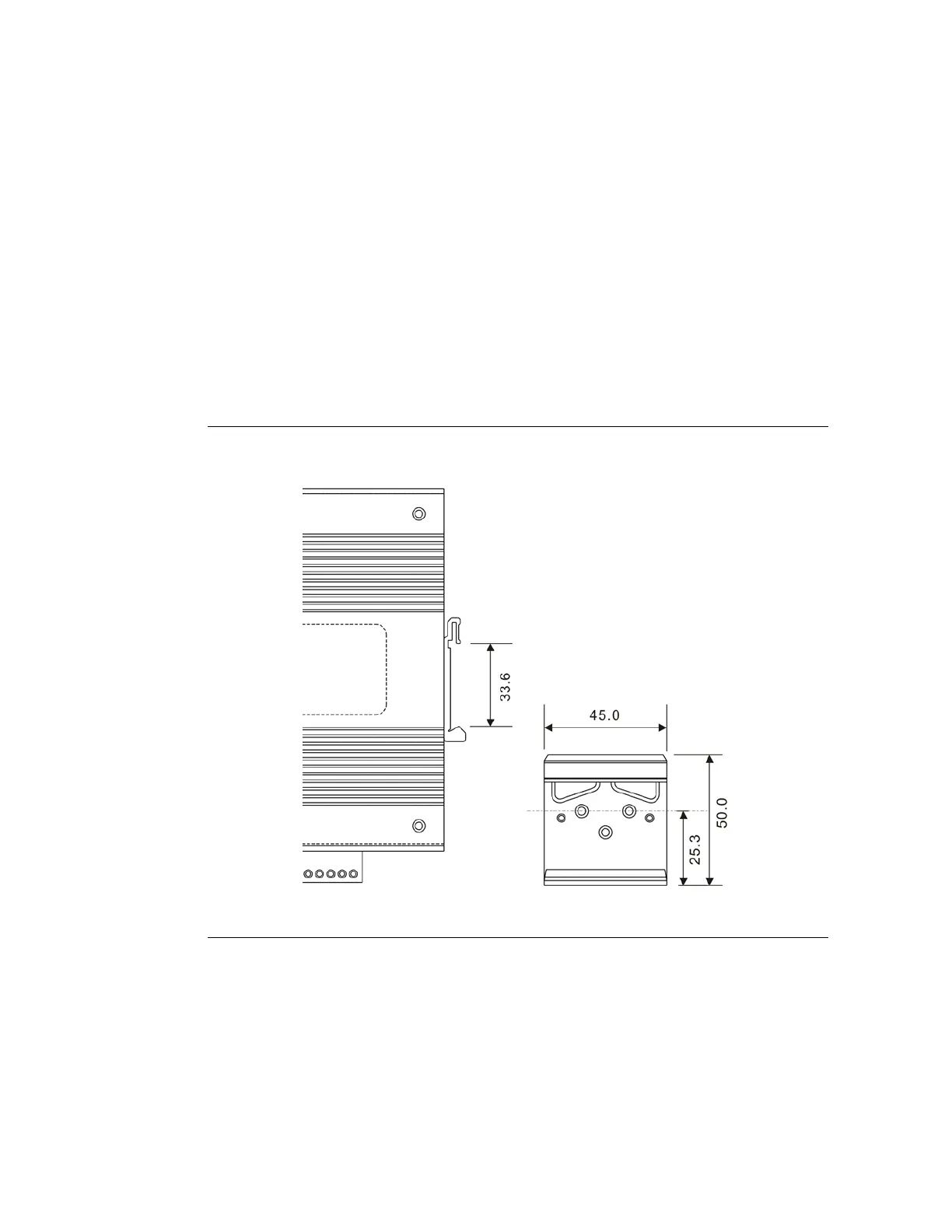

Figure 1: DIN-Rail Size
