PACSystems Ethernet Switch SLM042 User Manual Section 2
GFK-3123A Jan 2020
Hardware Installation 3
2.2 Wall Mounting Installation
Each switch has another installation method for users to fix the switch. A wall mount panel
can be found in the package. The following steps show how to mount the switch on the wall:

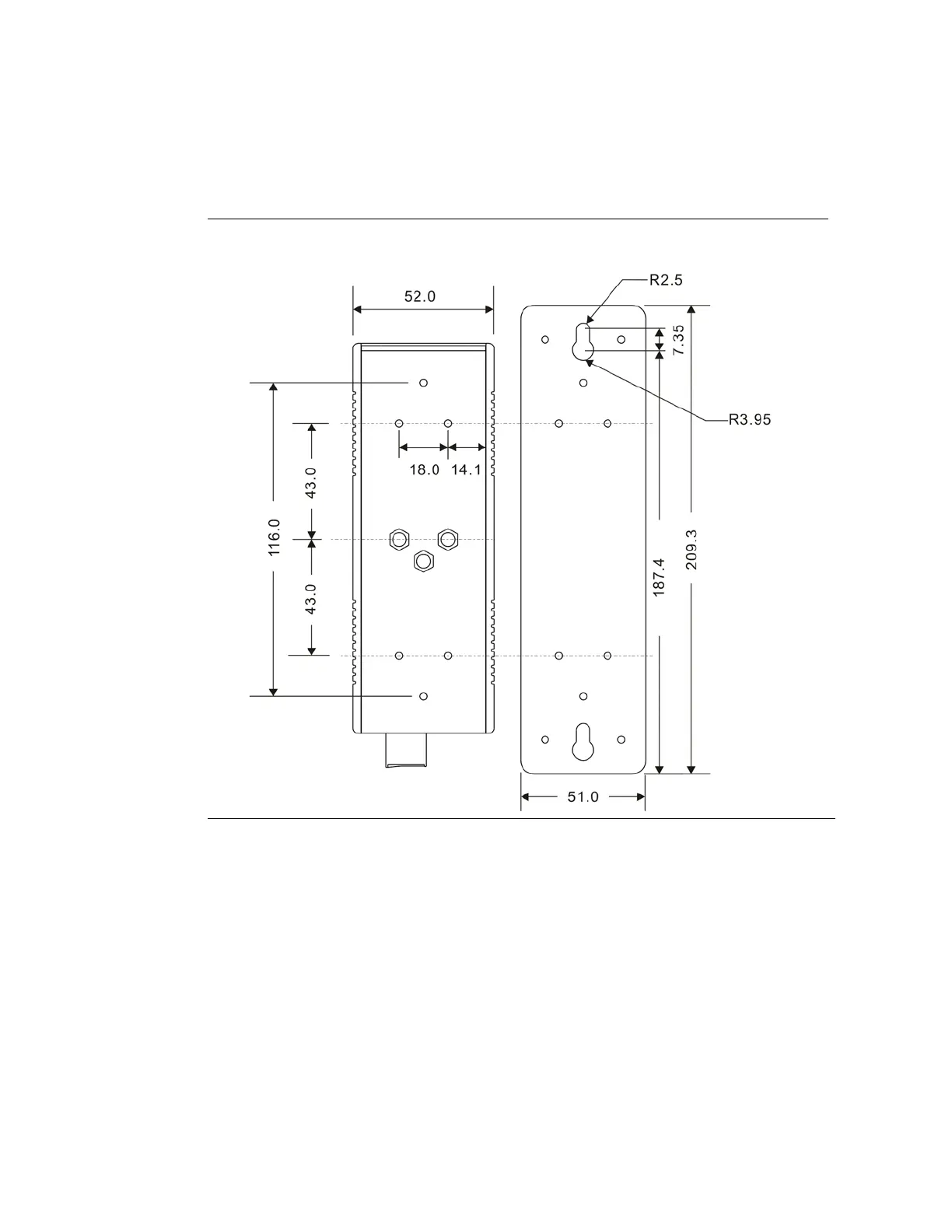

Figure 2: Wall-Mounting Size
