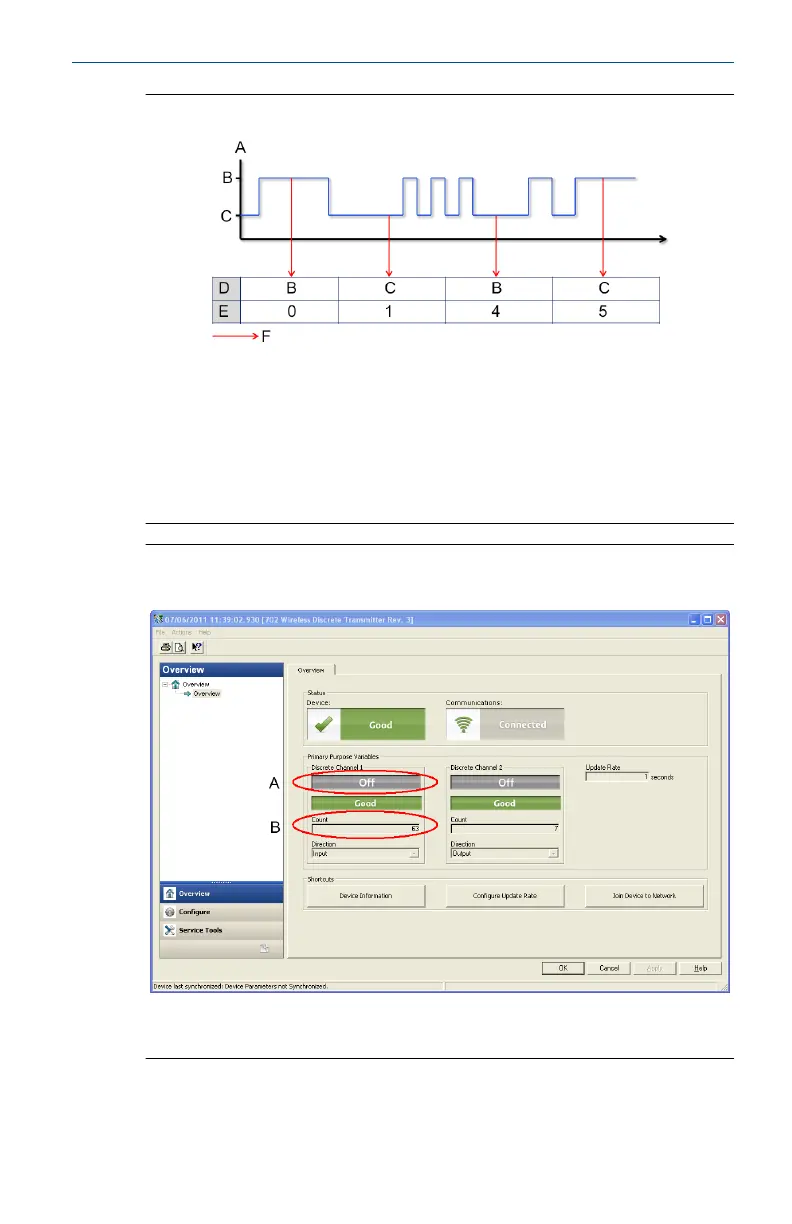

Figure 6-5: Momentary Inputs and Accumulating Count
A. Input Switch State
B. Closed
C. Open
D. State
E. Count
F. Wireless Updates
Figure 6-6: Reporting of Current Discrete State and Count in AMS Device
Manager
A. Current State
B. Count
