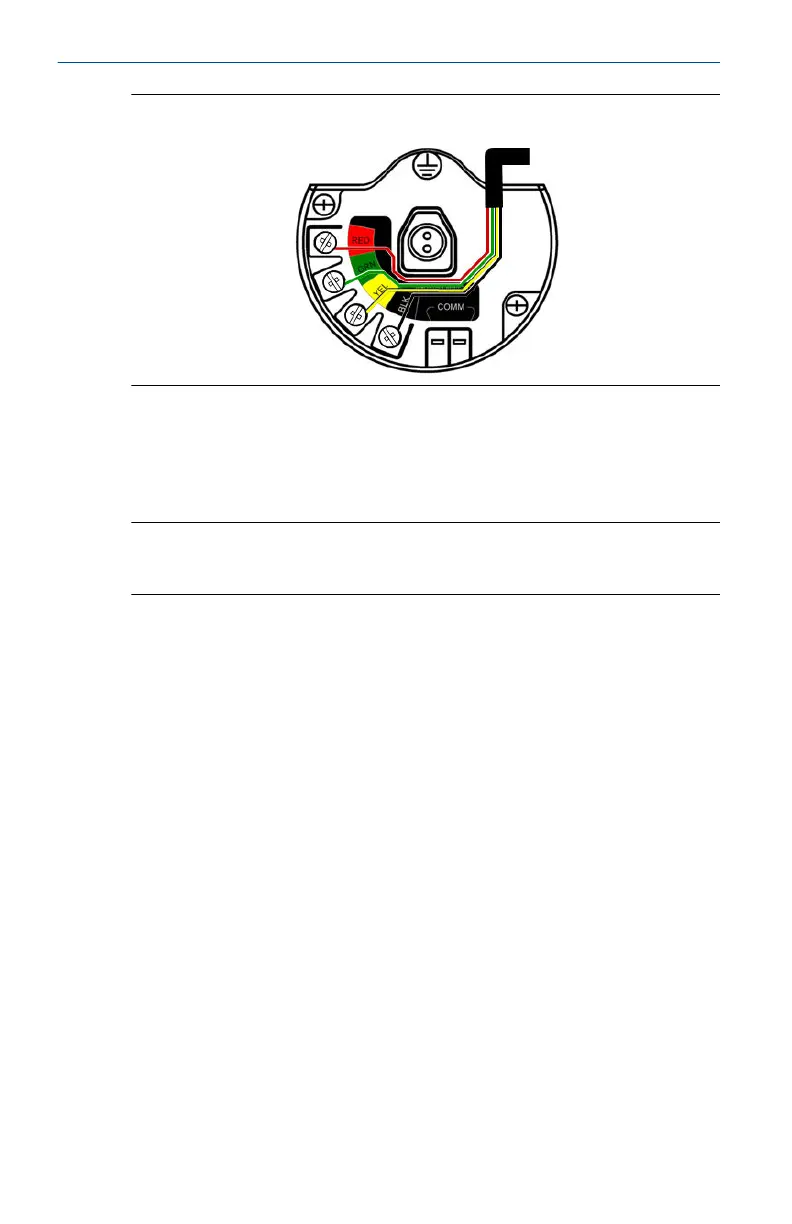

Figure 6-19: Fuel Sensor Connection
6.9.2 Connecting to the fast fuel sensor and TraceTek sensing cable
The connections to the fast fuel sensor or sensing cable are made by
matching the appropriately colored wires to the matching colored
termination lugs.
Note
All part numbers associated with the fuel sensor cable wiring refer to
products sold by nVent
™
Thermo Controls, LLC.
The Rosemount 702 Wireless Transmitter is compatible with the Standard
(TT-FFS) and Water Resistant (TT-FFS-WR) Fast Fuel Sensors. One transmitter
can support up to 3 FastFuel sensors. These Fast Fuel sensors are connected
using TraceTek Modular Leader Cable (TT-MLC-MC-BLK), optional modular
jumper cables (TT-MJC-xx-MC-BLK) and branching connectors (TT-ZBC-MC-
BLK) as suggested in Figure 6-20.
