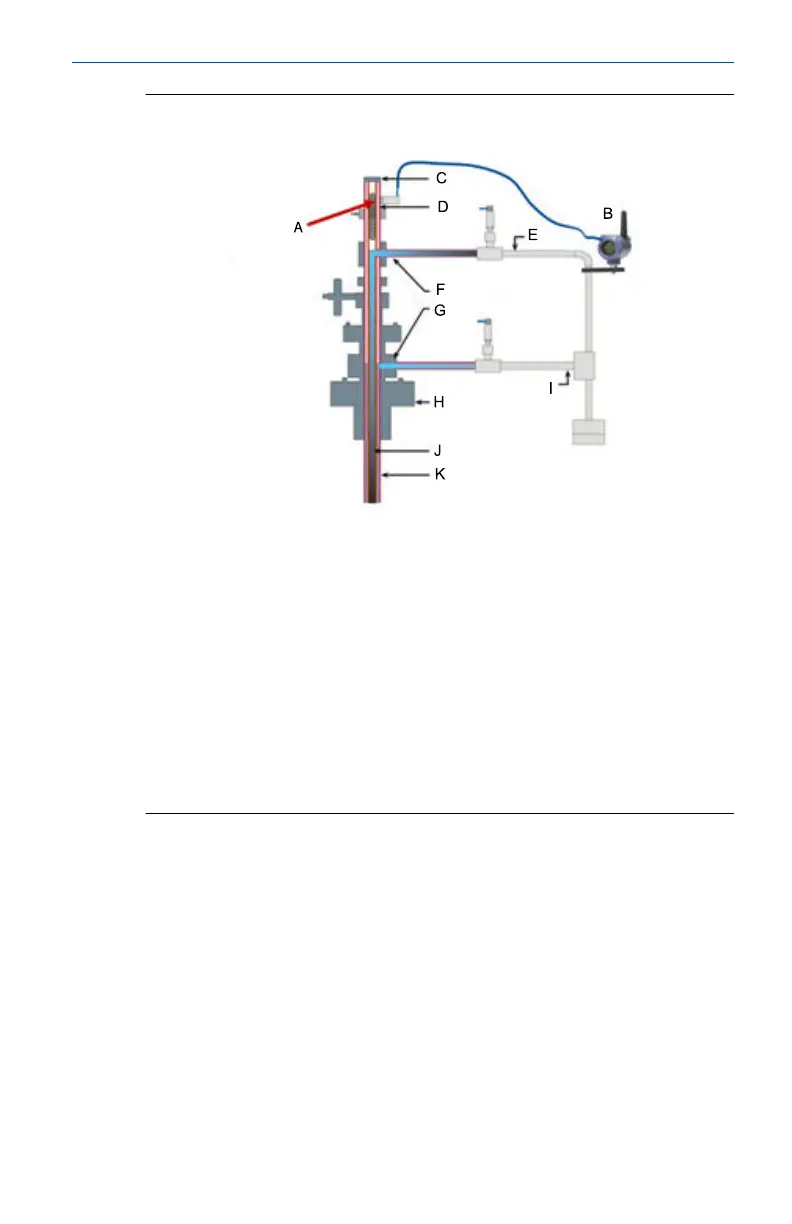

Figure 6-15: Rosemount 702 Transmitter for Plunger Arrival
A. Plunger arrival sensor (ETC Cyclops)
B. Rosemount 702 Plunger Arrival
C. Lubricator
D. Plunger
E. Wastewater
F. Upper lubricator outlet
G. Lower lubricator outlet
H. Well casing
I. Production gas
J. Well casing/production tube
K. Well casing
6.8.1 Terminal block connections
The plunger arrival detection configuration for measurement option code
52 is intended for use with the ETC Cyclops
™
Plunger Arrival Sensor.
