Note
The output switch functionality of the Rosemount 702 Transmitter requires
that the network is managed by a version 4 Wireless Gateway, with v4.3 or
greater firmware installed.

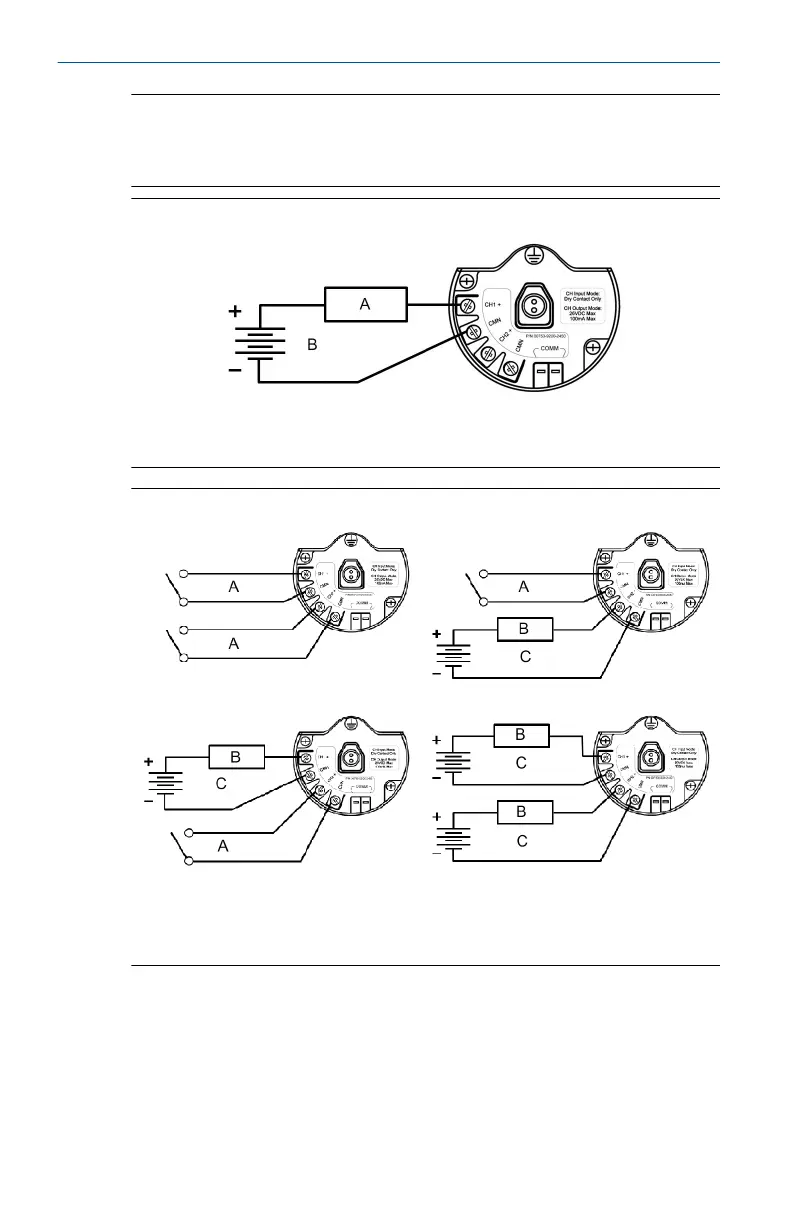

Figure 6-10: Output Circuit Wiring
A. LOAD
B. OUTPUT
Figure 6-11: Possible Configurations for Both Channel 1 and Channel 2
A. INPUT
B. LOAD
C. OUTPUT
6.6
Special considerations for dual output circuits
If both channels are connected to output circuits, it is very important that
the CMN terminal of each circuit be at the same voltage. Employing a
common ground for both output circuits is one way to ensure that both
circuits have CMN terminals at the same voltage.
Quick Start Guide April 2021
28 Emerson.com/Rosemount
