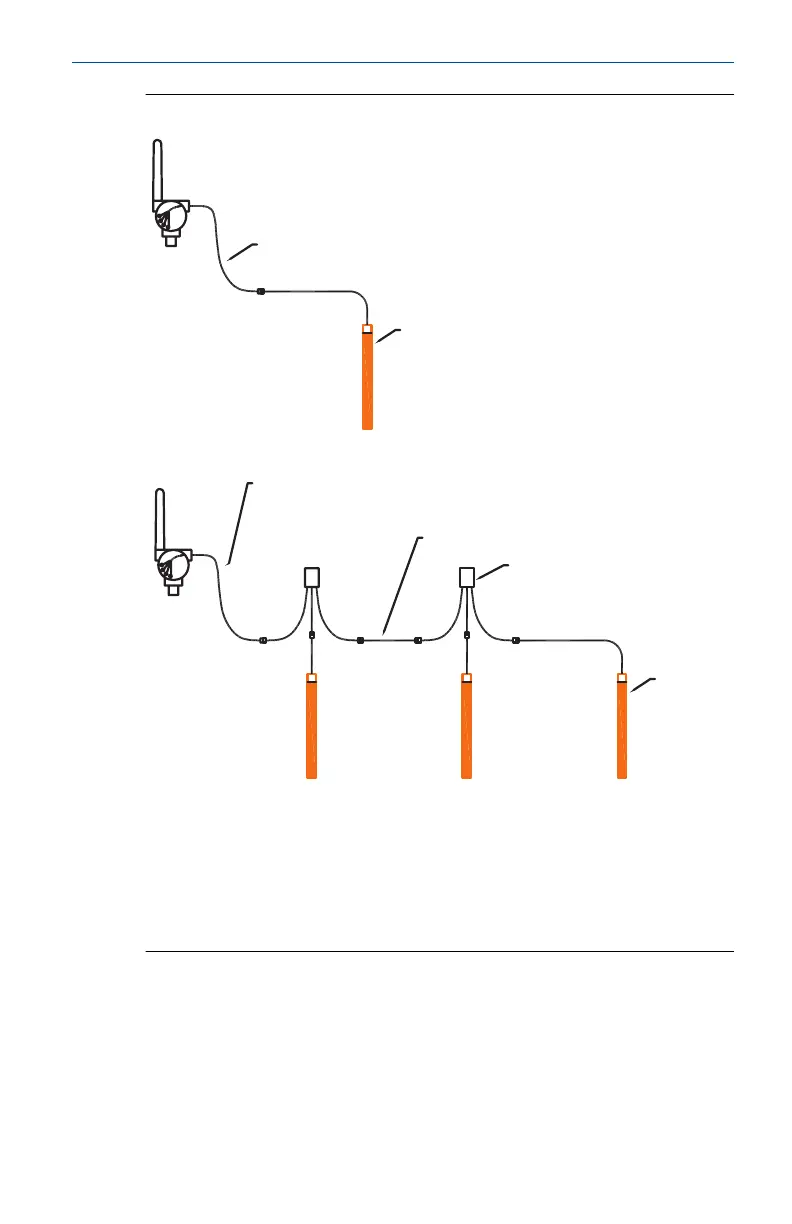

Figure 6-20: Fuel Sensor Wiring
A. TT-MLC-MC-BLK (Leader cable)
B. TT-FFS or TT-FFS-WR (Fast fuel sensor probe)
C. TT-MLC-MC-BLK (Leader cable)
D. TT-MJC-xx-MC-BLK (Optional jumper cable)
E. TT-ZBC-xx-MC-BLK (Branch connector)
F. TT-FFS or TT-FFS-WR (Fast fuel sensor probe)
The Rosemount 702 Wireless Discrete Transmitter can support up to 500
feet of TraceTek hydrocarbon or solvent sensor cable (TT5000 or TT5001
series). The total amount of sensor cable connected to a single Rosemount
702 Transmitter is not to exceed 500 ft. (150 m). However leader cable,
jumper cables (if used) and branch connectors are not included in the 500-
foot limit. See Figure 6-21 for typical configurations.
April 2021 Quick Start Guide
Quick Start Guide 35
