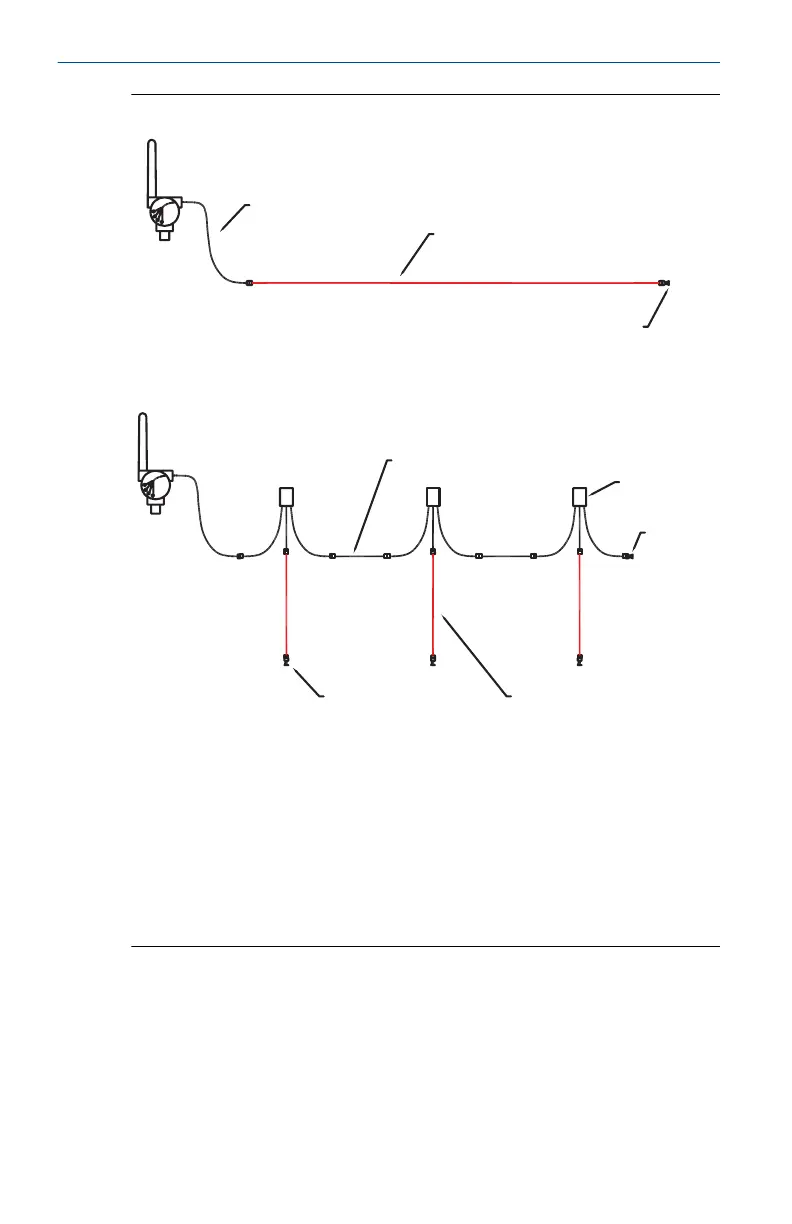

Figure 6-21: Fuel Sensor Cable Wiring
$
'
(
)
+*
%
&
A. TT-MLC-MC-BLK (Leader Cable)
B. TT5000/TT5001 Sensor cable (up to 500 ft.)
C. TT-MET-MC (End termination)
D. TT-MJC-xx-MC-BLK (Optional jumper cable)
E. TT-ZBC-xx-MC-BLK (Branch connector)
F. TT-MET-MC (End termination)
G. TT-MET-MC (End termination)
H. Up to 500-ft. TT5000 or TT5001 sensor cable (Total per 702)
Important notes regarding the use of nVent TraceTek Fast Fuel Sensor and
TraceTek sensing cable:
• nVent TraceTek sensors must be installed as per manufacturer
recommendations.
