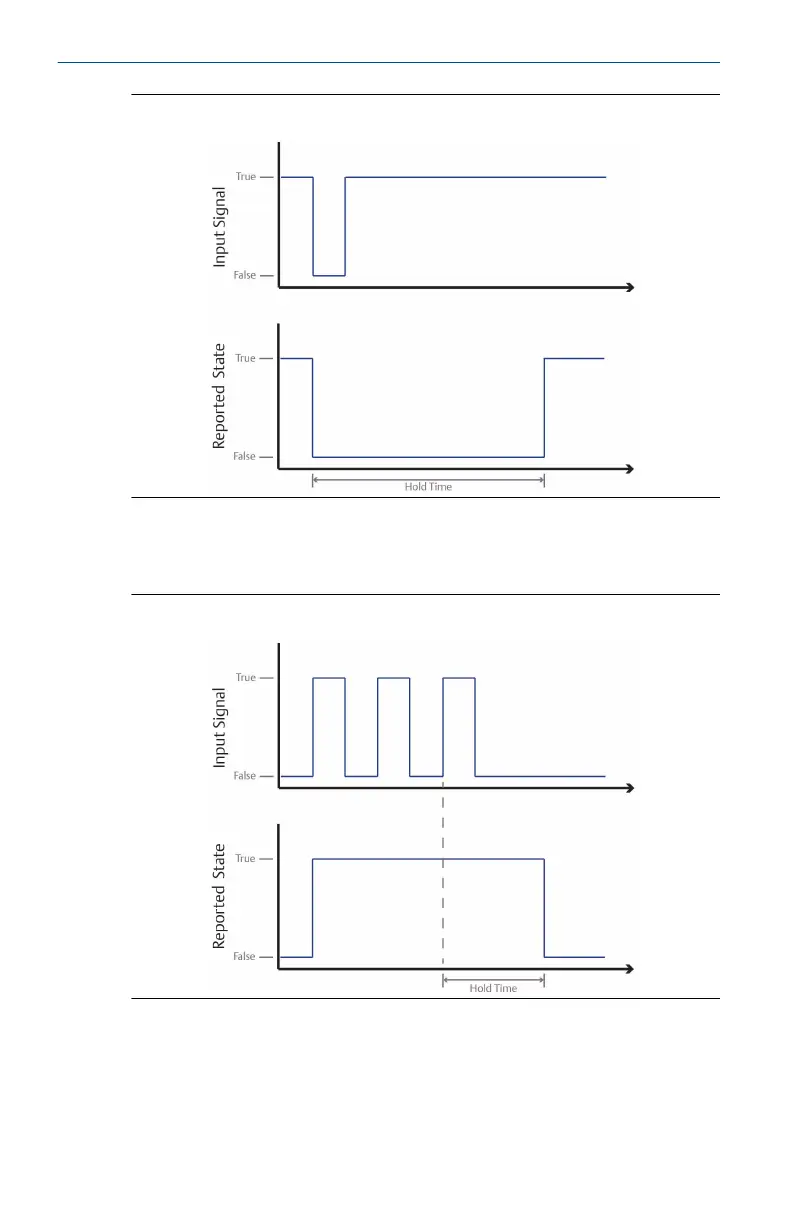

Figure 6-8: Latched Falling
The latch only applies to transitions into the active state. If the input signal
goes inactive and active again before the initial latch hold timer expires, the
latch hold timer will restart from the beginning of the most recent event.
