Table 6-7: Rosemount 702 Transmitter Fast Key Sequence (continued)
Function Fast Key sequence Menu items
Guided setup 2, 1 Join Device to Network,
Configure Update Rate,
Configure Sensor,
Calibrate Sensor,
Configure Display,
Configure Process Alarms
Manual setup 2, 2 Wireless, Process Sensor,
Percent of Range, Device
Temperatures, Device
Information, Device
Display, Other
Wireless 2, 2, 1 Network ID, Join Device to
Network, Configure
Update Rate, Configure
Broadcast Power Level,
Power Mode, Power
Source
Sensor calibration 3, 4, 1 Output configuration,
input configuration

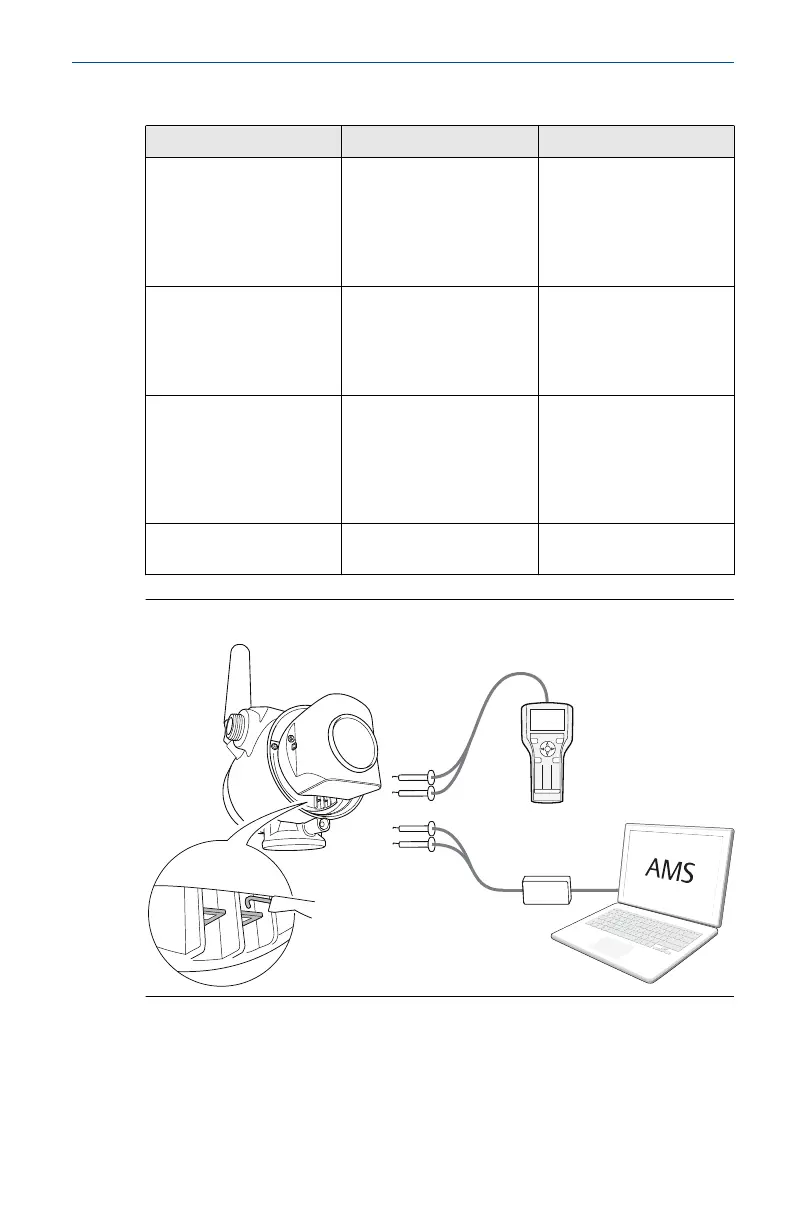

Figure 6-23: Field Communicator Connections
$
&
%
1 2 3
4 5 6
7 8
0
9
