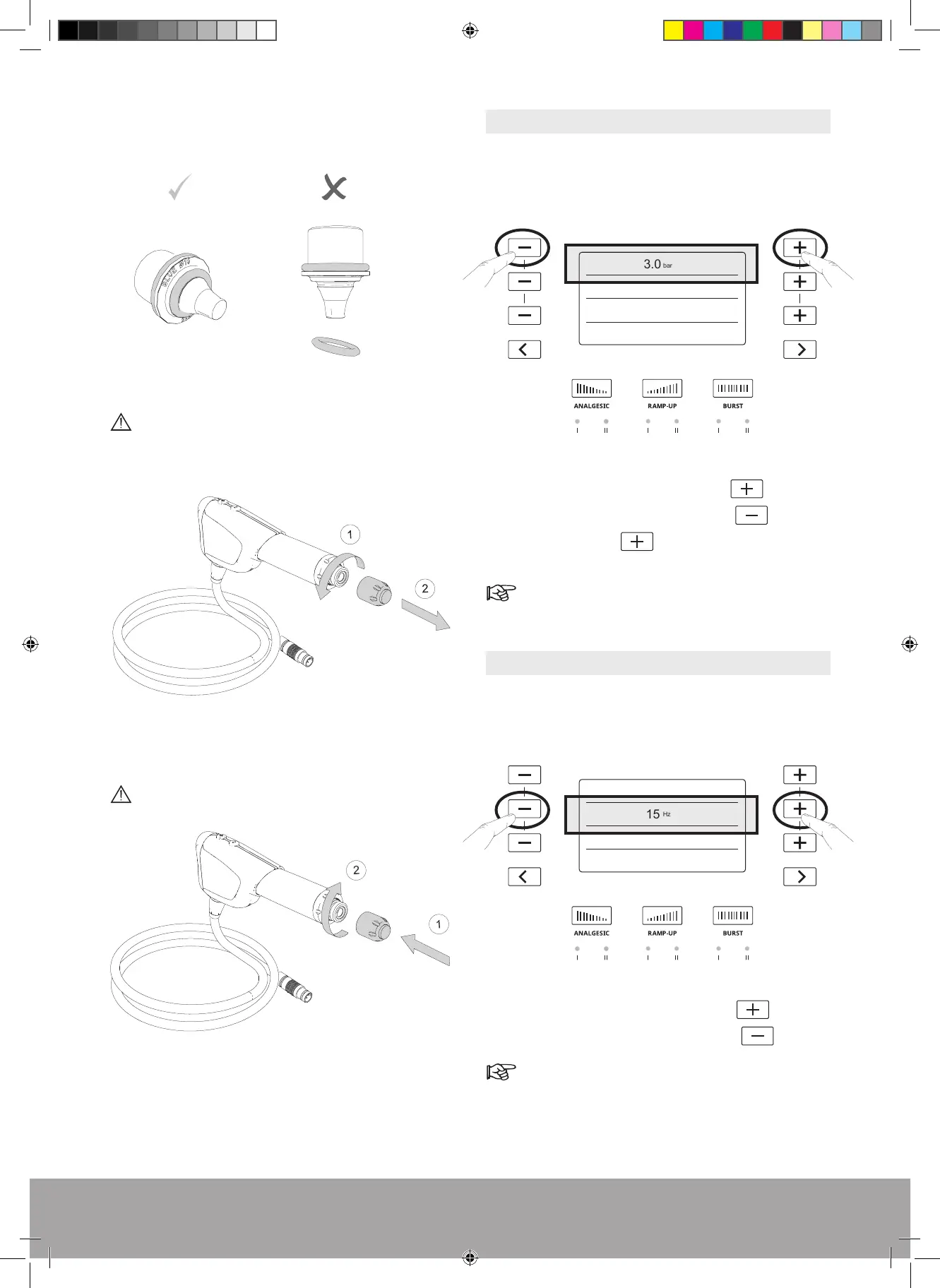

16
1. Ensure the O-ring is still in place with the spare appli-
cator. If the O-ring is disconnected from the applicator,
replace it.
Figure 24
If the O-ring is incorrectly positioned, this will
cause the handpiece to malfunction.
2. Loosen and remove the applicator from the handpiece.
Figure 25
3. Tighten the new applicator onto the handpiece.
Ensure the applicator is completely tightened.
Figure 26
4. The handpiece is ready to use.
4.2.2. Adjusting the Pressure
To adjust the shock wave depth and the energy trans-
mitted into the tissue, increase or decrease the pressure.
The pressure can be selected between 1 and 4 bar, in
increments of 0.1 bar.
bar
Hz
Impulses
3.0
15
2000
SMART PROTOCOL
Figure 27
1. To increase the pressure, press the button.
2. To decrease the pressure, press the button.
3. Press and hold the button to obtain an increment
of 0.2 bar.
It is possible to adjust the pressure during treat-
ment.
4.2.3. Adjusting the Frequency
To adjust the number of impulses per second, increase or
decrease the frequency. The frequency can be selected
between 1 and 25 Hz, in increments of 1 Hz.
bar
Hz
Impulses
3.0
15
2000
SMART PROTOCOL
Figure 28
1. To increase the frequency, press the button.
2. To decrease the frequency, press the button.
It is possible to adjust the frequency during treat-
ment.
