3 Board Description

3.1 Block Diagram

The Mercury+ ST1 base board can be used in combination with any Mercury module. Depending on the

equipped module some features may not be available.

The block diagram of the Mercury+ ST1 base board is shown in Figure 1.

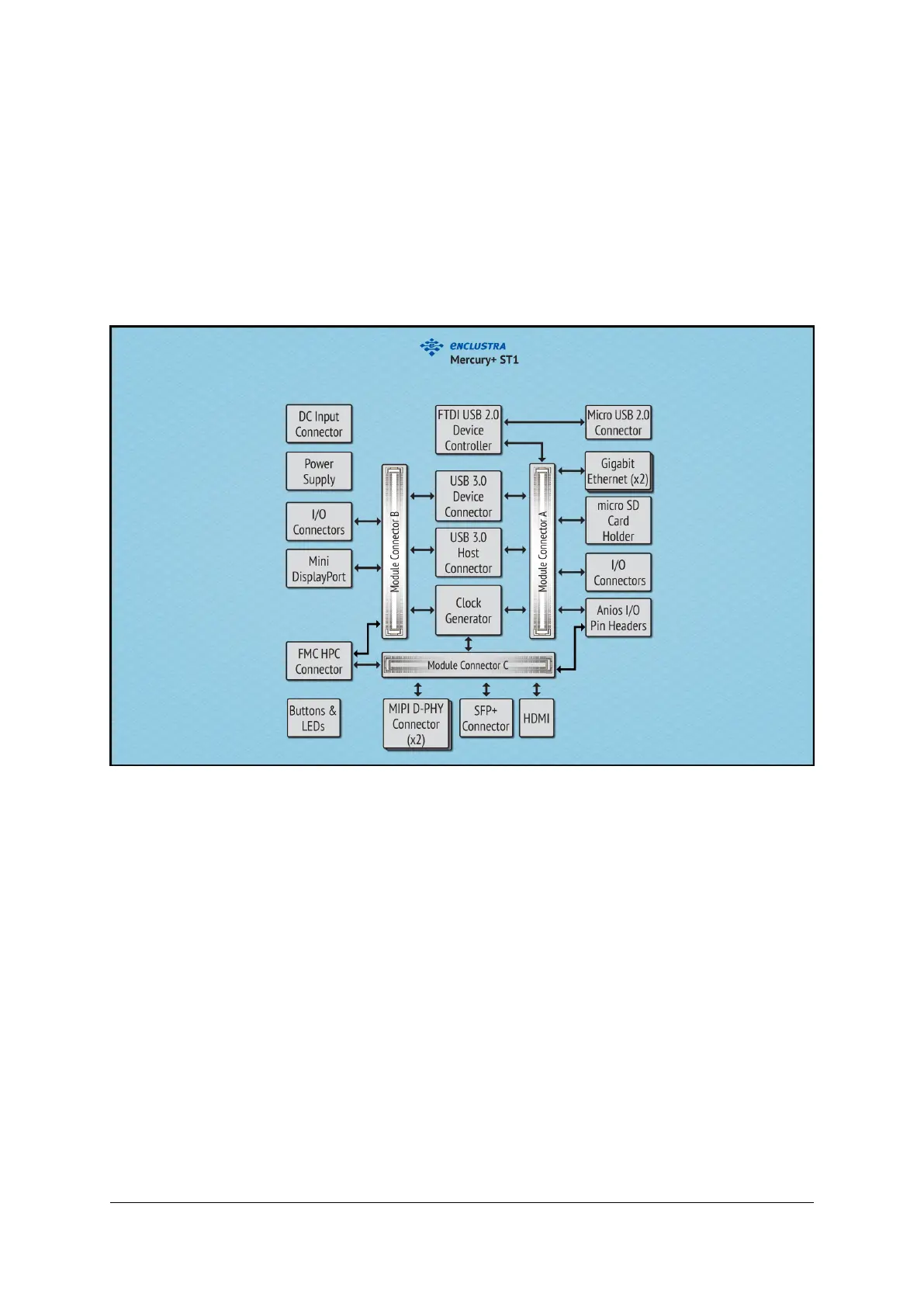

Figure 1: Hardware Block Diagram

D-0000-456-001 9 / 48 Version 02, 23.07.2020
