Cerabar M, Deltabar M, Deltapilot M Installation
Endress+Hauser 15
Pressure measurement in gases
A0028473

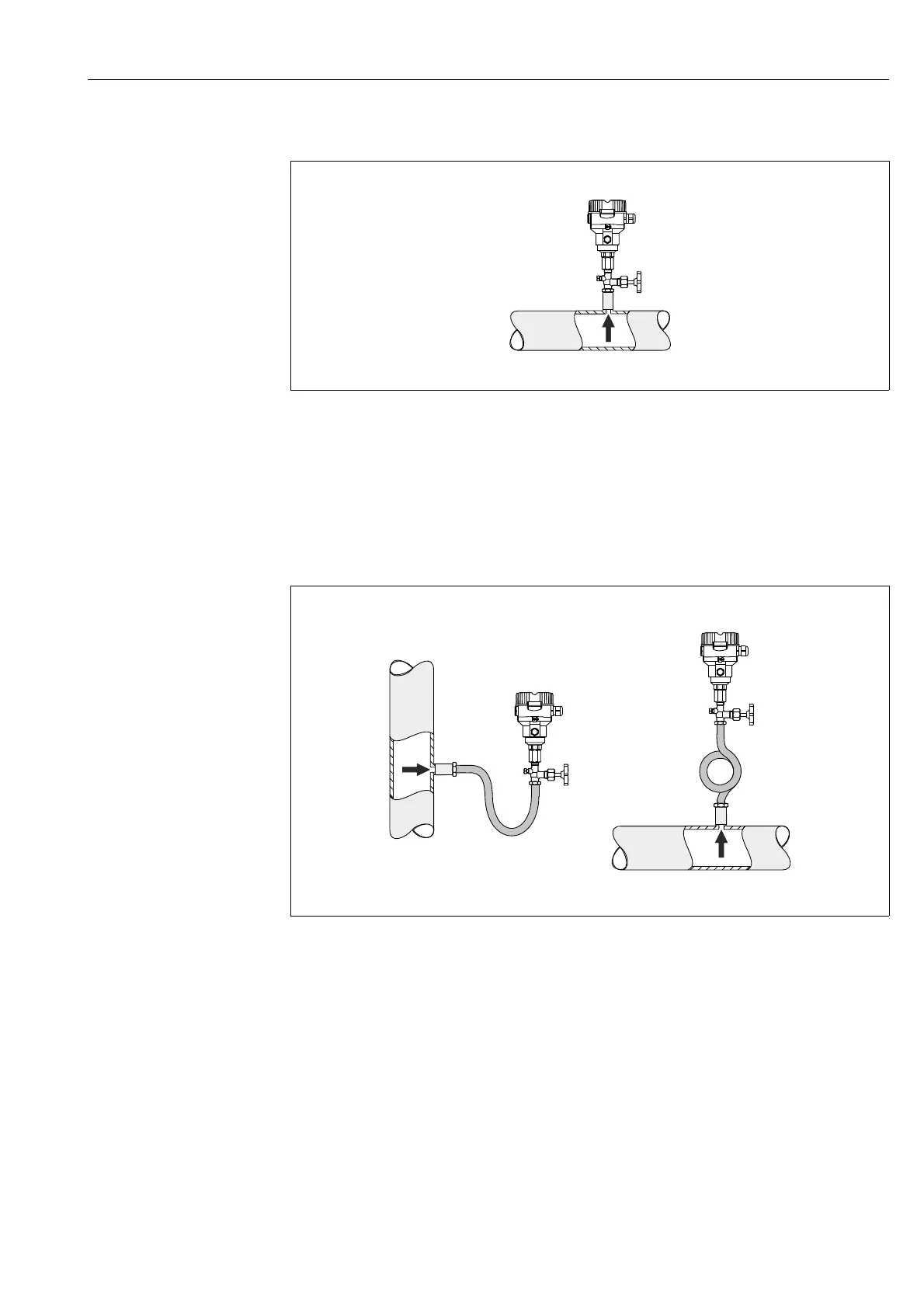

Fig. 5: Measuring arrangement for pressure measurement in gases
1 Cerabar M
2Shutoff device
Mount the Cerabar M with the shutoff device above the tapping point so that any condensate
can flow into the process.
Pressure measurement in steams
A0028474
Fig. 6: Measuring arrangement for pressure measurement in steams
1 Cerabar M
2Shutoff device
3 U-shaped siphon
4 Circular siphon
• Mount Cerabar M with siphon above the tapping point.
• Fill the siphon with liquid before commissioning.
The siphon reduces the temperature to almost the ambient temperature.
1
2
1
1
2
2
3
4
