Installation Cerabar M, Deltabar M, Deltapilot M
16 Endress+Hauser
Pressure measurement in liquids
A0028491

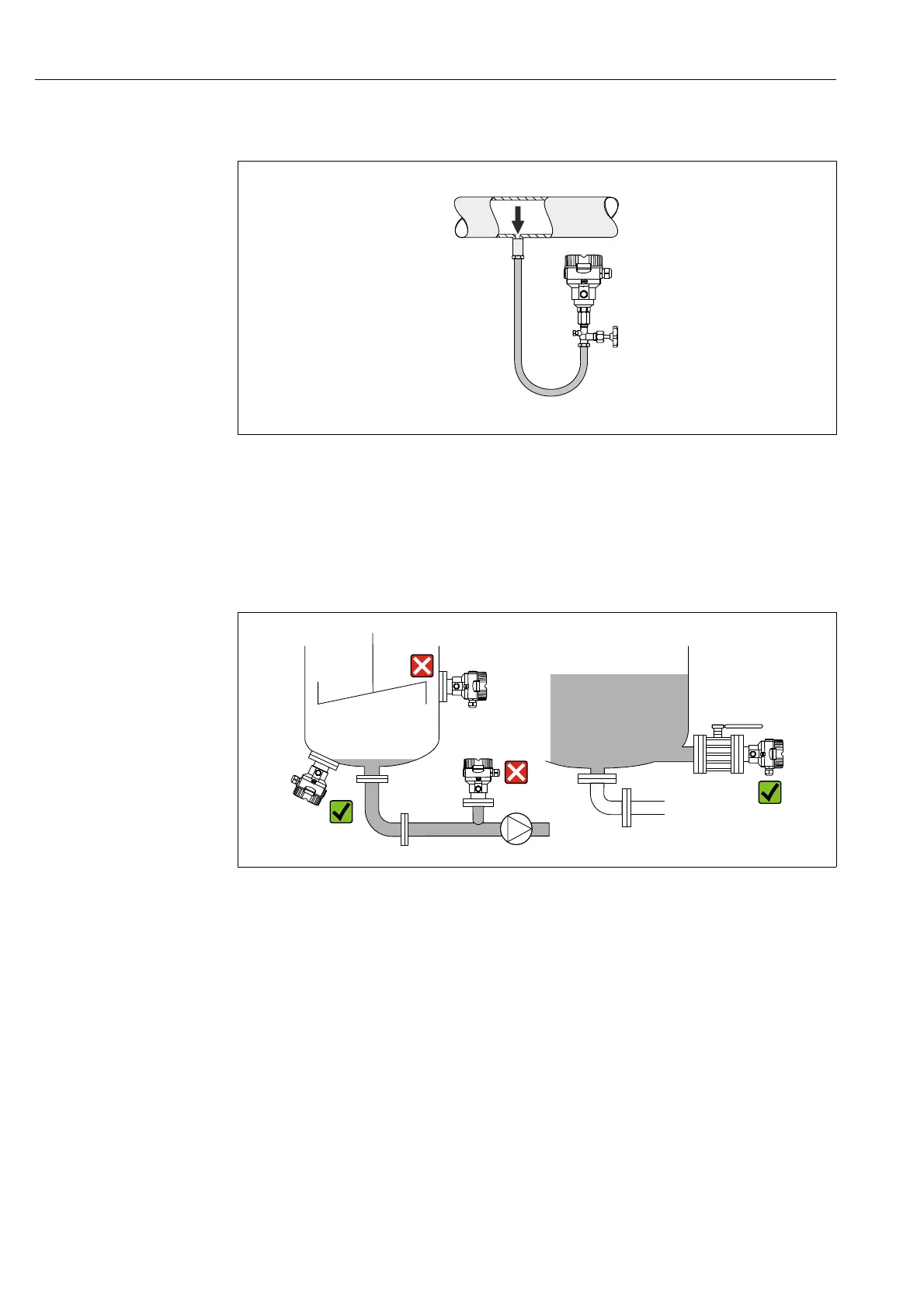

Fig. 7: Measuring arrangement for pressure measurement in liquids
1 Cerabar M
2 Shutoff device
• Mount Cerabar M with shutoff device below or at the same level as the tapping point.
Level measurement
A0028492
Fig. 8: Measuring arrangement for level
• Always install the Cerabar M below the lowest measuring point.
• Do not mount the device in the filling curtain or at a point in the tank which could be
affected by pressure pulses from an agitator.
• Do not mount the device in the suction area of a pump.
• The calibration and functional test can be carried out more easily if you mount the device
downstream of a shutoff device.
