Cerabar M, Deltabar M, Deltapilot M Installation
Endress+Hauser 25
Flow measurement in gases
A0029783

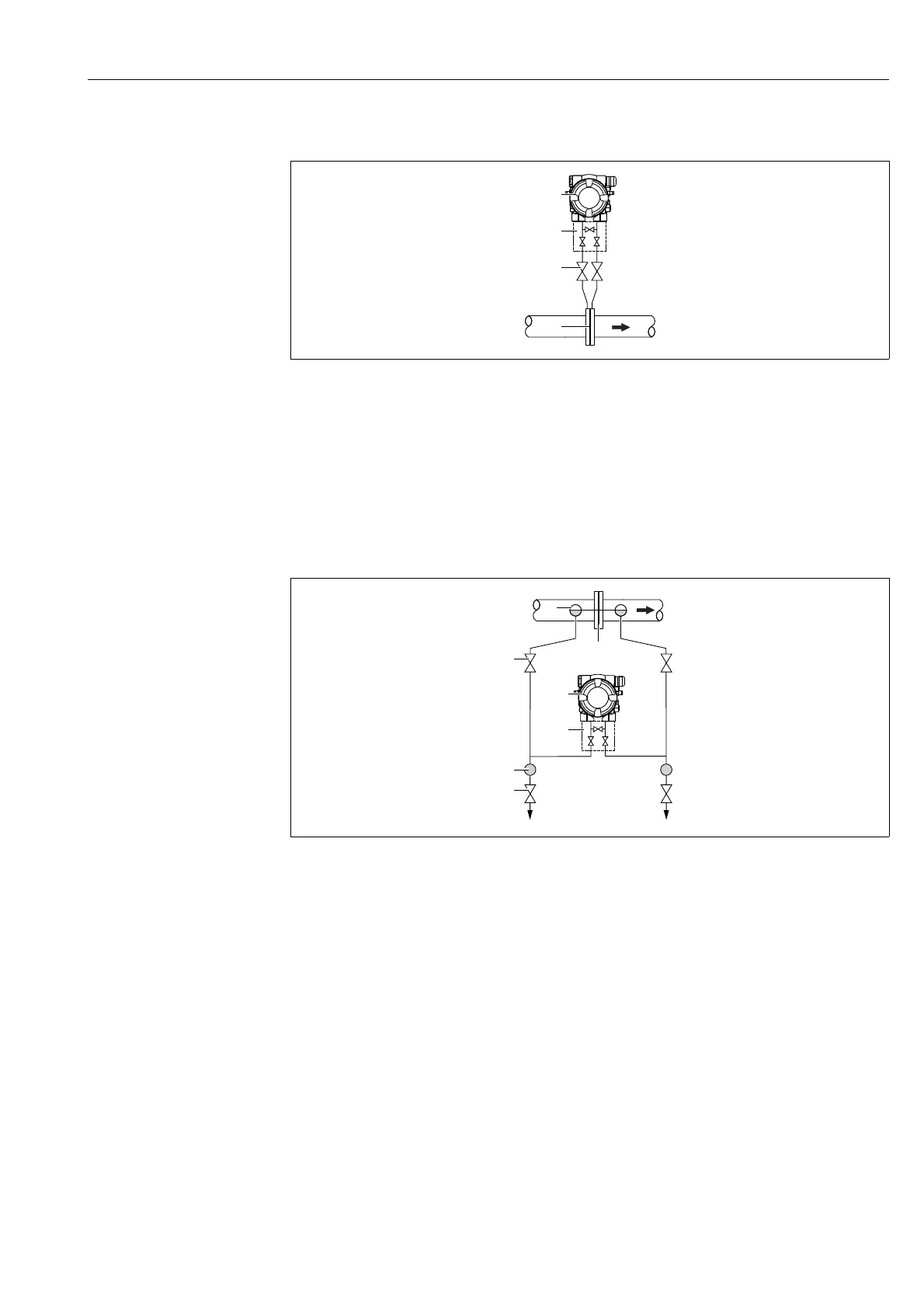

Measuring layout for flow measurement in gases
1 Orifice plate or pitot tube
2 Shut-off valves
3Deltabar M
4 Three-valve manifold
• Mount the Deltabar M above the measuring point so that the condensate which may be
present, can run off into the process piping.
Flow measurement in steam
A0029784
Measuring layout for flow measurement in steam
1 Orifice plate or pitot tube
2 Condensate traps
3 Shut-off valves
4 Deltabar M
5 Three-valve manifold
6Separator
7 Drain valves
• Mount the Deltabar M below the measuring point.
• Mount the condensate traps at the same level as the tapping points and at the same
distance to the Deltabar M.
• Prior to commissioning, fill the impulse piping to the height of the condensate traps.
+
–
3
4
2
1
+
–
1
4
5
3
2
7
6
