Endress+Hauser Cerabar M - Page 26

Installation Cerabar M, Deltabar M, Deltapilot M
26 Endress+Hauser
Flow measurement in liquids
A0029785

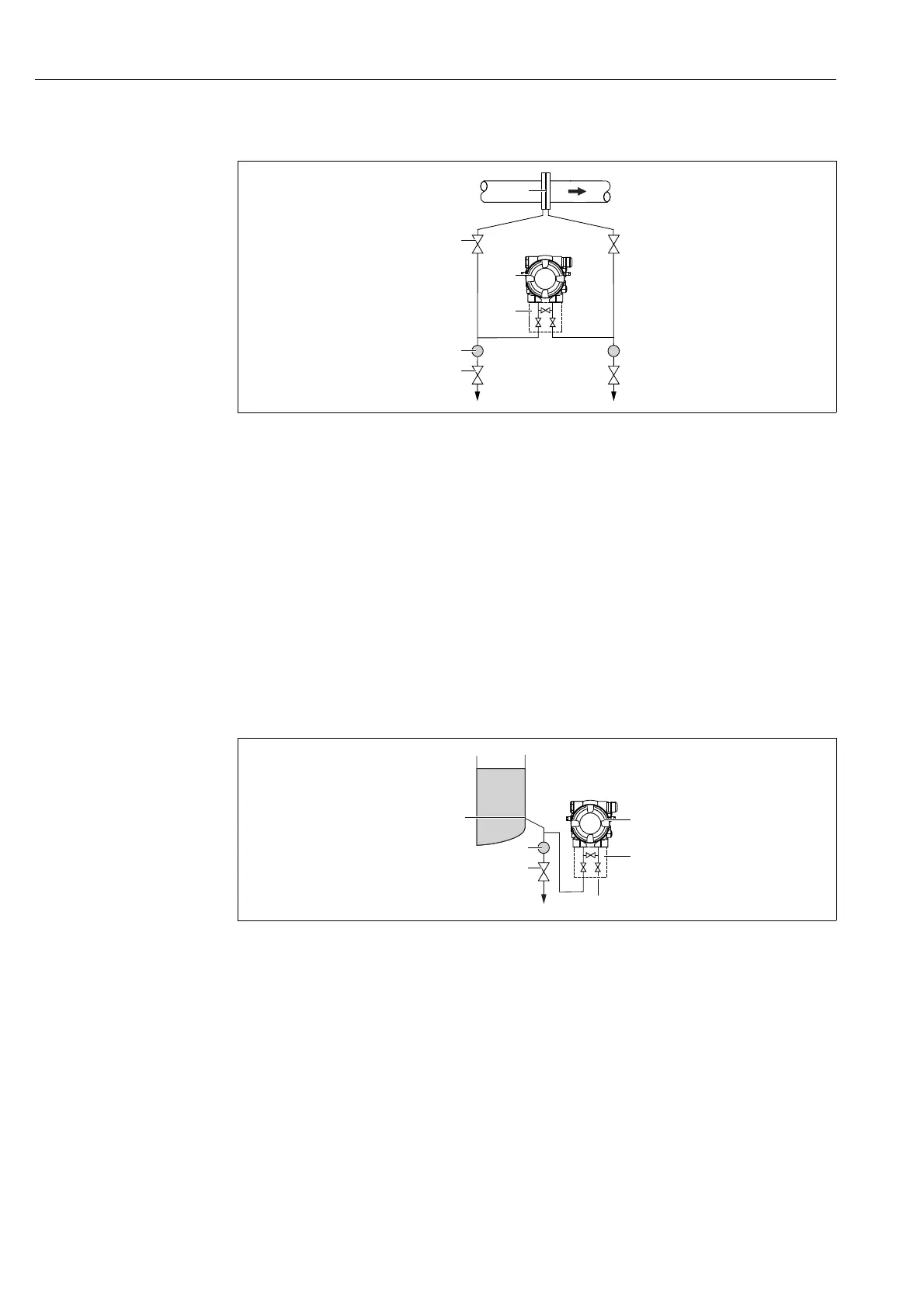

Measuring layout for flow measurement in liquids
1 Orifice plate or pitot tube
2 Shut-off valves
3Deltabar M
4 Three-valve manifold
5Separator
6 Drain valves
• Mount the Deltabar M below the measuring point so that the impulse piping is always
filled with liquid and gas bubbles can run back into the process piping.
• When measuring in media with solid parts, such as dirty liquids, installing separators and
drain valves is useful for capturing and removing sediment.
Installation position for level measurement
Level measurement in an open container
A0029787
Measuring layout for level measurement in open containers
1 The low-pressure side is open to atmospheric pressure
2Deltabar M
3 Three-valve manifold
4Separator
5 Drain valve
• Mount the Deltabar M below the lower measuring connection so that the impulse piping
is always filled with liquid.
• The low-pressure side is open to atmospheric pressure.
• When measuring in media with solid parts, such as dirty liquids, installing separators and
drain valves is useful for capturing and removing sediment.
+
–
1
3
4
2
6
5
–
+
min.
p
atm
5
4
p
atm
2
3
1
