Cerabar M, Deltabar M, Deltapilot M Installation
Endress+Hauser 27

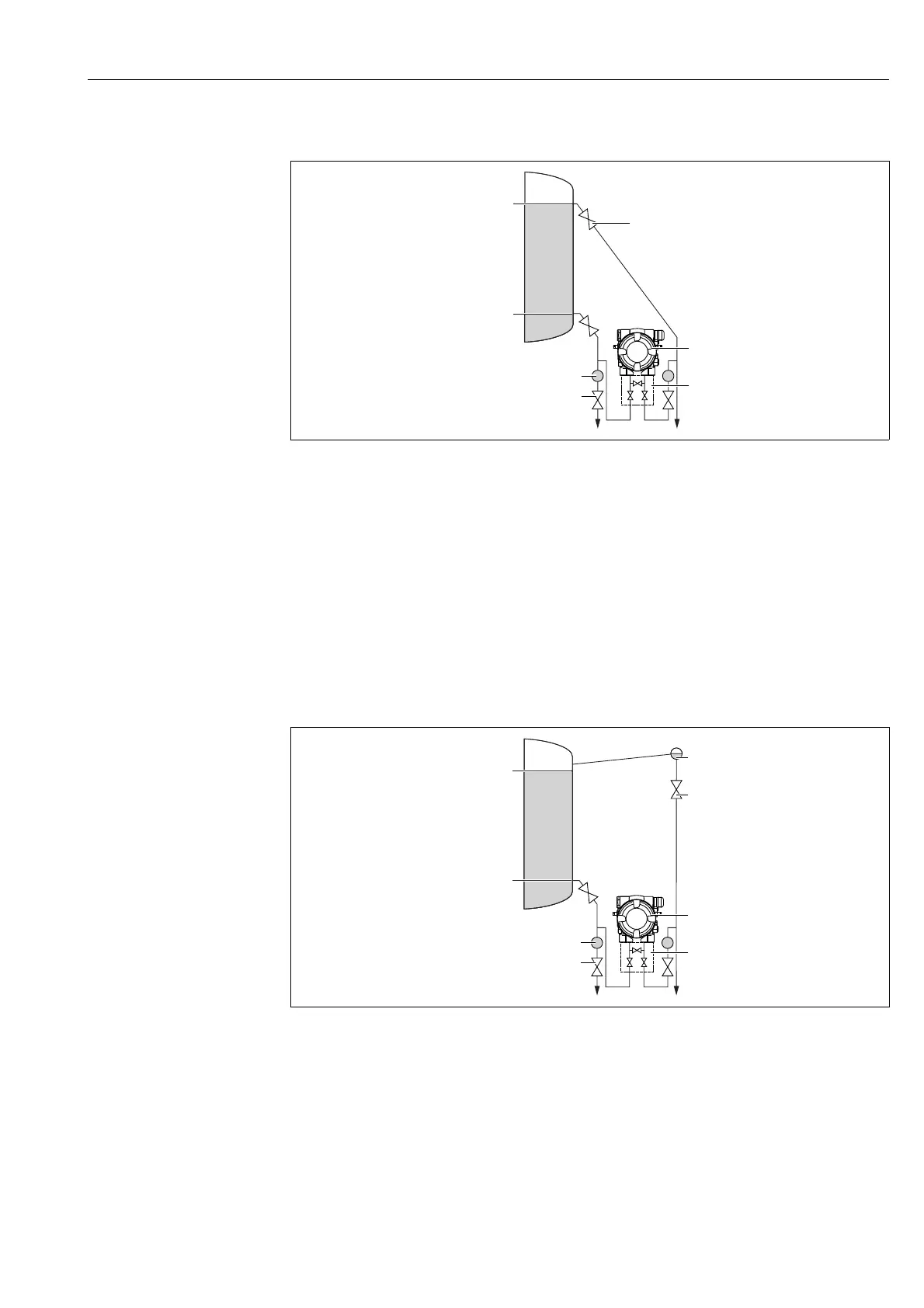

Level measurement in a closed container
A0029790
Measuring layout for level measurement in a closed container
1 Shut-off valves
2 Deltabar M
3 Three-valve manifold
4Separator
5 Drain valves
• Mount the Deltabar M below the lower measuring connection so that the impulse piping
is always filled with liquid.
• Always connect the low-pressure side above the maximum level.
• When measuring in media with solid parts, such as dirty liquids, installing separators and
drain valves is useful for capturing and removing sediment.
Level measurement in a closed container with superimposed steam
A0029791
Measuring layout for level measurement in a container with superimposed steam
1 Condensate trap
2 Shut-off valves
3 Deltabar M
4 Three-valve manifold
5Separator
6 Drain valves
• Mount the Deltabar M below the lower measuring connection so that the impulse piping
is always filled with liquid.
• Always connect the low-pressure side above the maximum level.
• A condensate trap ensures constant pressure on the low-pressure side.
–
+
min.
5
4
2
1
3
–
max.
–
+
min.
5
6
3
4
–
max.
2
1
