Installation Cerabar M, Deltabar M, Deltapilot M
28 Endress+Hauser
• When measuring in media with solid parts, such as dirty liquids, installing separators and
drain valves is useful for capturing and removing sediment.

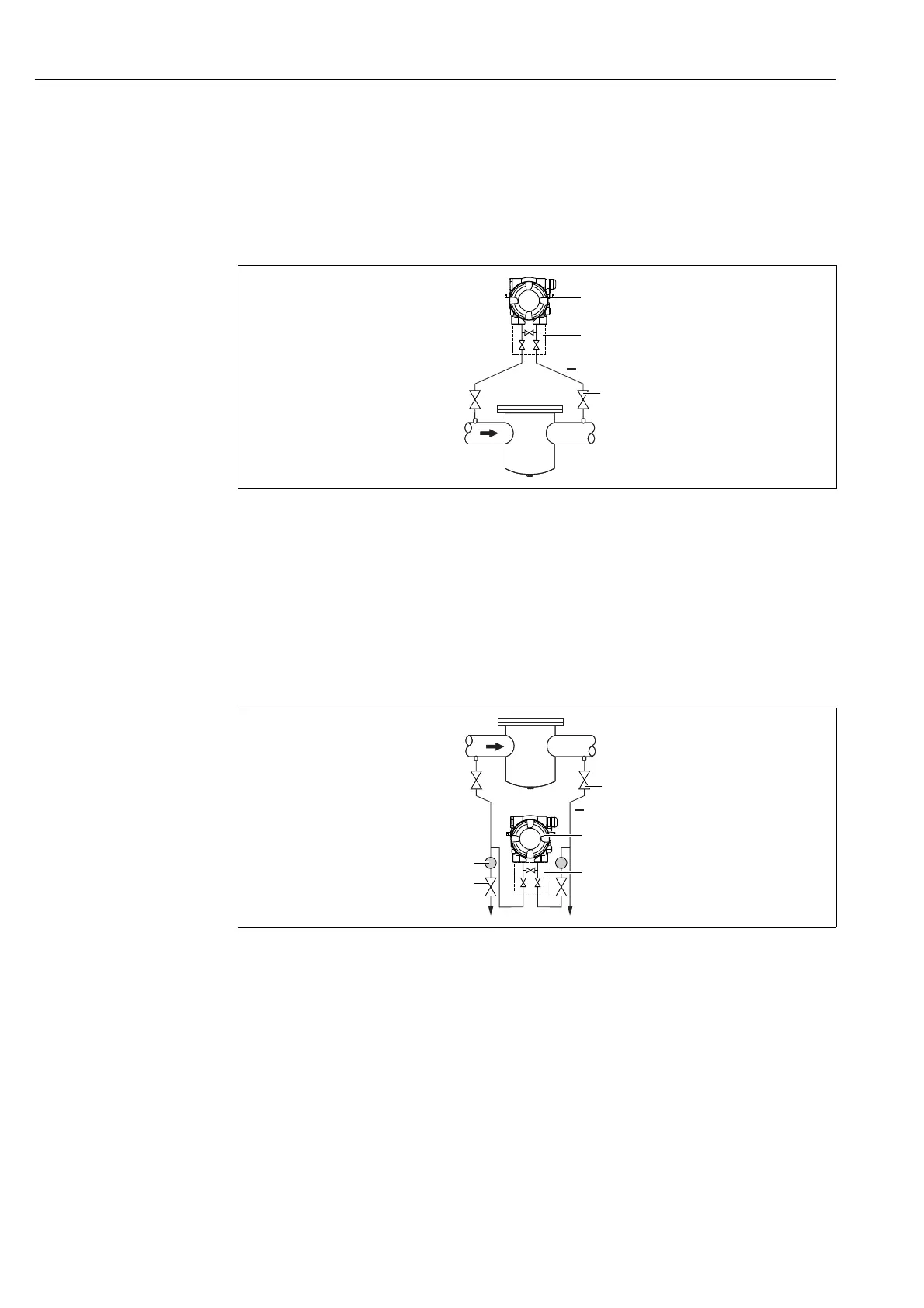

Installation position for differential pressure measurement
Differential pressure measurement in gases and steam
A0029792
Measuring layout for differential pressure measurement in gases and steam
1Deltabar M
2 Three-valve manifold
3 Shut-off valves
4 e.g. filter
• Mount the Deltabar M above the measuring point so that the condensate which may be
present, can run off into the process piping.
Differential pressure measurement in liquids
A0029798
Measuring layout for differential pressure measurement in liquids
1 e.g. filter
2 Shut-off valves
3Deltabar M
4 Three-valve manifold
5Separator
6 Drain valves
• Mount the Deltabar M below the measuring point so that the impulse piping is always
filled with liquid and gas bubbles can run back into the process piping.
• When measuring in media with solid parts, such as dirty liquids, installing separators and
drain valves is useful for capturing and removing sediment.
+
1
2
3
4
1
5
6
3
4
+
2
