Cerabar M, Deltabar M, Deltapilot M Installation
Endress+Hauser 29
4.6.2 Wall and pipe-mounting (option)
Endress+Hauser offers the following mounting brackets for installing the device on pipes or
walls:
When using a valve block, the block's dimensions must be taken into account.
Bracket for wall and pipe mounting including retaining bracket for pipe mounting and two
nuts.
material of the screws used to secure the device depend on the order code.
Technical data (e.g. dimensions or order numbers for screws) see accessory document
SD01553P/00/EN.
Please note the following when mounting:
• To prevent the mounting screws from scoring, lubricate them with a multi-purpose grease
prior to mounting.
• In the case of pipe mounting, the nuts on the bracket must be tightened uniformly with a
torque of at least 30 Nm (22.13 lbf ft).
• For installation purposes, only use the screws with item number (2) (see the following
diagram).

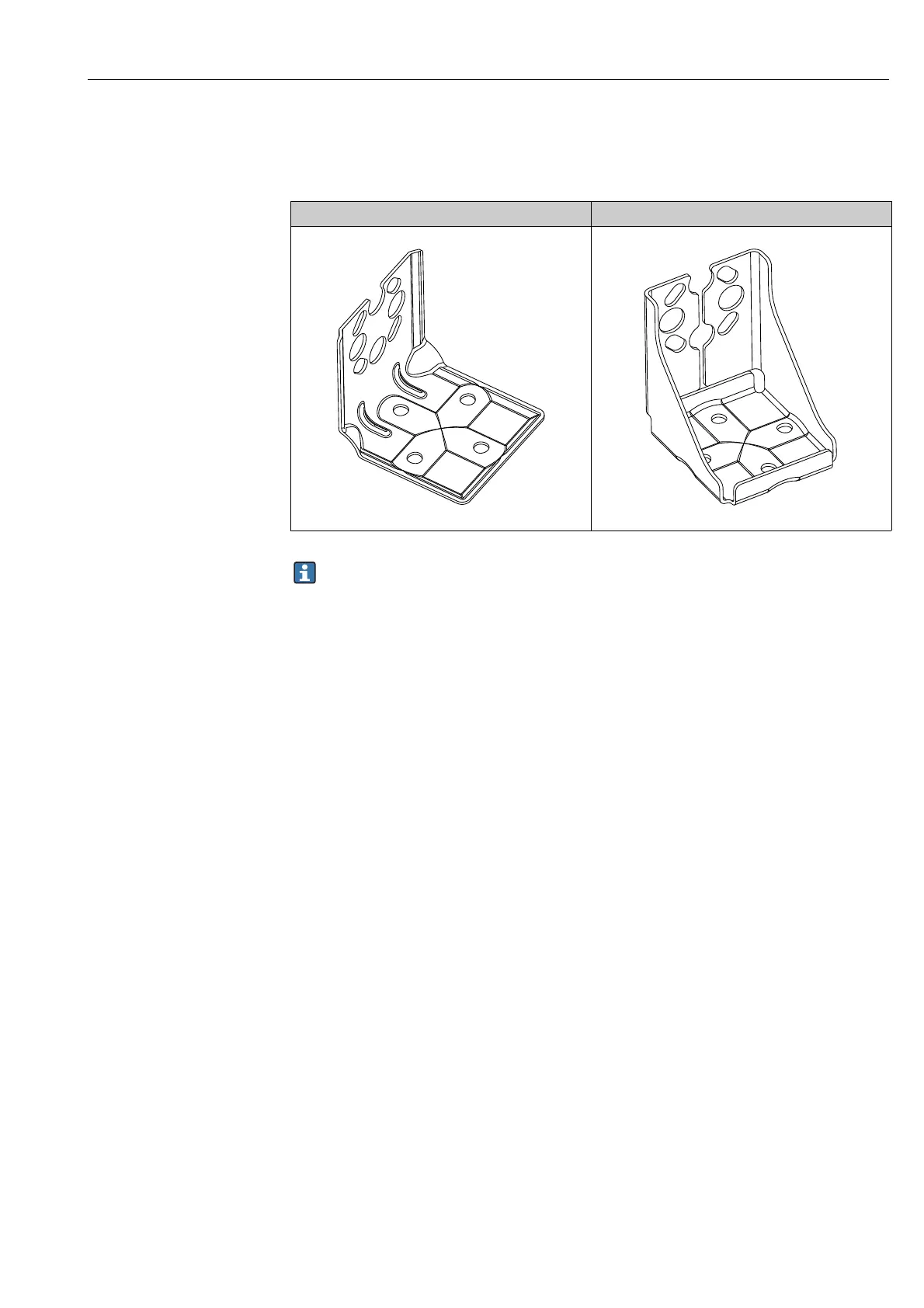

Standard design Heavy duty design
A0031326 A0031327
