Operation Cerabar M, Deltabar M, Deltapilot M
50 Endress+Hauser
A0028500
Functions:
• 8-digit measured value display including sign and decimal point.
• Bar graph as graphic display of the current pressure measured value in relation to the set
pressure range in the Pressure Transducer Block. The pressure range is set by means of the
SCALE_IN parameter (via FF configuration program, not via onsite display).
•Three keys for operation.
• Simple and complete menu guidance as parameters are split into several levels and groups.
• Each parameter is given a 3-digit parameter code for easy navigation.
• Possibility of configuring the display to suit individual requirements and preferences, such
as language, alternating display, display of other measured values such as sensor
temperature, contrast setting.
• Comprehensive diagnostic functions (fault and warning message etc.).
A0030013

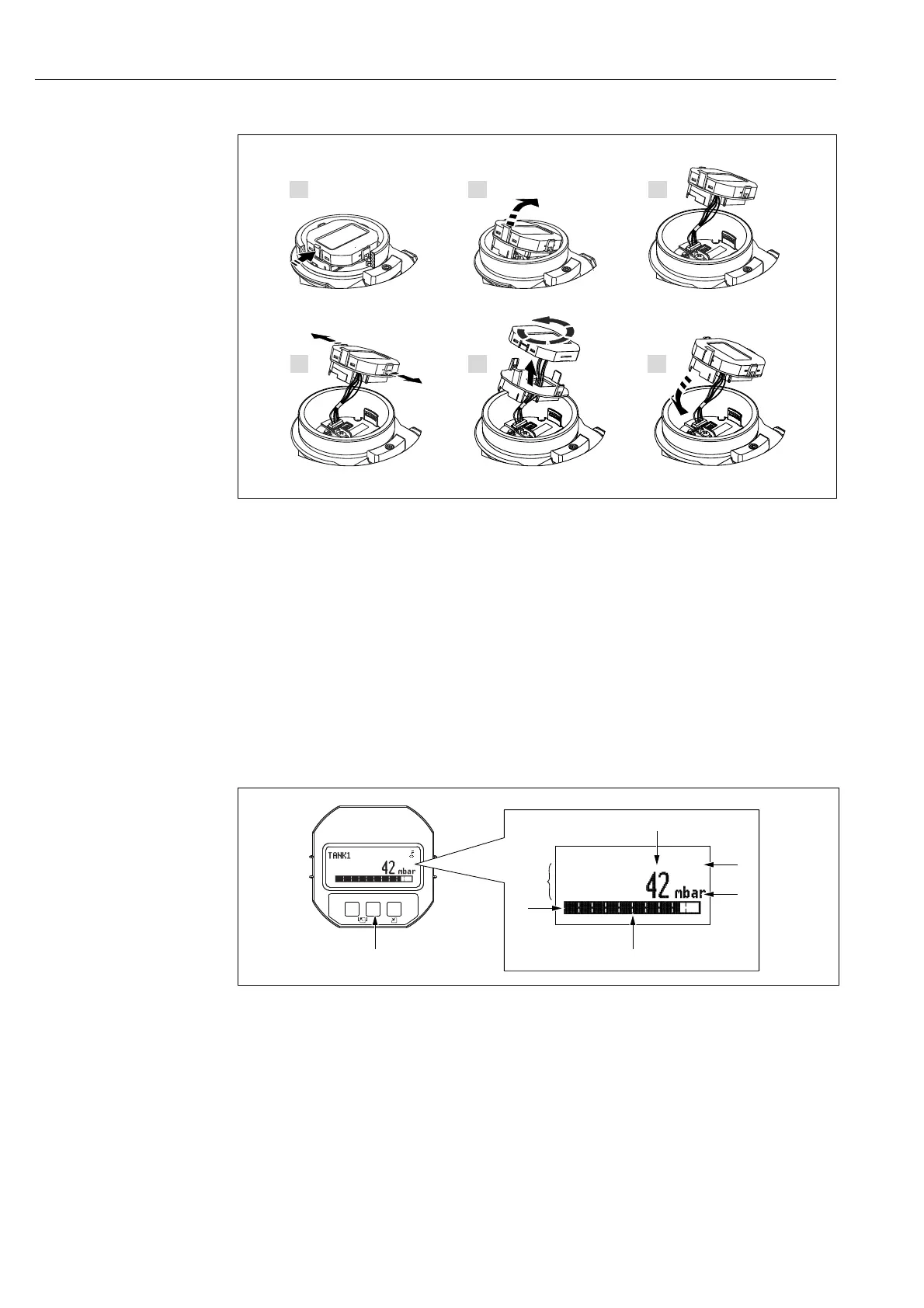

Fig. 25: Display
1 Main line
2Value
3Symbol
4Unit
5Bar graph
6 Information line
7Operating keys
1.
2.
3.
4.
5.
6.
E
+
–
F
1
6
2
57
3
4
