Commissioning with an operating menu (onsite display/FieldCare) Cerabar M, Deltabar M, Deltapilot M
86 Endress+Hauser

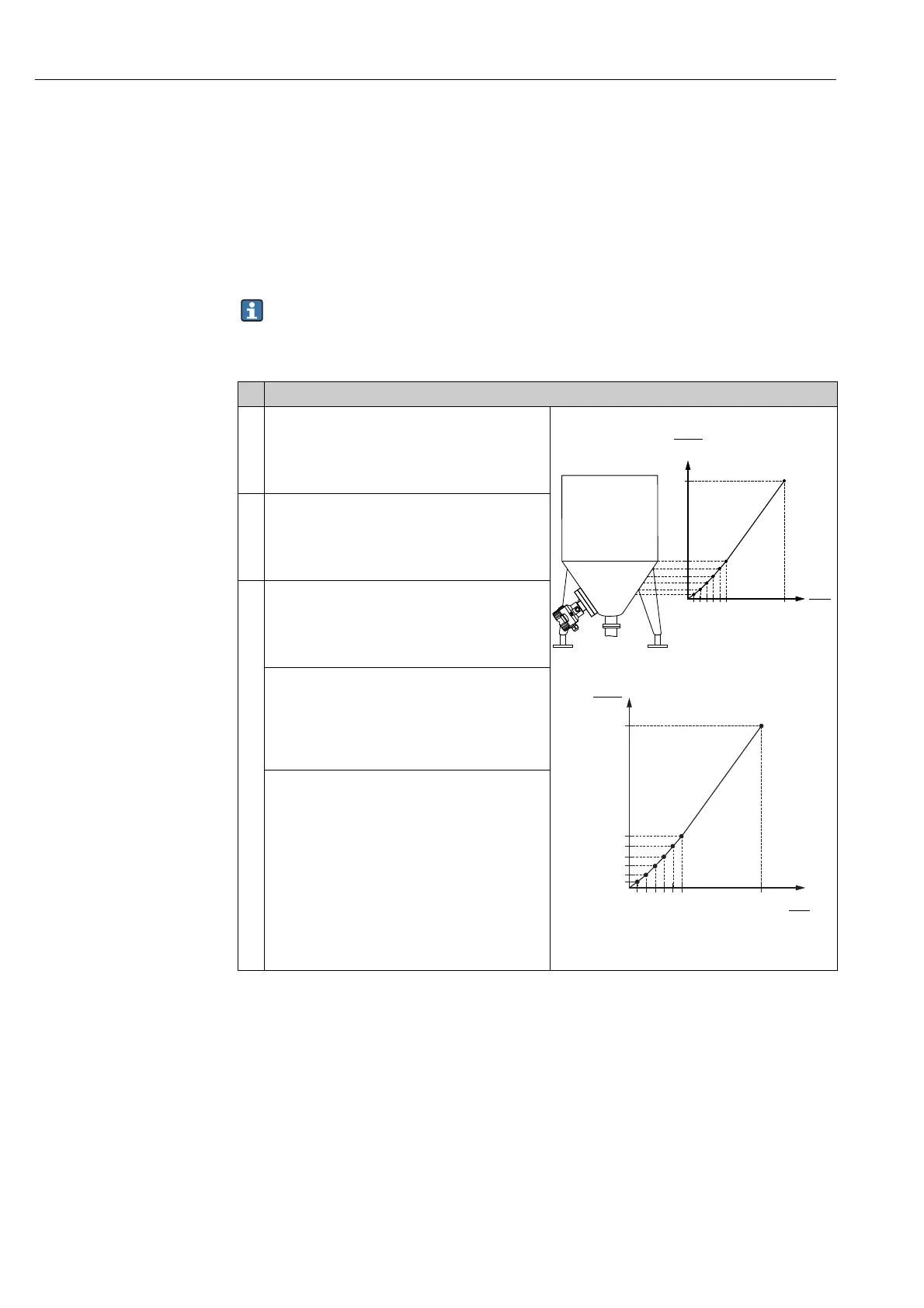

8.5.2 Manual entry of the linearization table via the operating tool
Example:
In this example, the volume in a tank with a conical outlet should be measured in m
3
.
Prerequisite:
• This is a theoretical calibration, i.e. the points for the linearization table are known.
• The "Level" operating mode has been selected.
• A level calibration has been performed.
For a description of the parameters mentioned,  Chap. 8.11 "Description of parameters".
Description
1 Select the "Manual entry" option via the "Lin. mode
(037)" parameter.
Menu path: Setup Extended Setup 
Linearization Lin. mode (037)
A0030032
2 Select via the "Unit after lin. (038)" parameter, e.g.
m
3
.
Menu path: Setup Extended Setup 
Linearization Unit after lin. (038)
3 Enter the number of the point in the table via the
"Line numb. (039)" parameter.
Menu path: Setup Extended Setup 
Linearization Line numb. (039)
The level is entered via the "X-value (040) (manual
entry)" parameter, here 0 m for example. Confirm
your entry.
Menu path: Setup Extended Setup 
Linearization X-value (040) (manual entry)
Using the "Y-value (041) (manual entry/in semi-
auto. entry)" parameter, enter the associated volume
value, here 0 m
3
for example, and confirm the value.
Menu path: Setup Extended Setup 
Linearization Y-value (041) (manual entry/in
semi-auto. entry)
h
[m]
0
0 3.0
h
[m]
3.5
0
0 3.0
V
[m
3
]
V
[m
3
]
