Deltabar PMD75B PROFINET with Ethernet-APL Mounting
Endress+Hauser 21

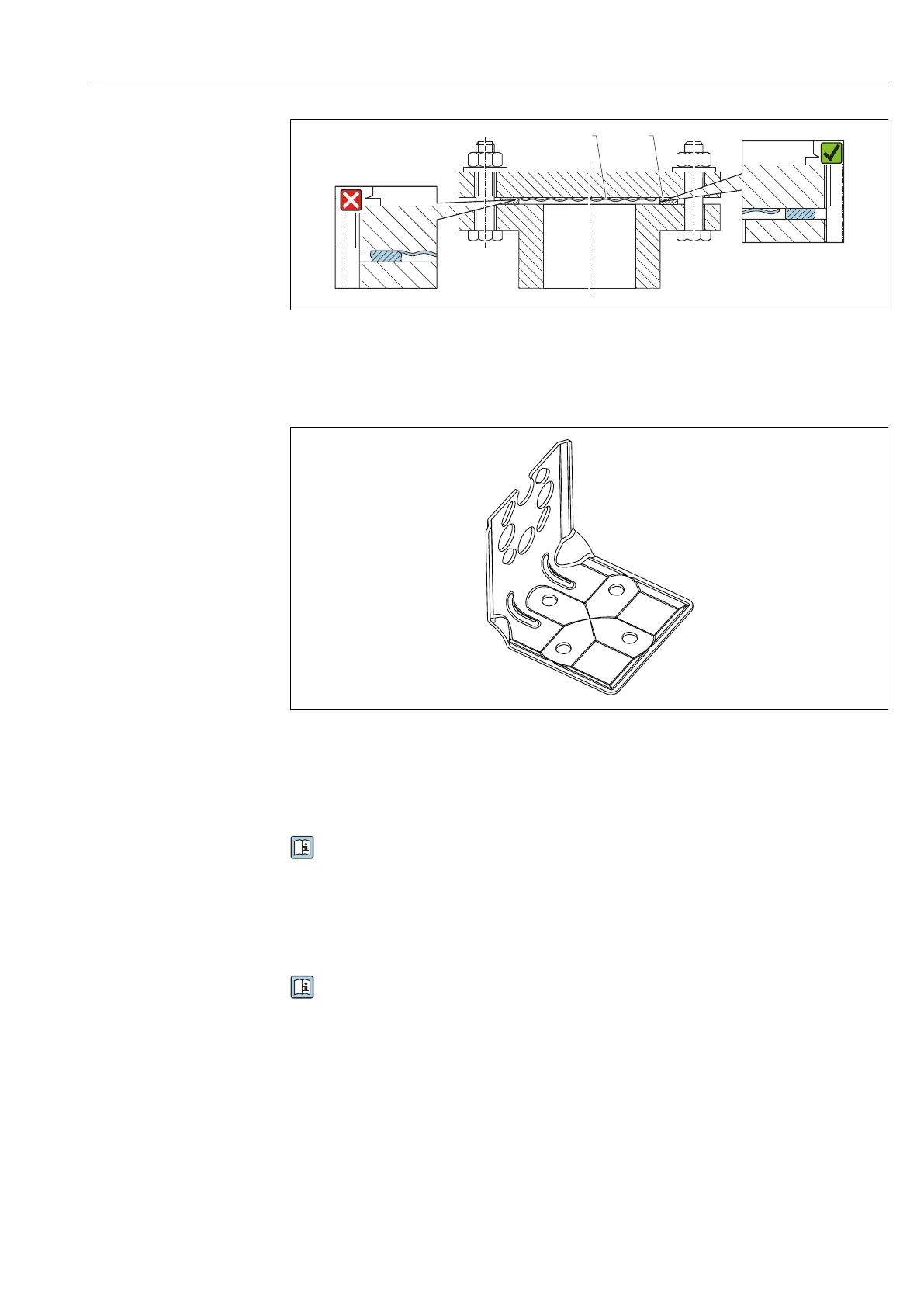

1 2
A0017743
1 Membrane
2 Seal
5.2.7 Wall and pipe mounting
A0031326
• If a valve manifold is used, its dimensions should also be taken into consideration
• Bracket for wall and pipe mounting including retaining bracket for pipe mounting and
two nuts
• The material of the screws used to secure the device depends on the order code
For technical data (e.g. materials, dimensions or order numbers), see the accessory
document SD01553P.
5.2.8 Wall and pipe mounting with a manifold (optional)
• Mount the device on a shutoff device, e.g. manifold or shutoff valve
• Use the bracket provided. This make device removal easier.
For technical data (e.g. materials, dimensions or order numbers), see the accessory
document SD01553P.
5.2.9 Mounting bracket for separate housing
The separate housing can be mounted on walls or pipes (for pipes with a diameter of 1 ¼"
to 2") using the mounting bracket.
