Endress+Hauser Deltabar PMD75B User Manual

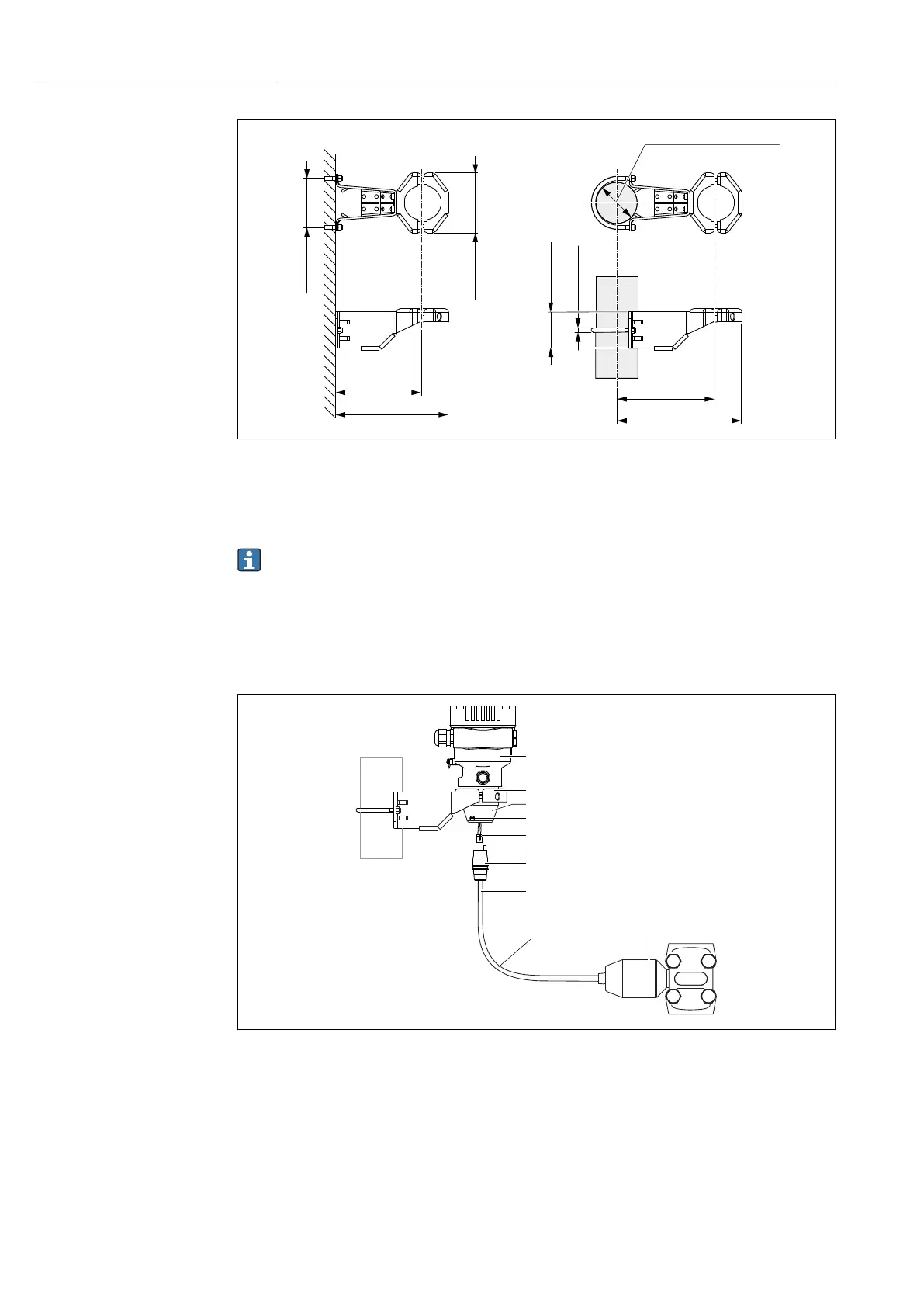

Mounting Deltabar PMD75B PROFINET with Ethernet-APL
22 Endress+Hauser
122 (4.8)
52 (2.05)
86 (3.39)
70 (2.76)
140 (5.51)
158 (6.22)
175 (6.89)
ø6 (0.24)
ø42...60 (1.65...2.36)
A0028493
Unit of measurement mm (in)
Ordering information:
Can be ordered as a separate accessory, part number 71102216
The mounting bracket is included in the delivery if you order the device with a
separate housing.
When mounting on a pipe, tighten the nuts on the bracket uniformly with a torque of at
least 5 Nm (3.69 lbf ft).
5.2.10 Assembling and mounting the separate housing
7
r ³ 120 (4.72)
2
1
6
6
5
4
3
1
A0038725
Unit of measurement mm (in)
1 Housing mounted with housing adapter, included
2 Mounting bracket provided, suitable for pipe and wall mounting (for pipe diameters from 1 ¼" to 2")
3 Locking screw
4 Plug
5 Pressure compensation
6 Cable with connection jack
7 In the separate housing version, the measuring cell is delivered with the process connection and cable already
mounted.
