Deltabar PMD75B PROFINET with Ethernet-APL Mounting
Endress+Hauser 23
Assembly and mounting
1. Insert the connector (item 4) into the corresponding connection jack of the cable
(item 6).
2. Insert the cable with the socket (item 6) into the housing adapter (item 1) to the end
stop.
3. Tighten the locking screw (item 3).
4. Mount the housing on a wall or pipe with the mounting bracket (item 2). When
mounting on a pipe, tighten the nuts on the bracket uniformly with a torque of at
least 5 Nm (3.69 lbf ft). Mount the cable with a bending radius (r) ≥
120 mm (4.72 in).

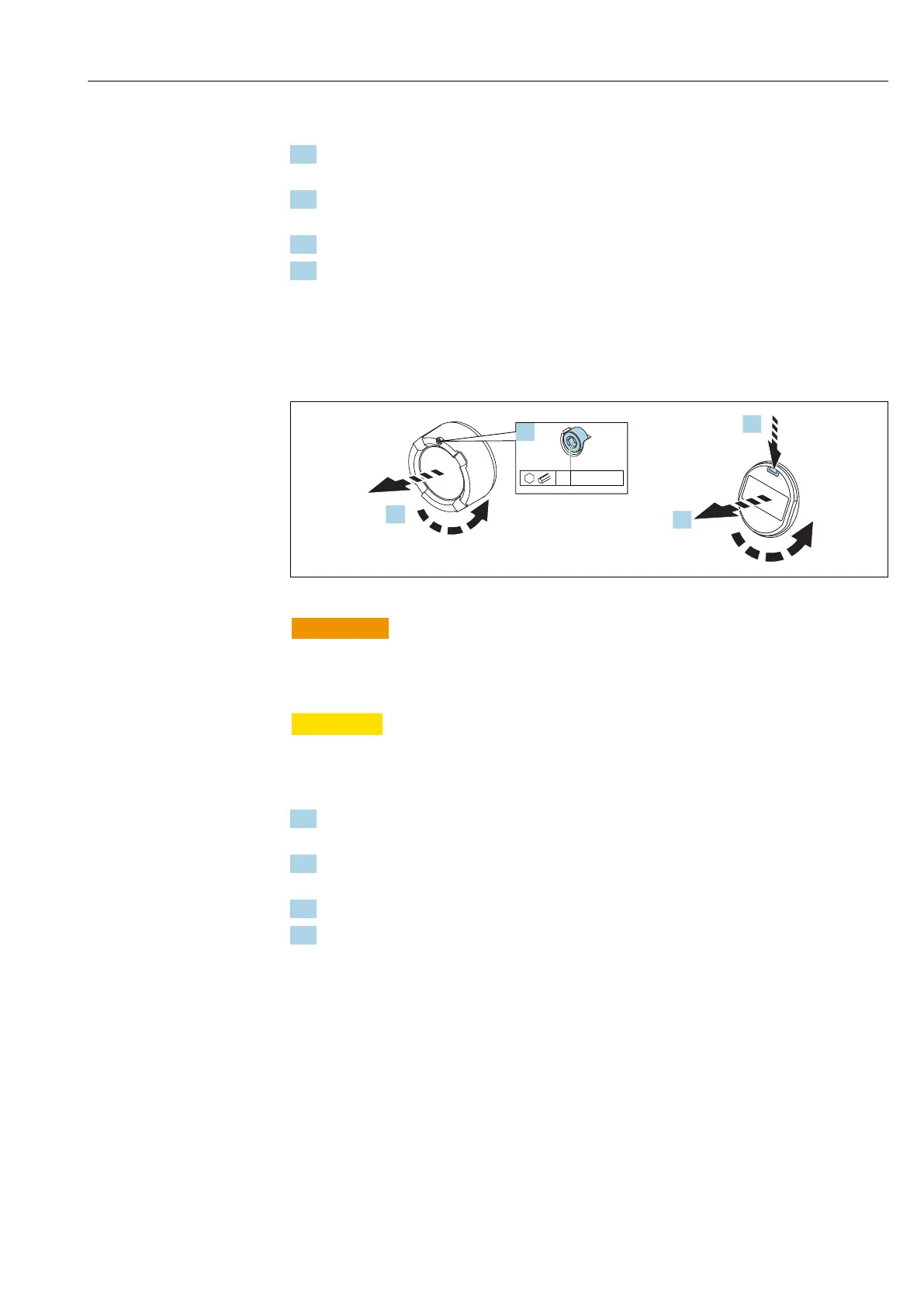

5.2.11 Turning the display module
A0038224
L
WARNING
Supply voltage switched on!
Risk of electric shock and/or explosion!
‣
Switch off the supply voltage before opening the device.
L
CAUTION
Dual compartment housing: when opening the terminal compartment cover, your
fingers can get caught between the cover and pressure compensation filter.
‣
Open the cover slowly.
1. If fitted: release the screw of the cover lock for the electronics compartment cover
using the Allen key.
2. Unscrew the electronics compartment cover from the transmitter housing and check
the cover seal.
3. Press the release mechanism and remove the display module.
4. Turn the display module to the desired position: maximum 4 × 90 ° in each direction.
Fit the display module on the electronics compartment in the desired position until it
clicks into place. Screw the electronics compartment cover back onto the transmitter
housing. If fitted: tighten the screw of the cover lock using the Allen key
0.7 Nm (0.52 lbf ft) ±0.2 Nm (0.15 lbf ft).
