3.3 Terminal diagram
The unique terminal name is derived from:
Slot no. : Port no. : Terminal
Example, NO contact of a relay
Device with inputs for digital sensors, 4 current outputs and 4 relays
• Base module BASE2-E (contains 2 sensor inputs, 2 current outputs)
• 2AO module (2 current outputs)
• 4R module (4 relays)
1 2
3
4
43
42 41
Relay 1
Relay 2
Relay 3
Relay 4
Slot
Slot 4
Port 1
Pin 41
BASE2-E 2DS
4R
2AO
43
42 41
43
42 41
43
42 41
43
42 41
A0039621

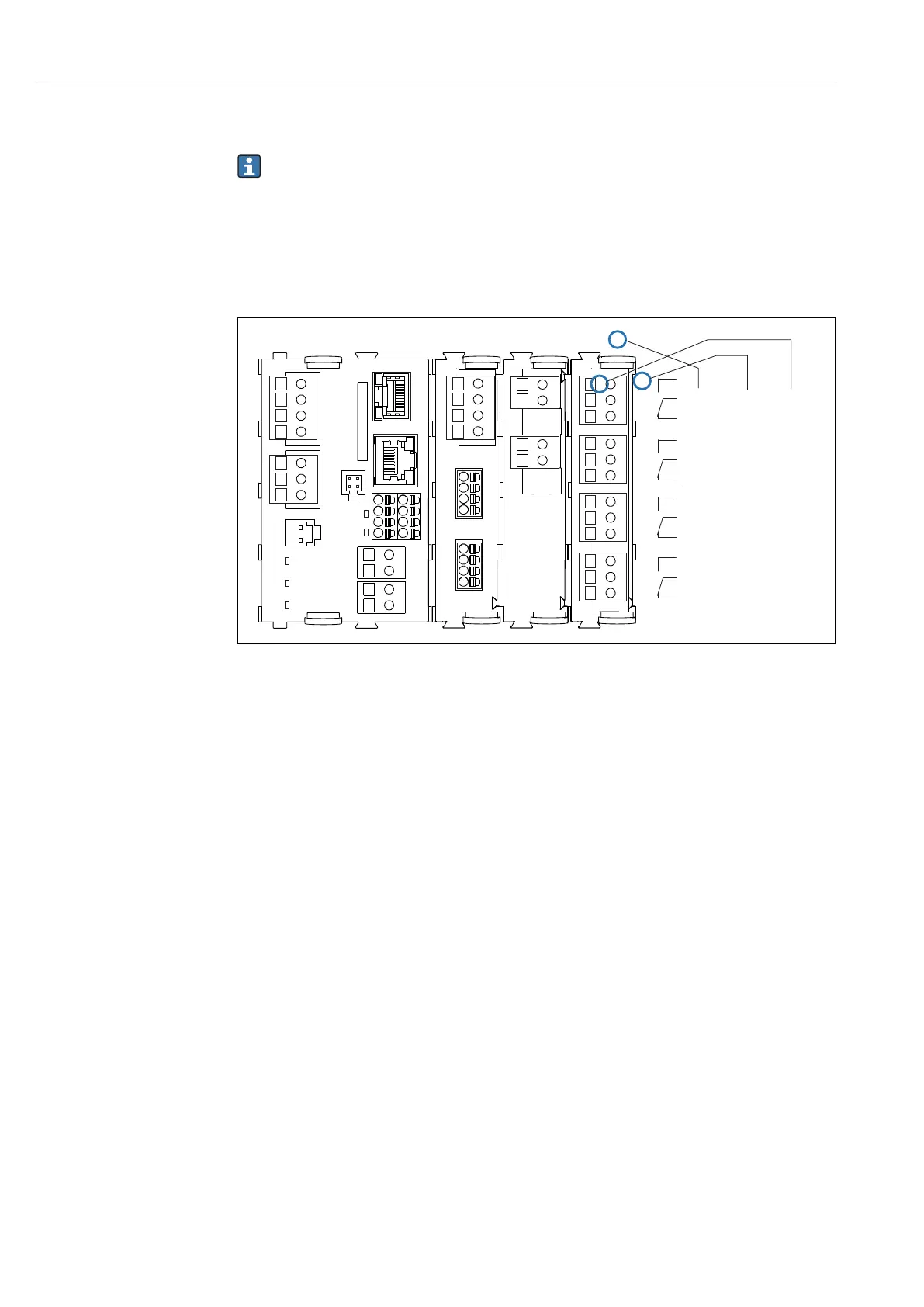

 4 Creating a terminal diagram using the example of the NO contact (terminal 41) of a relay
