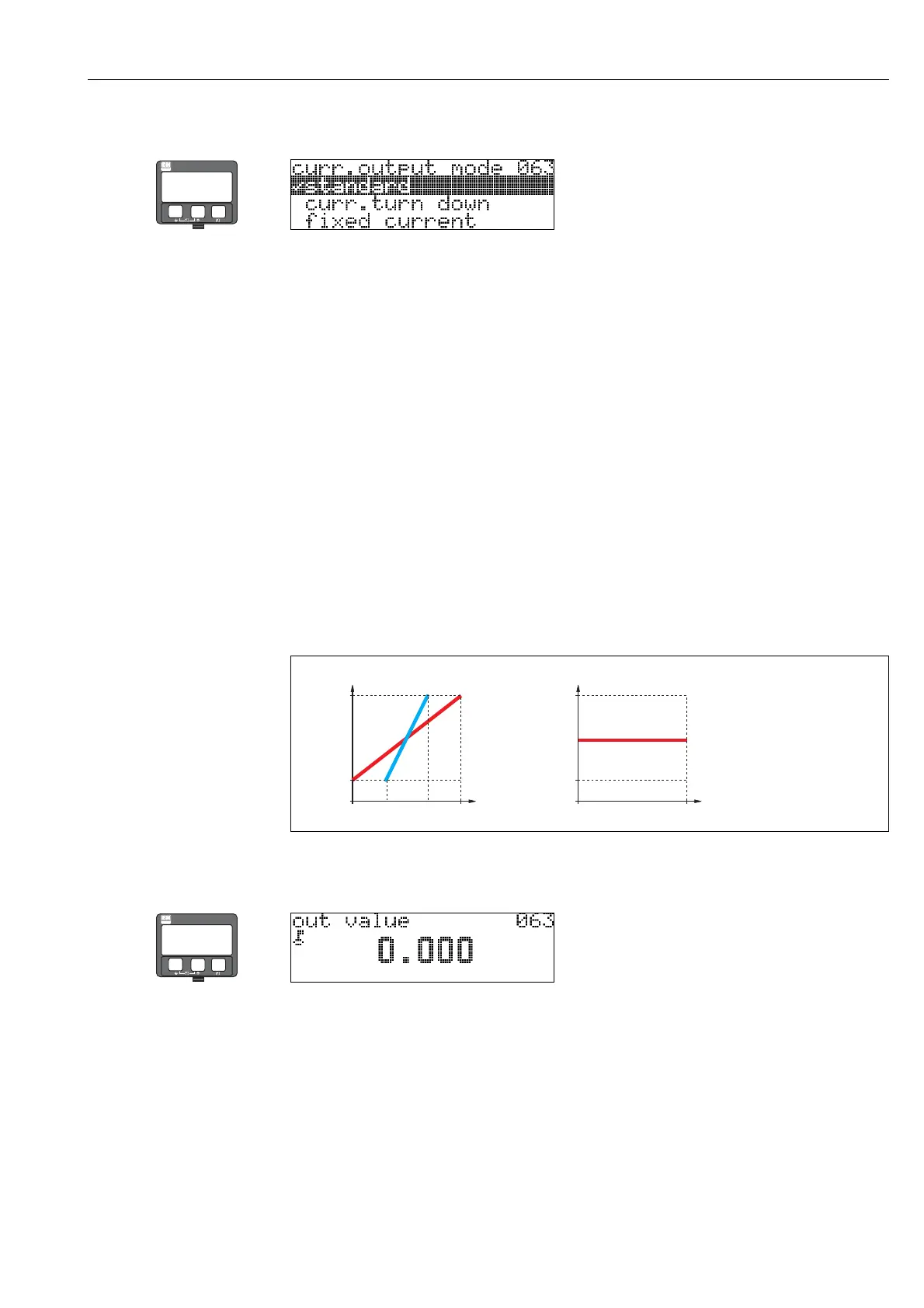

8.7 Function "curr. output mode" (063), HART only
Use this function to specify the current output mode for HART devices.
Selection:
•standard
• curr. turn down
• fixed current
standard
This selection displays the complete measuring range (0...100%) across the full current interval
(4...20 mA).
curr. turn down
This selection only displays a part of the measuring range across the full current interval (4...20 mA).
This range is specified using the "4mA value" (068) and "20mA Value" (069) functions.
fixed current
Selecting this outputs a fixed current. The measured value is only transmitted using the HART sig-
nal. The current output value is set using the "fixed cur. value" (064) function.
"
Caution!
This selection is available for HART devices only!
8.8 Function "out value" (063), PROFIBUS PA only
This displays the AI block output.
"
Caution!
This function is available for PROFIBUS PA devices only!
⇒
ENDRESS + HAUSER
E
+
–
[mA]
20
[mA]
20
4
100 [%]0
4
100 [%]0
fixed current
curr. turn down
standard
⇒
