1.4 General structure of the operating menu
The operating menu is made up of two levels:
• Function groups (00, 01, … , 0C, 0D):
The individual operating Selection of the instrument are split up roughly into different function
groups. The function groups that are available include, e.g.: "basic setup", "safety settings",
"output", "display", etc.
• Functions (001, 002, 003, …, 0D8, 0D9):
Each function group consists of one or more functions. The functions perform the actual operation
or parameterisation of the instrument. Numerical values can be entered here and parameters can
be selected and saved. The available functions of the “basic setup (00)” function group include,
e.g.: "tank shape (002)", "medium property (003)", "process cond. (004)", "empty
calibr. (005)", etc.
If, for example, the application of the instrument is to be changed, carry out the following proce-
dure:
1. Select the “basic setup (00)” function group.
2. Select the "tank properties" (002) (where the existing tank properties is selected).
1.4.1 Identifying the functions

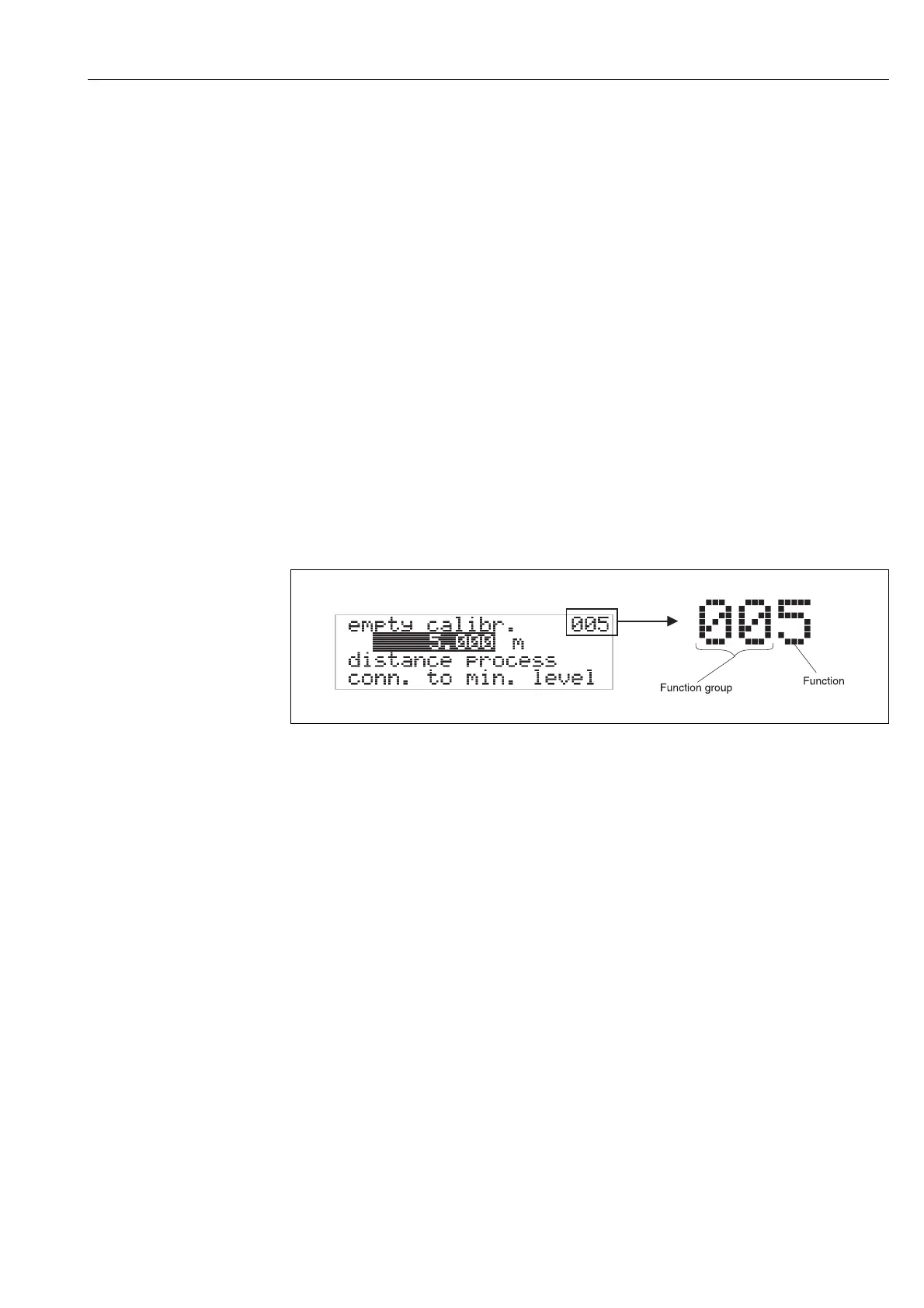

For simple orientation within the function menus (→ ä 12), for each function a position is shown
on the display.
The first two digits identify the function group:
he third digit numbers the individual functions within the function group:
Hereafter the position is always given in brackets (e.g. "tank properties" (002)) after the described
function.
•basic setup 00
• safety settings 01
• lenght adjustment 02
…
•basic setup 00 → • tank properties 002
• medium property 003
• process cond. 004
…
