ENSONIQ EPS-16 PLUS Service Manual

EPS-16 PLUS KEYBOARD ONLY

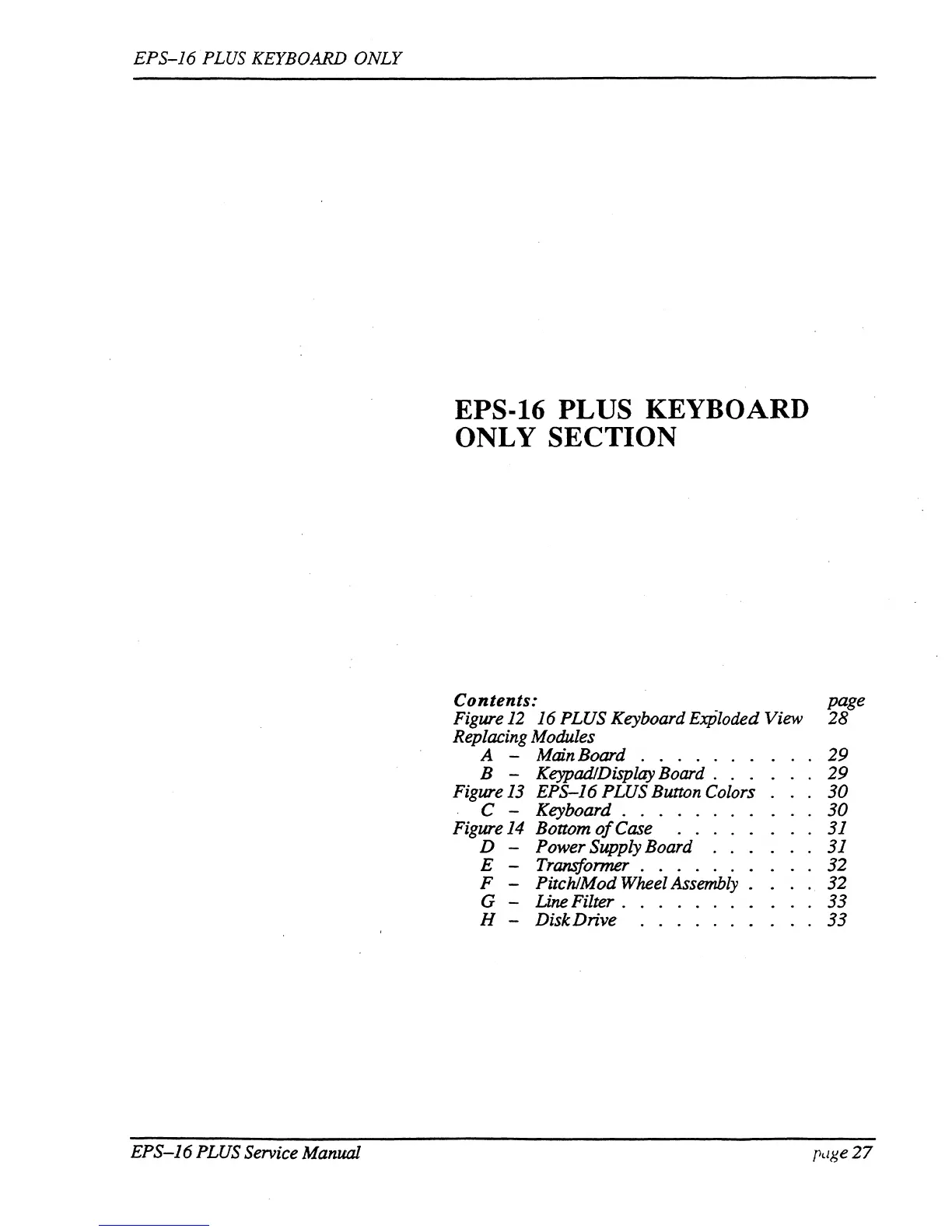

EPS·16 PLUS KEYBOARD
ONLY SECTION
Contents: page
Figure
12 16 PLUS Keyboard ExPloded View 28
Replacing Modules
A - Main Board . . . . . . . 29
B -
Keypad/Display Board. . . 29
Figure 13 EPS-16 PLUS Button Colors 30
C - Keyboard. . . . . 30
Figure 14 Bottom ojCase ..... 31
D - Power Supply Board . . . 31
E - Transformer. . . . . . . 32
F - Pitch/Mod Wheel Assembly . 32
G - Line Filter. . . . . . . . 33
H - DiskDrive . . . . . . . 33
EPS-16 PLUS Service Manual fl,lge 27

ENSONIQ EPS-16 PLUS Specifications

General

Brand	ENSONIQ
Model	EPS-16 PLUS
Category	Recording Equipment
Language	English
