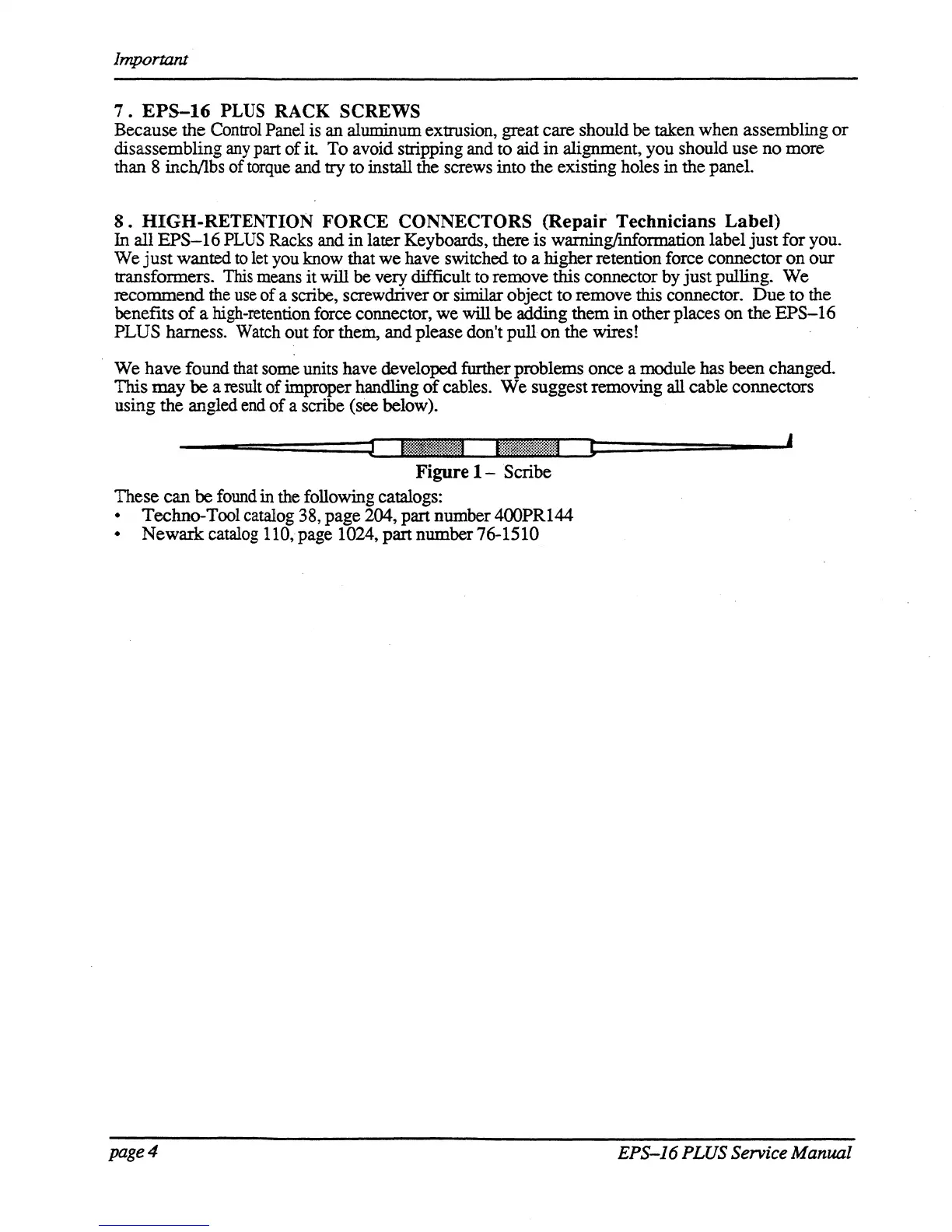

Important
7 .
EPS-16
PLUS
RACK SCREWS
Because
the
Control Panel is an aluminum extrusion, great care should
be
taken when assembling
or
disassembling
any
part
of
it
To
avoid stripping and
to
aid
in
alignment, you should
use
no
more
than 8 inchllbs
of
torque and try
to
install the screws into the existing holes in the panel.
8.
HIGH-RETENTION FORCE CONNECTORS (Repair Technicians Label)
In
all
EPS-16
PLUS
Racks and
in
later Keyboards, there
is
warning{mformation label
just
for
you.
We
just
wanted to let you know that
we
have switched to a higher retention force connector
on
our
transformers.
This
means
it
will
be very difficult to remove this connector by
just
pulling.
We
recommend
the
use
of
a scribe, screwdriver
or
similar object
to
remove this connector.
Due
to
the
benefits
of
a high-retention force connector,
we
will
be
adding them in other places on the
EPS-16
PLUS
harness. Watch
out
for thein, and please don't
pull
on
the wires!
We
have
found that some units have developed further problems once a module has been changed.
This
may
be
a result
of
improper handling
of
cables.
We
suggest removing all cable connectors
using the angled end
of
a scribe (see below).
- - ,
Figure
1-
Scribe
These
can
be found in the following catalogs:
• Techno-Tool catalog 38, page
204, part number
400PRI44
•
Newark
catalog lID, page 1024, part number 76-1510
page
4
,
EPS-J6
PLUS Service Manual
