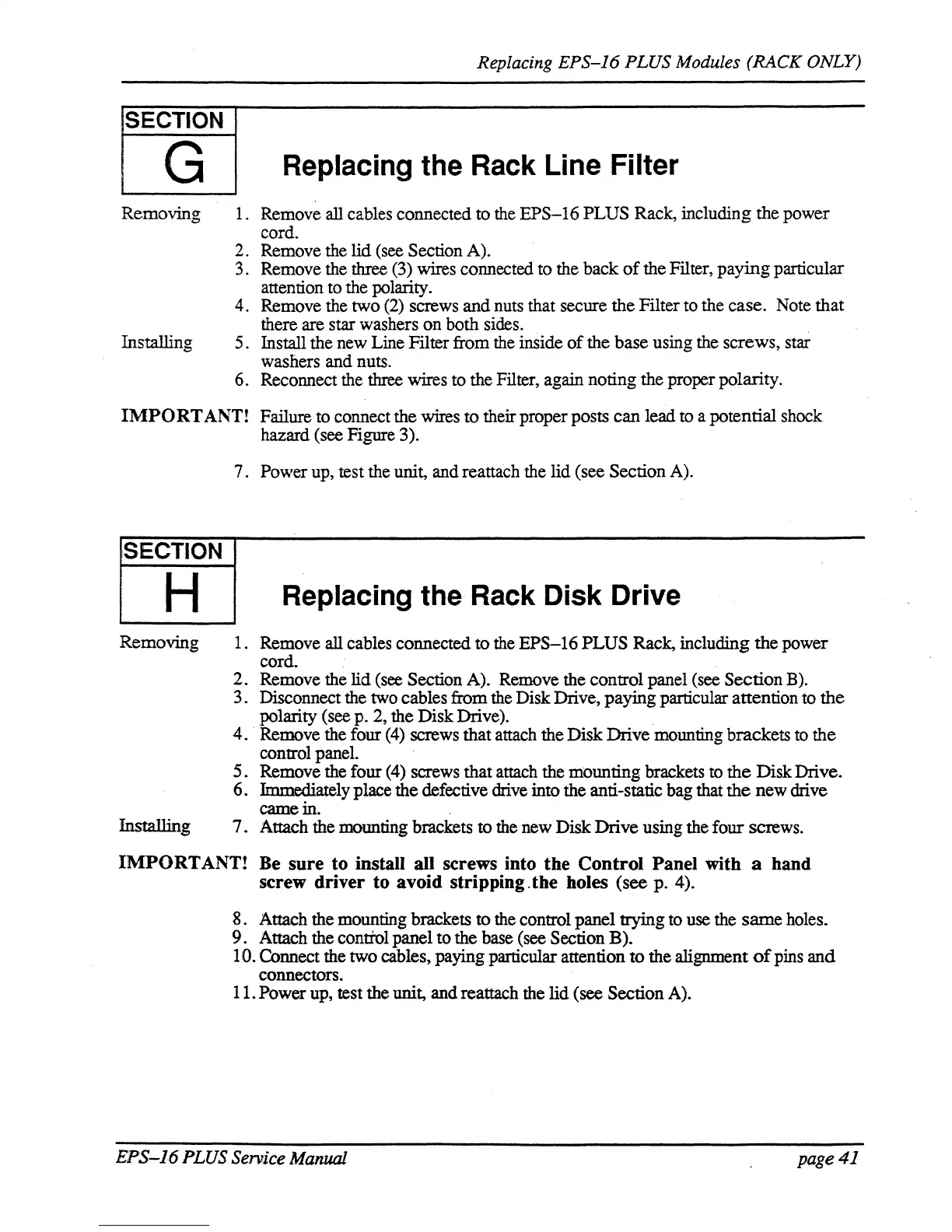

Replacing
EPS-16
PLUS Modules (RACK ONLY)
SECTION
G Replacing the Rack Line Filter
Removing 1. Remove all cables connected to the
EPS-16
PLUS Rack, including the power
cord.
2. Remove the
lid
(see Section A).
3. Remove the three (3) wires connected. to the back
of
the Filter,
paying
particular
attention to the polarity.
4. Remove the two (2) screws and nuts that
secure
the Filter to the case. Note
that
there are star washers
on
both sides.
Installing
5. Install the new Line Filter from the inside
of
the
base
using the screws, star
washers and nuts.
6. Reconnect the
three
wires to the Filter, again noting the proper polarity.
IMPORTANT! Failure to connect the wires
to
their proper posts
can
lead to a potential shock
hazard (see Figure 3).
. SECTION
H
Removing
lDstalling
7. Power up, test the unit, and reattach the lid (see Section A) .
1.
2.
3.
4.
5.
6.
7.
Replacing the Rack Disk Drive
Remove all cables connected
to
the
EPS-16
PLUS
Rack, including
the
power
cord.
Remove the lid
(see Section
A).
Remove the control panel (see
Section
B).
Disconnect the two cables from the Disk Drive, paying particular attention to
the
polarity (see p. 2, the
Disk
Drive).
Remove the four
(4) screws that attach the Disk Drive mounting brackets to the
control panel.
Remove the four
(4) screws that attach the mounting brackets to
the
Disk
Drive.
Immediately place the defective drive into the anti-static bag that
the
new
drive
came in. .
Attach the mounting brackets to the new Disk
Drive
using the four screws.
IMPORTANT!
Be
sure to install all screws into the Control Panel with a hand
screw driver to avoid stripping. the holes (see
p.
4).
8.
Attach the mounting brackets to the control panel trying to use the
same
holes.
9.
Attach the control panel to the base (see Section B).
10. Connect the two cables, paying particular attention
to
the alignment
of
pins
and
connectors.
11. Power up, test the
unit, and reattach the lid (see Section A).
EPS-16
PLUS Senlice Manual
page
41
