Installing the Switch on a Flat Surface
3-4 Hardware Installation

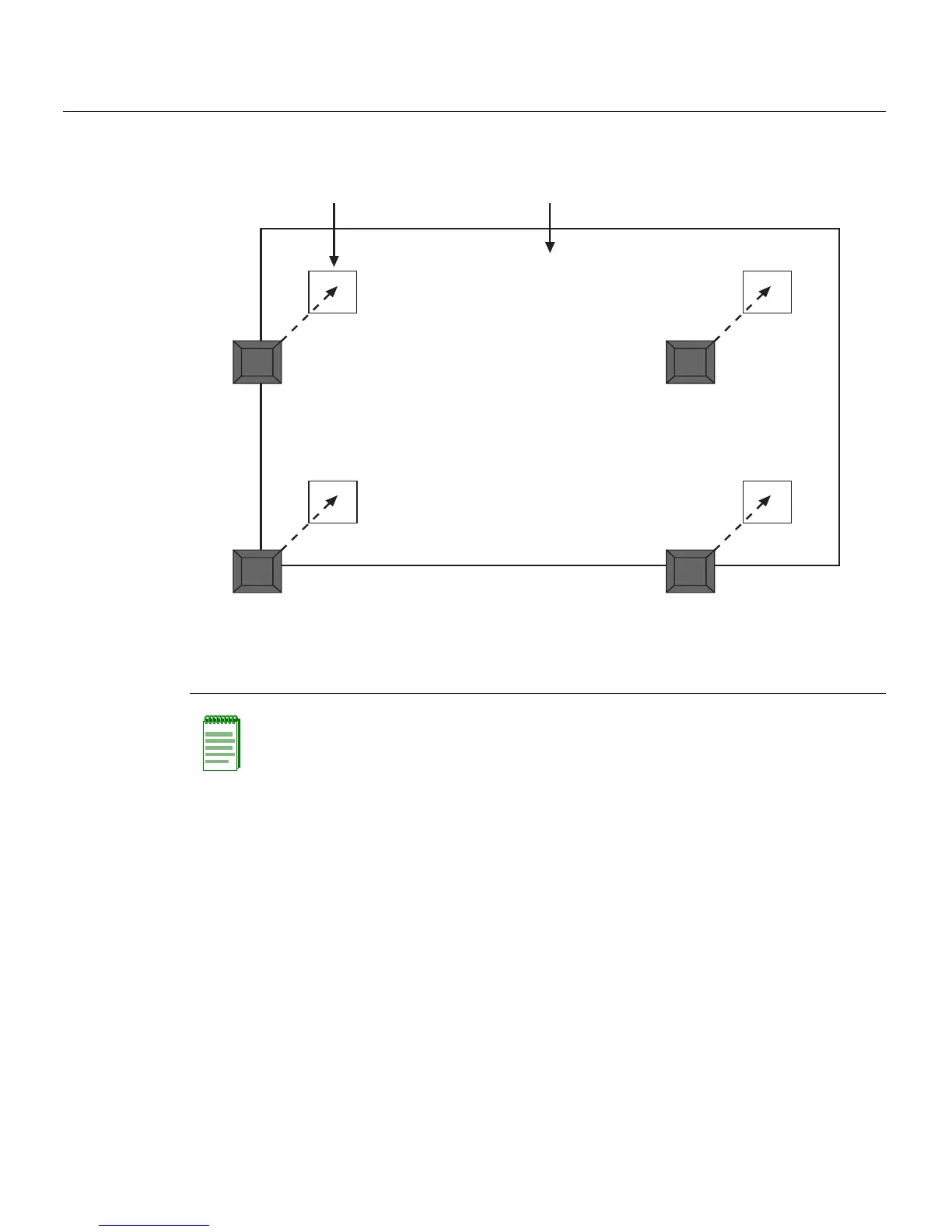

Figure 3-1 Chassis Bottom, Rubber Feet Placement
1 Bottom of chassis as seen when chassis is
resting on its back
3 Rubber feet with adhesive backing
(four)
2 Locations to install the rubber feet (four locations)
Note: If a number of switches are being installed in a stack, repeat steps 1 through 4 to
install the rubber feet on each switch before continuing with the installation.
