Factory Setting;
60,000 BTU. Jumper pin
location 2 left pins covered
70,000 BTU. Jumper pin
location 2 center pins covered
50,000 BTU. Jumper pin
location 2 right pins covered
The DHC 4000 board has a vertical slide switch, one fuse
and second multi pin connector for setting feed rates.
Circuit Board Pin Set-Up for Maxx BTU Inputs: This
is the jumper pin location for the different BTU inputs for
the Maxx pellet stove. The location of the jumper pin box
is located at the upper left hand corner of the back of the
circuit board (see Figure 14 below 60,000 BTU location)
The mother board is wider than the DHC boards and has no
LEDs on the front. It uses pin outs instead of a slide switch for
the thermostat selection
Stove Controls
CirCuiT Board seT-uP - dHC 4000:
CirCuiT Board Pin seT-uP - daugHTer Board:

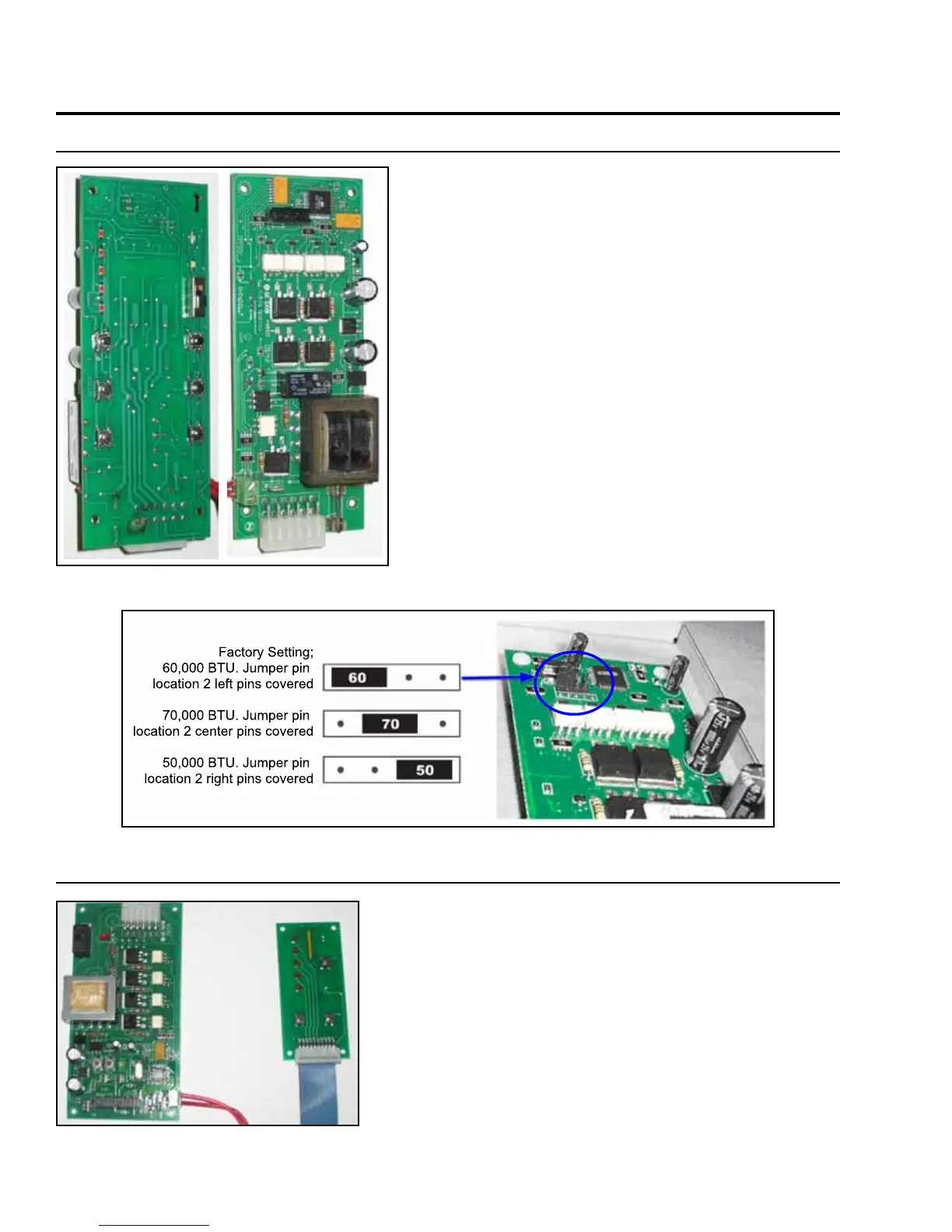

Figure 15: Front & Back of the DHC 4000
Board.
Figure 16: Setting the BTU Input Pins on DHC 4000 Board For the Maxx.
Figure 17: Mother & Daughter Boards.
