Enviro EF2 Service Manual

33
The How To’s For Troubleshooting
How To By-Pass THe dial-a-Fire:
Female-Female Connector
Dial-A-Fire

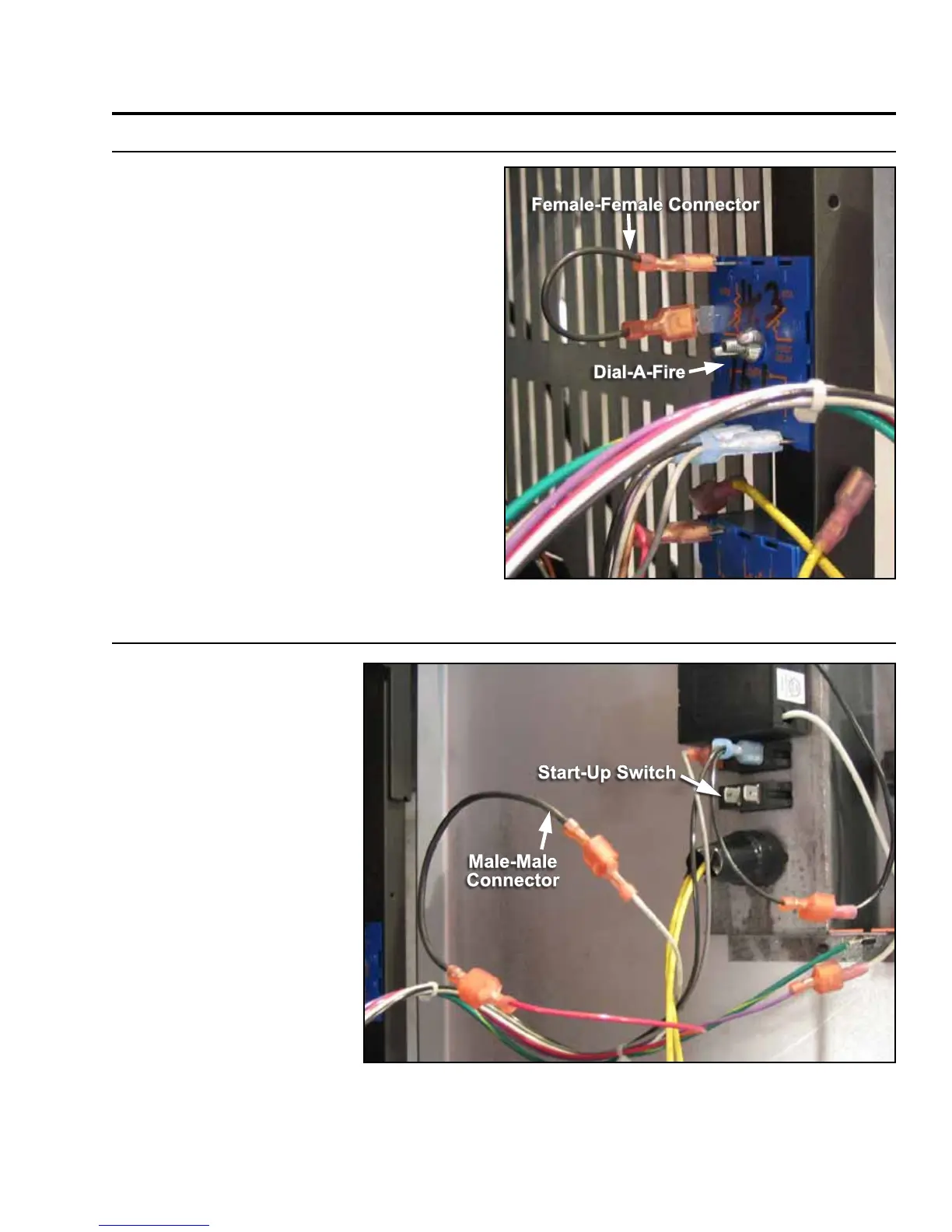

Figure 22: By-Passing The Dial-A-Fire.
This is for Timer Control models.
The dial-a-fire is found behind the right cabinet
side.
Use a female-female connector to by-pass the dial-
a-fire as shown in Figure 22.
Used in
trouBleShooting section “the auger timer
Will not FunCtion normally - timer Control only“.
How To By-Pass THe sTarT-uP swiTCH:
Male-Male
Connector
Start-Up Switch
Figure 23: By-Passing The Start-Up Switch.
This is for Timer Control
models.
The start-up switch is found on
the inside of the right cabinet
side.
Bypass the start-up switch by
inserting a male-male connector
between the red and white
wires that attach to the switch
as shown in Figure 23.
Used in
trouBleShooting section
“the Stove Will not Start”.
