39
How To aPPly direCT Power To THe auger moTor:
The How To’s For Troubleshooting
How To measure THe exHausT Blower volTage:

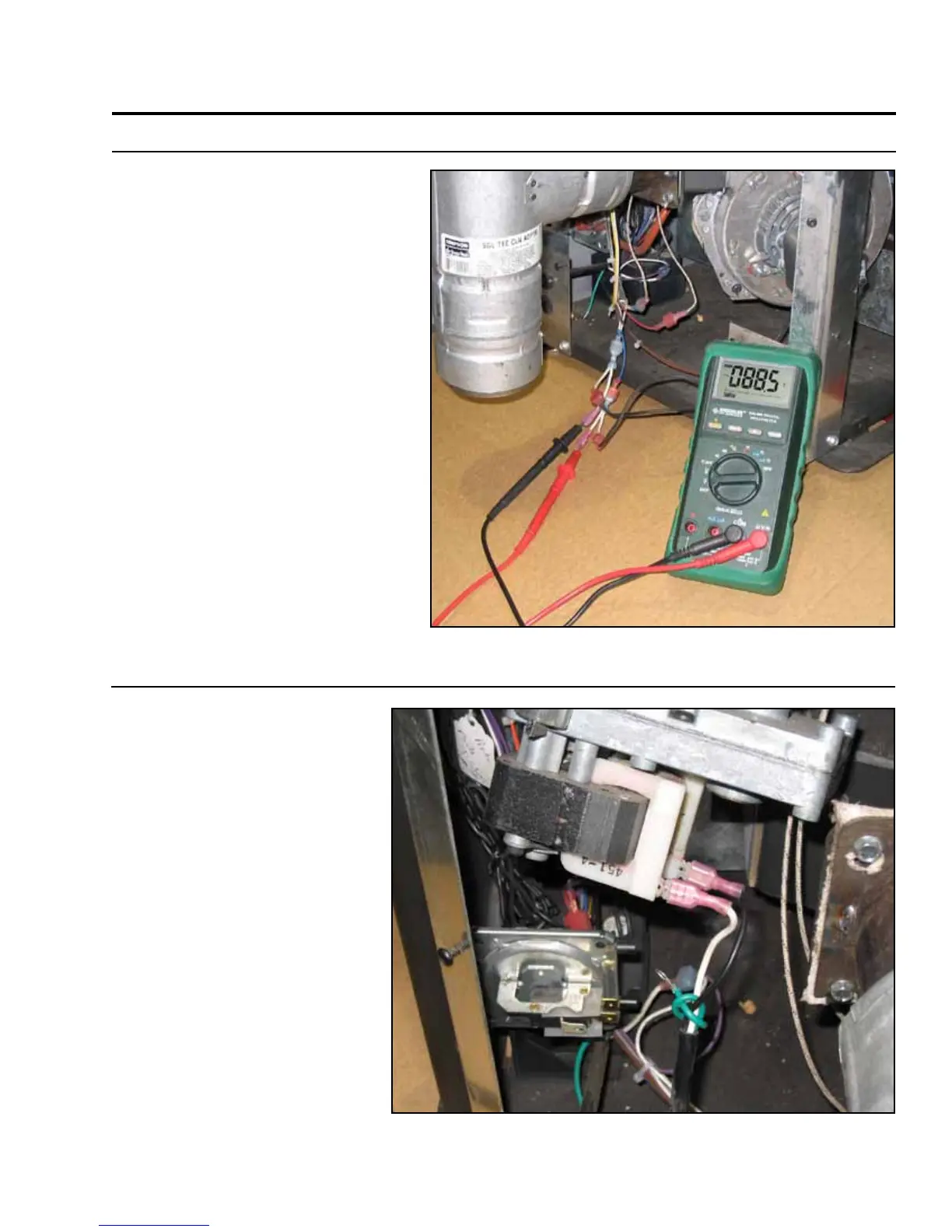

Figure 37: Measuring The Exhaust Blower Voltage.
The exhaust blower is found behind the
left cabinet side.
Check the exhaust blower voltage
across the blower wires. Set the meter
to AC volts and place one probe to each
wire of the fan. Normally it is equal to
or greater than 114V on #5 setting and
equal to or greater than 82V on #1
setting (refer to Figure 37).
Used in
trouBleShooting sections “the
S
tove Will not operate When hot”, “the
auger motor Will not FunCtion normally“,
“light #2 on heat output Bar FlaShing -
CirCuit Board only”, & “light #3 on heat
o
utput Bar FlaShing - CirCuit Board only”.
Figure 38: Applying Direct Power To The Auger Motor.
Apply 115V AC directly to the
auger blower with a test cord,
by removing the two leads and
plugging the motor in directly to a
wall outlet, as shown in Figure 38.
Used in
trouBleShooting sections
“the Stove Will not operate When
hot”, “the auger motor Will not
FunCtion normally“.
Note: Use this method when
applying direct power to the
Convection and Exhaust blowers.
