Enviro EF2 Service Manual

37
The How To’s For Troubleshooting
How To By-Pass exHausT TemPeraTure sensor/swiTCH:
Exhaust Temperature Sensor
Place both connectors
on same side or jumper
the wires together.

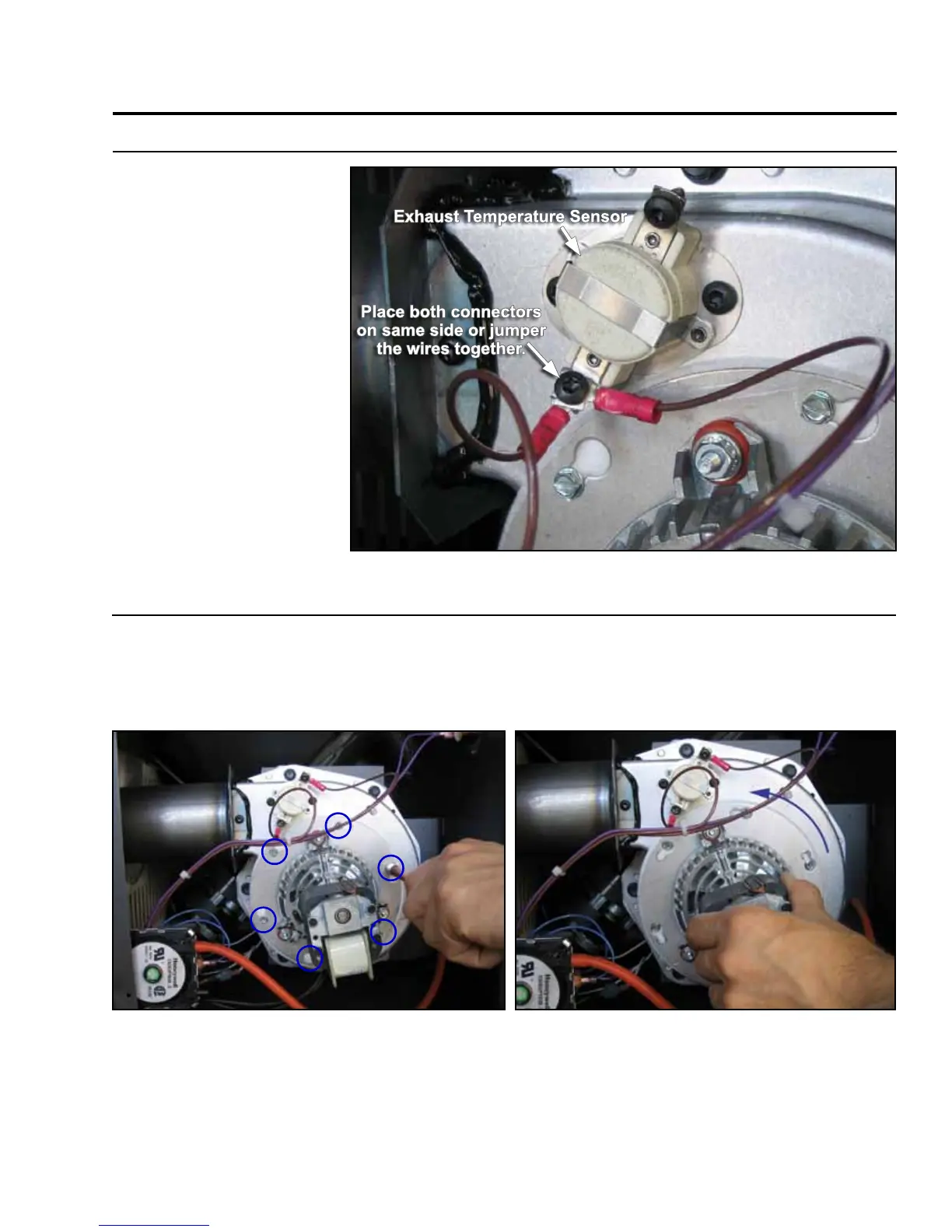

Figure 31: By-Passing The Exhaust Temperature Sensor/ Switch
(EF 3 Shown).
The exhaust temperature
sensor/switch is found behind
the left cabinet side.
Place both connectors on
same side of the exhaust
temperature sensor/switch or
jumper the wires together as
shown in Figure 31.
Used in
trouBleShooting
section “
the Stove Will not
operate When hot”.
How To remove THe exHausT Blower moTor:
The exhaust blower motor is found behind the left cabinet side.
1. Loosen, but do not remove, the six (6) screws using a ¼” socket (refer to Figure 32).
2. Turn the motor counter-clockwise (refer to Figure 33).
3. Remove the exhaust blower motor.
Figure 33: Removing The Exhaust Blower Motor. Figure 32: Loosening The Screws On The Exhaust
Blower Motor.
Used in trouBleShooting section “the ComBuStion (exhauSt) motor Will not FunCtion normally”.
