 MMS6110Directionforuse
 Configuration  Page11




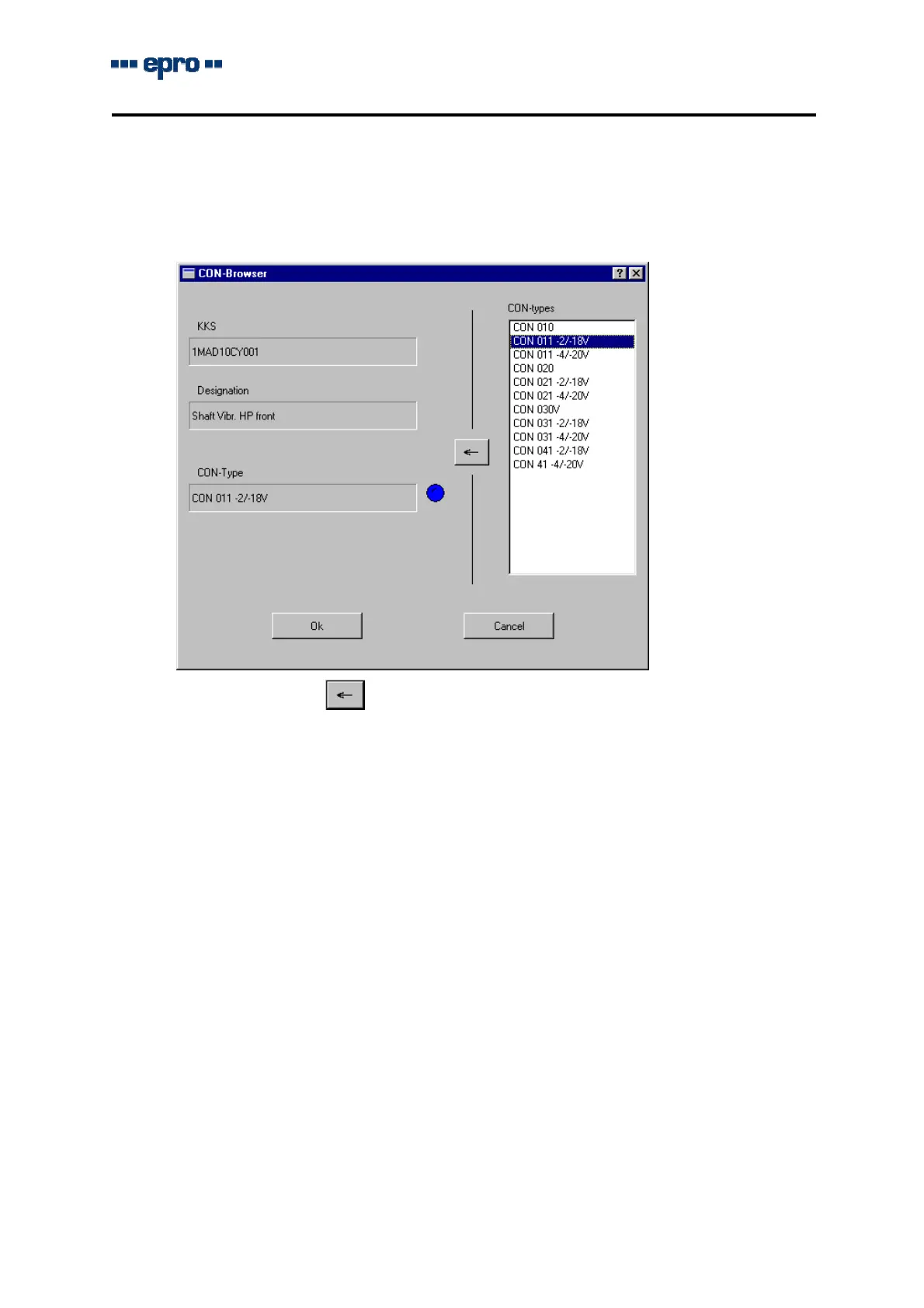

EntryfieldandMousebuttonCON-Type
Thisfieldshowstheselectconvertertype.Byclickingbutton"Selection",withthemouse,
windowCON-BrowserwillbeopenedandindicatestheavailableCONtypes.Thedesired
convertertypemaybemarkedwithamouseclickinthetypelistshownintherightwindow.

Byclickingthebutton
withthemouseorbyselectingitwiththeTABkeyandconfir-
mingthechoicewithENTER(↵),theselectedconvertertypeisacceptedandtakenoverinto
fieldCON-typeintheleftpartofthedialogbox.
FieldsKKSresp.DesignationshowdesignationandKKSnumberasitwasenteredin
propertypageChannel.
ByclickingbuttonOKwiththemousetoconfirmthechoiceorbuttonCANCELtoabortthe
action,theprogramreturnstotheparameterinput.
Havingconfirmedthechoice,theconverter-specificdatafortheoperatingrange(linearrange
oftheoutputvoltage),willalsobetakenover.
TheconvertertypemayalsobeentereddirectlyinfieldCONtype.Inthiscasetheoperating
rangeforthemeasuringchain,upperandlowerlimitforthelinearoperatingrangeandthe
distancebetweensensorandmeasuringtargetforthelowersignallevelmustbeentered
resp.corrected.Thefieldfortheupperdistanceiscalculatedfromthevoltagerange,thedis-
tanceatthelowersignallevelandthesensorsensitivity.
Ifthespecificationsforthemeasuringchaintakenoverfromtheconverterlistaremodifi-
cated,theconverterdesignationinfieldCONtypewillbeshowninsquarebrackets.
EntryfieldandMousebuttonSensor-Type
Theentryfieldshowsthesensor-typeforwhichtheconfigurationhasbeenprepared.
