ePropulsion eLite User Manual

14
2 Tiller
2.1 Tiller Angle
The angle of the tiller can be adjusted anywhere from 90° above to 90° below the horizontal, to
suit your position in the boat. In “free mode” it is infinitely variable, whilst in “fixed mode” it has
four lockable trim angles: -90°, 0°, 45°, and 90°.

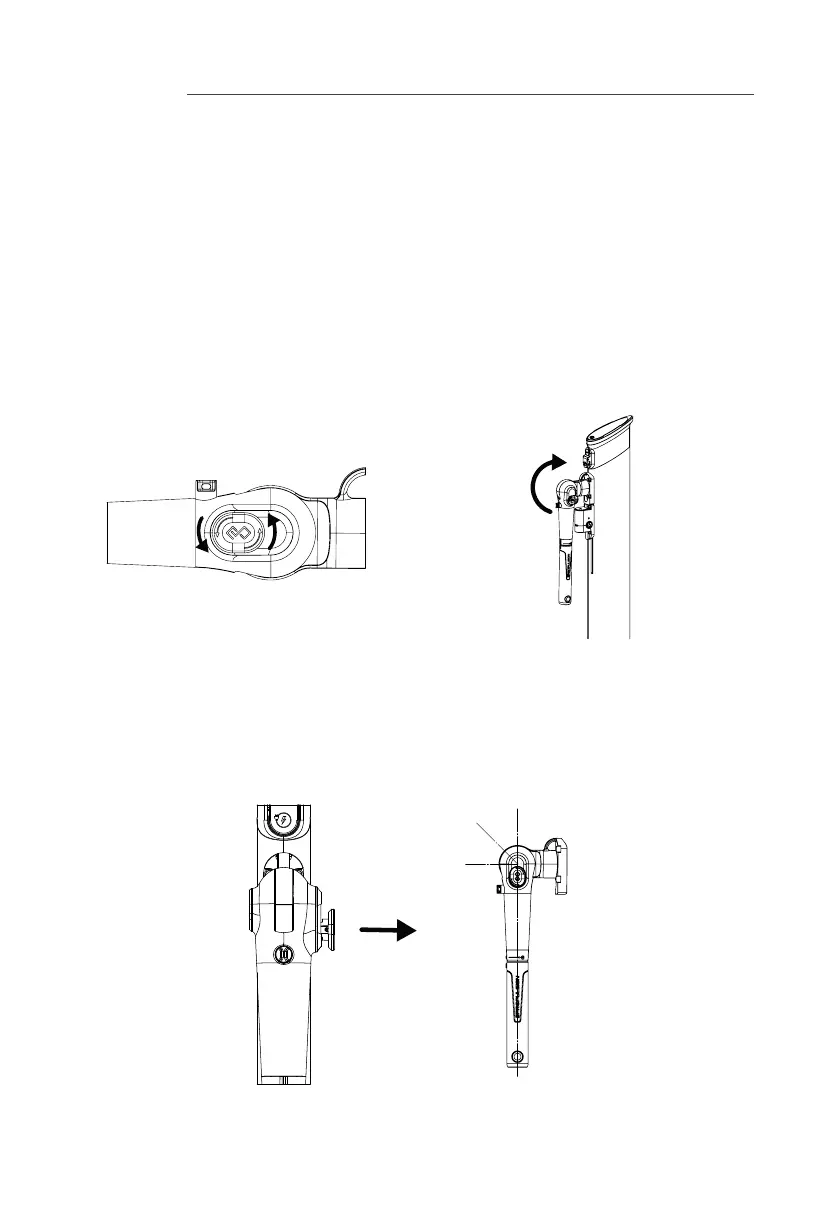

2.1.1 Free Mode
Rotate the tiller adjustment toggle 90° in either direction. The toggle will spring outwards as it’s
rotated and the tiller can then be adjusted freely to any angle from -90° to 90°.
Figure 2.1
2.1.2 Fixed Mode
Pull out the toggle, and the tiller can be adjusted to any of four fixed positions: -90°, 0°, 45°, and
90°. Push toggle back in to lock it.
Figure 2.2
版本 变更记录 ECN编号 设计 变更日期
A
1 2 3
4
A
B
3 2 1
B
A
C
D
C
g
单位:mm
Guangdong ePropulsion Technology Limited
广东逸动科技有限公司
4
版本 变更记录 ECN编号 设计 变更日期
A
1 2 3
4
A
B
3 2 1
B
A
C
D
C
g
单位:mm
Guangdong ePropulsion Technology Limited
广东逸动科技有限公司
4
1 2 3
4
A
B
3 2 1
B
A
C
D
C
g
单位:mm
Guangdong ePropulsion Technology Limited
广东逸动科技有限公司
4
0°
45°
90°
-90°
