4 Installation
Failure to secure the bracket clamp correctly may result in the outboard motor falling
off, causing property damage, serious injury, or death.
4.1 Clamp Bracket Installation
Before installing the clamp bracket, please check:
1. If clamp bracket functions properly.
2. If any components are loose.
3. If there are any cracks in the clamp bracket.
Step 1: Check the clamp bracket.
Step 2: Place the clamp bracket in the center of the transom and do up the clamp handles.

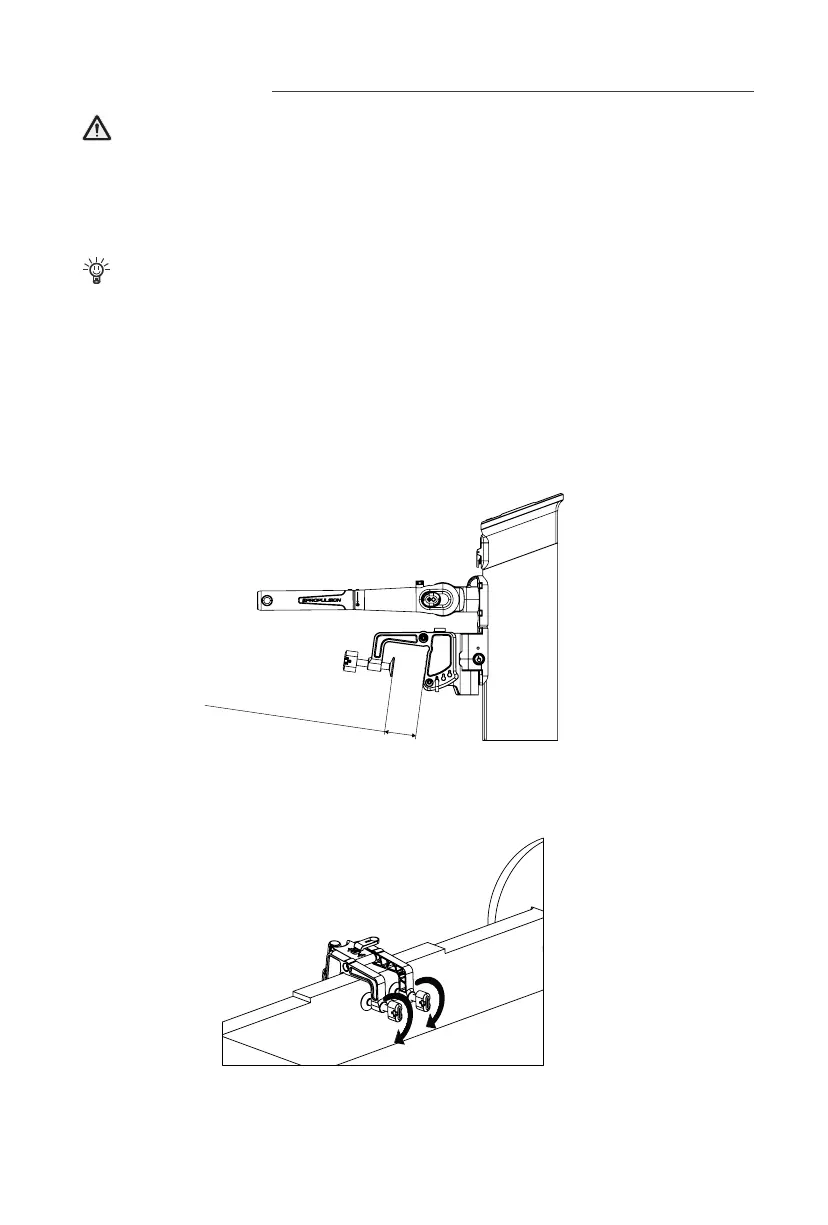

Figure 4.1
Figure 4.2
Transom thickness range:
38mm-70mm
1 2 3
4
A
B
3 2 1
B
A
C
D
C
g
单位:mm
