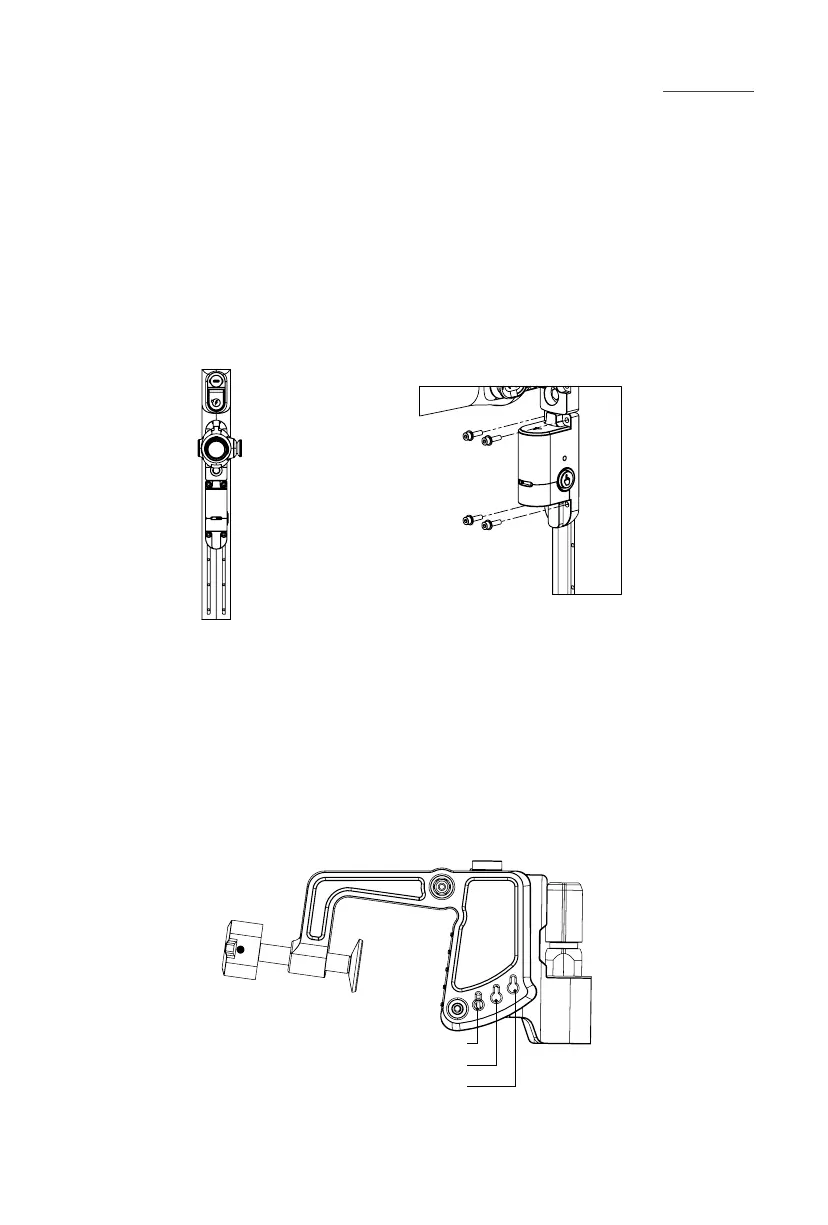

3 Clamp Bracket & Quick Release Mount
3.1 Shaft Length
Shaft length is defined as the distance from the top of the propeller to the top of the transom.
The shaft length can be adjusted to one of four positions: 401mm, 362.5mm, 322mm, and
282.5mm. The default setting is 401mm. If you need to adjust the shaft length, use the hex
wrench to remove the four screws that secure the quick-release mount to the shaft. Adjust
the position of the quick-release mount to the shaft length needed. Apply threadlocker on the
screws, then put the four screws back in and do up with the hex wrench.
3.2 Trim Angle
The outboard’s trim can be adjusted to suit different boats and transom angles. Movement of
the trim pin in the bracket allows for three positions: 8°, 17°, and 26°. The best position to select
is the one where the propeller will be closest to vertical when the boat is loaded and in use.
Figure 3.3
1 2 3
4
A
B
3 2 1
B
A
C
D
C
g
单位:mm
Guangdong ePropulsion Technology Limited
广东逸动科技有限公司
4
Figure 3.1 Figure 3.2
1 2 3
4
A
B
3 2 1
B
A
C
D
C
g
单位:mm
Guangdong ePropulsion Technology Limited
广东逸动科技有限公司
4
8°
17°
26°
