ePropulsion eLite User Manual

25
Step 2: Hold the outboard motor with both hands and align the quick-release mount with the
clamp bracket damping shaft, then slowly lower the motor into place.

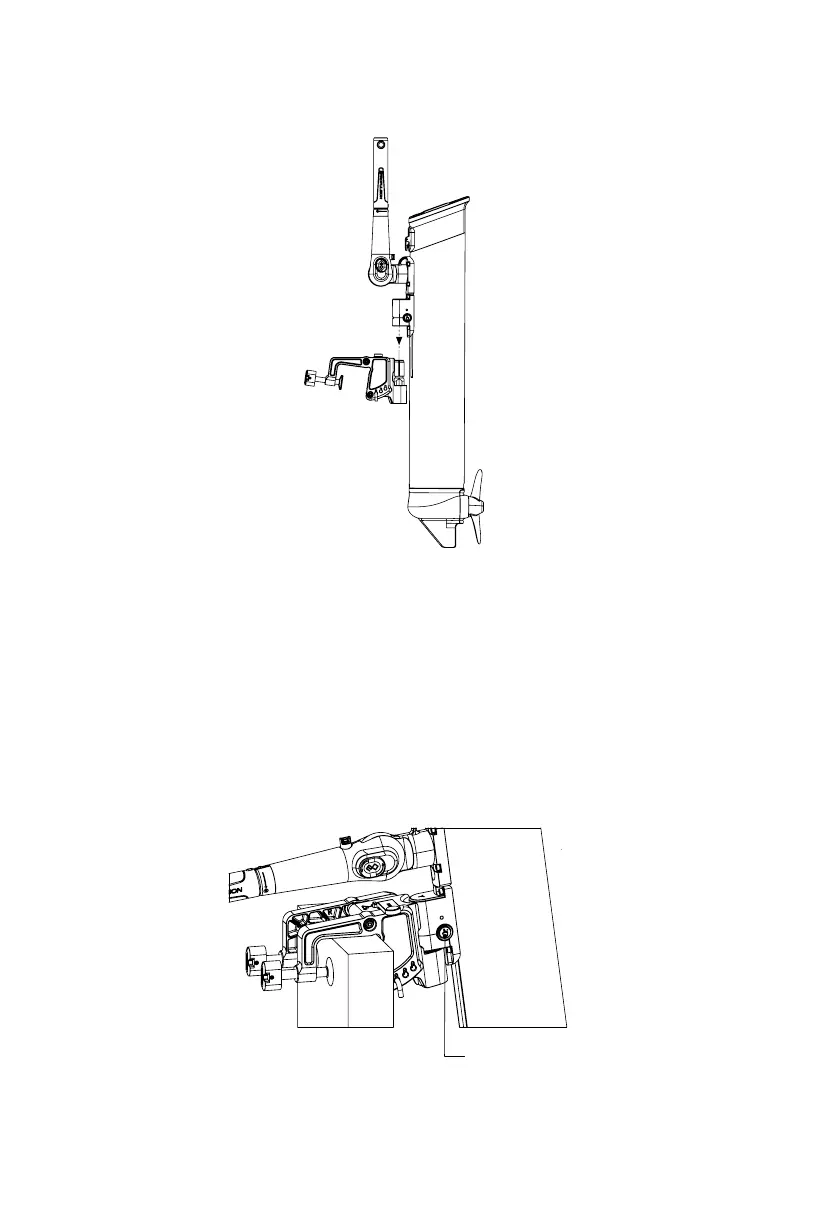

Figure 4.5
Step 3: Check the motor has seated down correctly, ie doesn’t wobble, can’t be pushed upwards
if knocked etc.
4.3 Motor Removal
Step 1: Press the quick-release button to release.
Figure 4.6
版本 变更记录 ECN编号 设计 变更日期
A
1 2 3
4
A
B
3 2 1
B
A
C
D
C
g
单位:mm
Guangdong ePropulsion Technology Limited
广东逸动科技有限公司
4
Quick Release Button
1 2 3
4
A
B
3 2 1
B
A
C
D
C
g
单位:mm
Guangdong ePropulsion Technology Limited
广东逸动科技有限公司
4
Quick Release
Button
