5.4.1 Motor Tilt
Step 1: Lift the trim lever upwards.

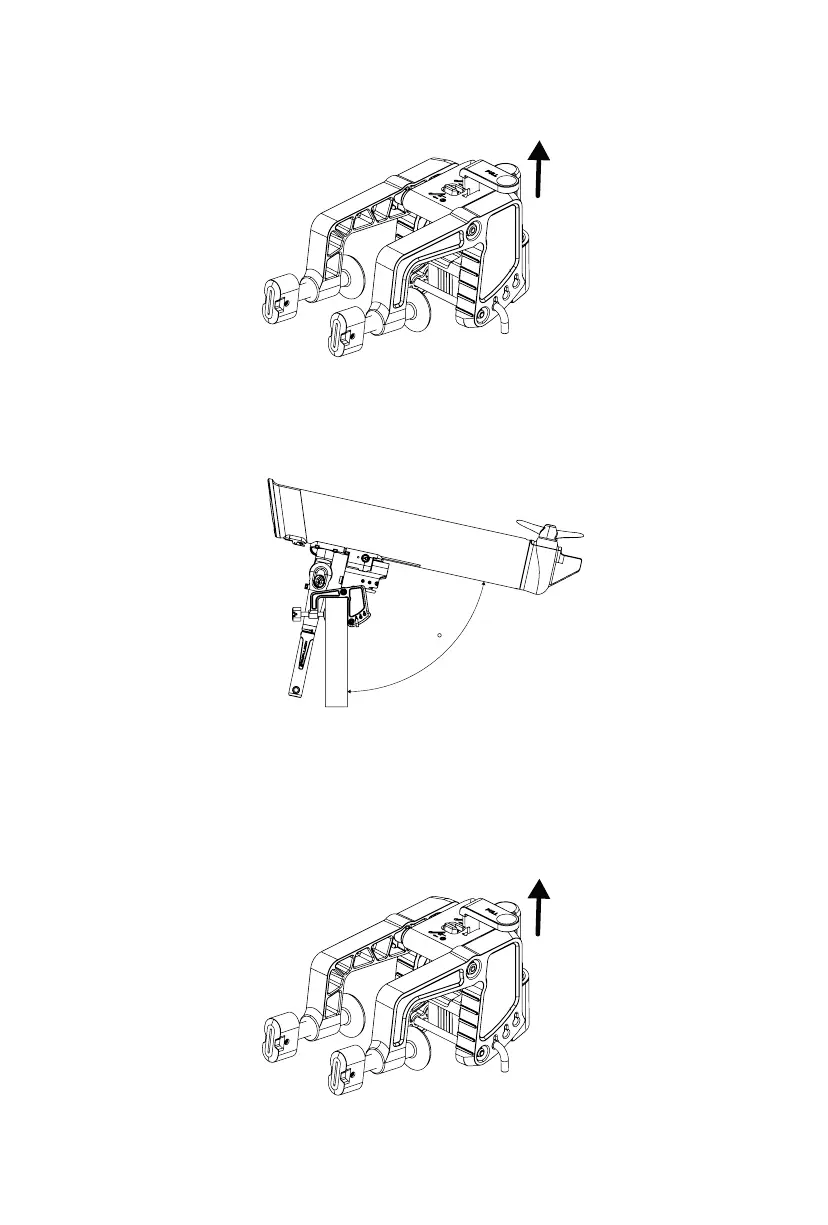

Figure 5.9
Step 2: Tilt the outboard motor to the highest point it will go, and release it. The shaft will rest
in place at 75 to the transom.
Figure 5.10
5.4.2 Motor Release
Step 1: Hold the motor main part steady with one hand and lift the trim lever upwards as high
as it will go with the other hand.
Figure 5.11
