10 Transportation and Storage
10.1 Portable
The ePropulsion eLite is designed so that it can be carried by the tiller when folded down in line
with the shaft (-90 degree position).
1. Before carrying the outboard motor, make sure to remove the kill switch from the kill
switch hole.
2. Before carrying the outboard motor, make sure the outboard is turned off.
3. Before carrying the outboard motor, make sure the tiller is locked.

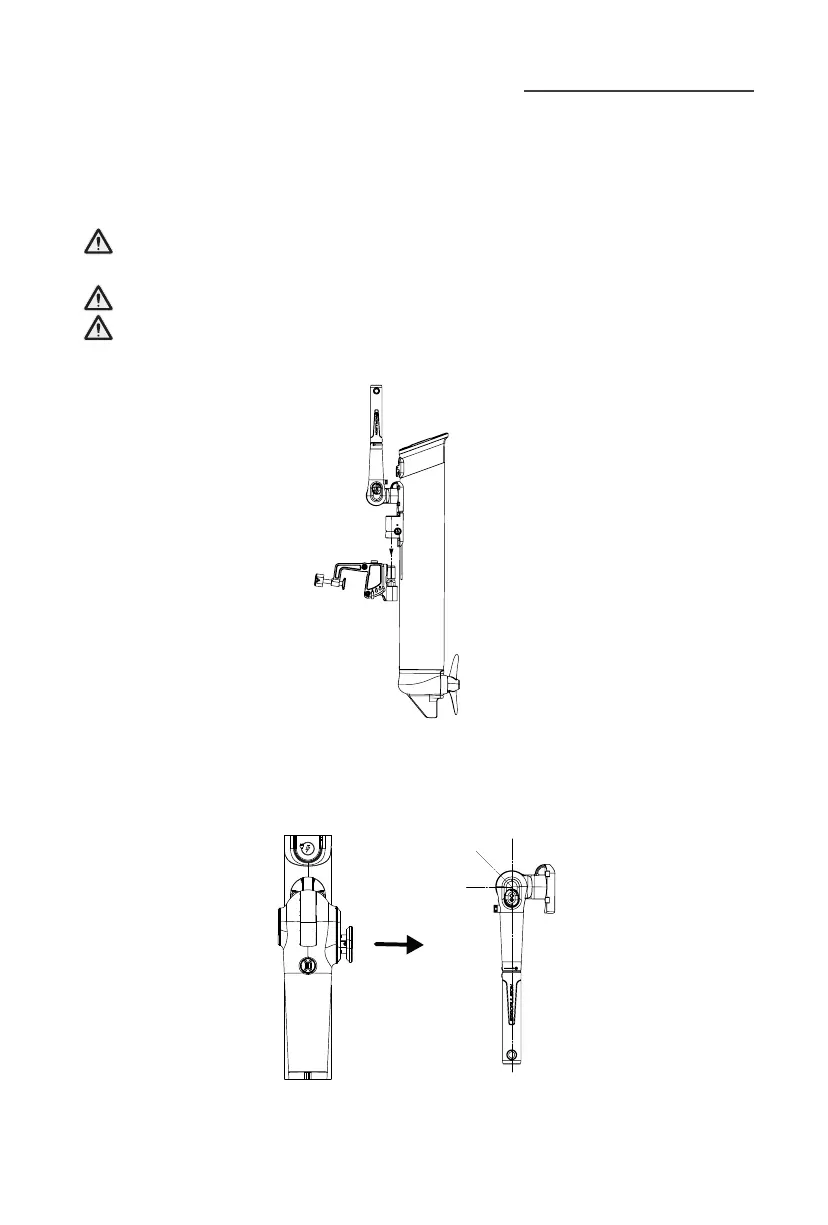

Step 1: Separate the outboard motor from the bracket clamp.
Figure 10.1
Step 2: Adjust the knob to fold the handle to -90 degrees and confirm it is locked.
Figure 10.1
