Epson Expression 1680 User Manual

60
How To Scan
Windows Me
,
Windows 2000, and Windows 98

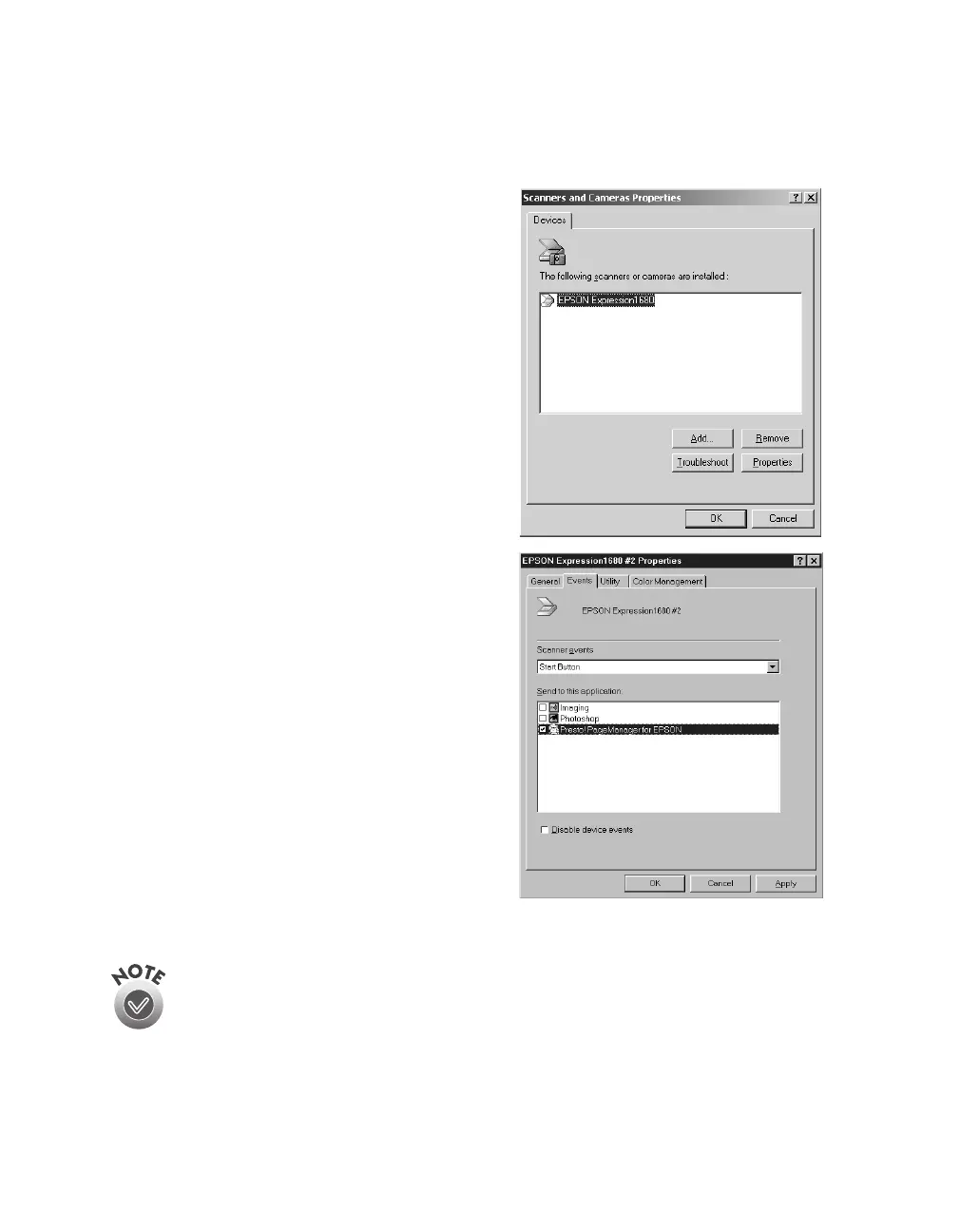

Follow these steps to assign an application to the a Start button:
1. Open the Windows Control Panel and
double-click the
Scanners and
Cameras
icon.
2. Select
EPSON Expression1680
and
click the
Properties
button.
3. Click the
Events
tab. You see the
window to the right.
4. Make sure
Start Button
appears in the
Scanner events box, then deselect any
applications you don’t want to use in the
Send to this application list. When you
finish, a check should appear only beside
the application that you want to assign to
the a Start button.
5. Click
Apply
, then click
OK
to close the
EPSON Expression 1680 Properties
window, then click
OK
again to close the
Scanners and Cameras Properties
window.
You can disable the
a
Start button by clicking the Disable device events
checkbox on the Events tab.
1680.book Page 60 Thursday, March 1, 2001 4:28 PM

Epson Expression 1680 Specifications

Scanning Specifications

optical resolution	1600 x 3200 dpi
maximum resolution	13, 600 x 18, 720 dpi with interpolation
effective pixels	13, 600 x 18, 720 pixels (1600 dpi)
color depth	48 bits per pixel internal/external
grayscale depth	16 bits per pixel internal/external
scanning speed (color, 1600 dpi, draft mode)	9.2 msec/line (approx.)
scanning speed (grayscale/monochrome, 1600 dpi, draft mode)	3.1 msec/line (approx.)

Operating Environment

temperature operating range	41ºF to 95ºF (5ºC to 35ºC)
humidity operating range	10% to 80% (no condensation)
humidity storage range	10% to 85% (no condensation)

Power

voltage	AC 100V-120V, 220V-240V
frequency	50-60Hz
power consumption (operating without optional unit)	60W
power consumption (operating with optional unit)	75W
power consumption (standby without optional unit)	10W

Weight and Dimensions

maximum read area	8.5" x 11.7" (216mm x 297mm)
width	13.1" (332mm)
depth	22.1" (562mm)
height	5.2" (133mm)
weight	18.7 lb (8.5 kg approx.)
