EPSON LX-300+II/300+II RTP/1170II Revision D
LX-300+II RTP DISASSEMBLY AND ASSEMBLY 100

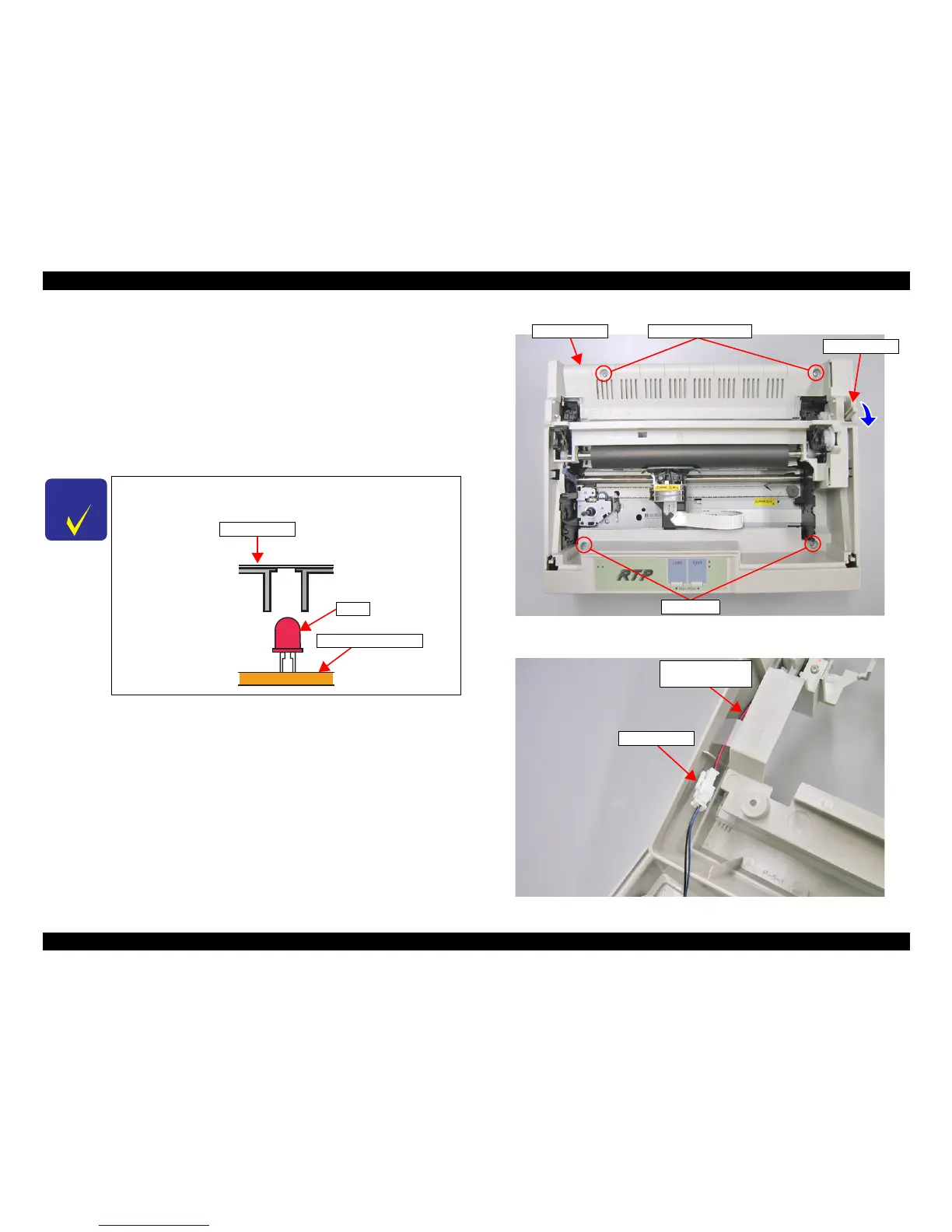

7.1.2 Upper Housing Unit Removal
1. Remove the tractor unit.
2. Set the release lever to the tractor feed.
3. Remove 4 screws securing the upper housing to the lower housing.
4. Detach the upper housing.
5. Disconnect the lead wire of cover open switch assy from the relay connector, and
remove the Upper Housing.
Figure7-2. Upper Housing Removal (1)
Figure7-3. Upper Housing Removal (2)
C H E C K
P O I N T
When installing the upper housing, be sure to insert LEDs on the
panel board into the LED holes of the upper housing.
LED
Upper Housing
Panel Board Assembly
C.B.P., Tite, 3x10 F/ZN
Upper Housing
CPB (3x10)
Release lever
Relay connector
Lead wire of Cover
Open Switch Assy
