EPSON LX-300+II/300+II RTP/1170II Revision D
LX-300+II RTP Exploded Diagrams 109

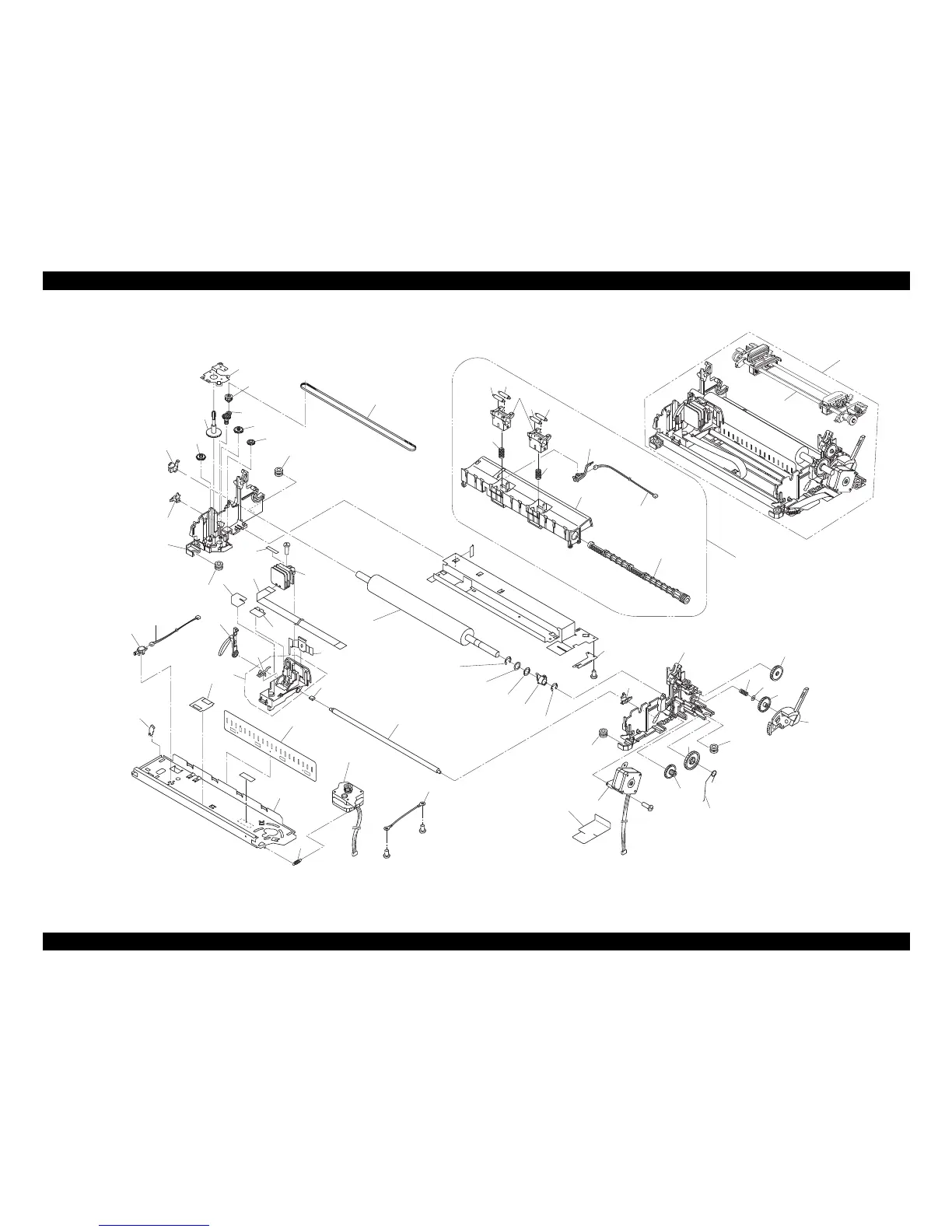

Figure 7-12. LX-300+II RTP Exploded Diagram 2
Only numbered Service Parts are available.
500
654
530
529
522
526
521
520
528
528
526
527
527
525
515
568
559
571
566
567
565
590
564
502
542
578
559
511
576
532
531
534
533
531
506
503
575
538
561
535
504
560
562
563
514
517
559
539
579
536
537
653
540
543
650
651
501
542
532
559
541
509
510
510
513
505
516
512
