Epson LX-300+II RTP

EPSON LX-300+II/300+II RTP/1170II Revision D
Operating Principles Printer Mechanism 49

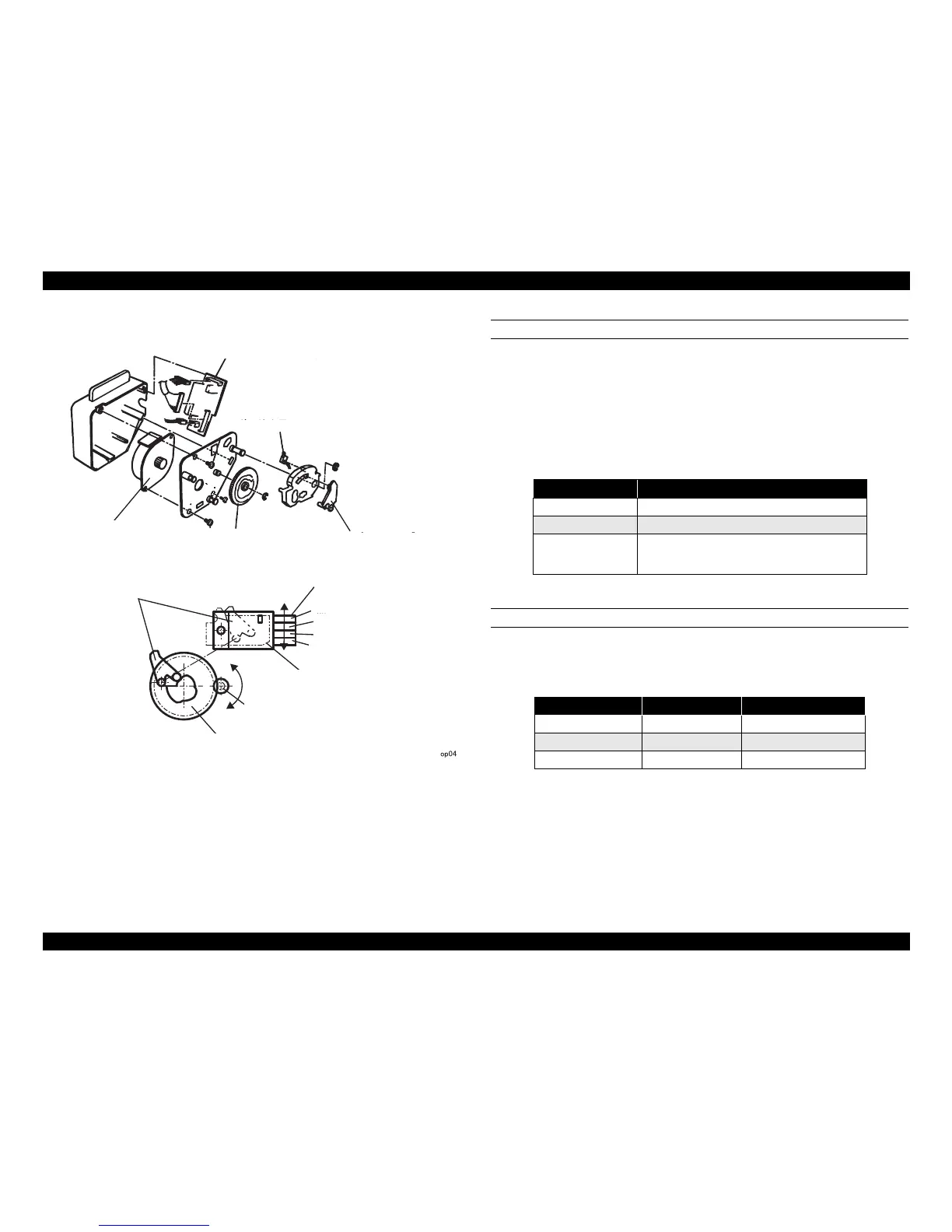

Figure 2-4. Color Ribbon Driving Mechanism
RIBBON CARTRIDGE DETECTOR
Ribbon detector detects if the color ribbon is installed or not.
 Detect Timing
 When the power is applied.
 When recovering from the economy mode.
 When the printing is started.
AVOID STAINING COLOR RIBBON WITH DIFFERENT COLORS
To minimize staining the color areas on the ribbon with different colors, printing in green,
violet or orange is performed in the following order.
Color ribbon drive circuit
CS lever assembly
Ribbon detector
CS cam
CS motor
CS lever assembly
Color ribbon
Color cartridge holder
CS motor, pinion
CS cam
Black
Cyan
Magenta
Yellow
Table 2-8. Ribbon Detector Specifications
Item Specification
Method Mechanical contact method
Switching rate 0.6 to 1.0 mA
Switching mode
• Color ribbon cartridge is installed: High
• Black ribbon cartridge is installed or
no ribbon is installed: Low
Table 2-9. Color Printing Order
Color First color Second color
Green Yellow Cyan
Orange Yellow Magenta
Violet Magenta Cyan
