EPSON Stylus Pro 9500 Revision A
Adjustment Adjustment Steps 207
PAPER CUTTING POSITION CHECK
This check operation, by actually cutting paper, checks the following
adjustment results of the adjustment which was carried out previously, which
determine the paper cutting position.
n Paper Guide L Assembly Position Adjustment
n Cutter Positioning Adjustment
1. Set paper (minimum size: 10 cm wide x 20 cm) in the paper path along the
paper setting position on the right side of the printer, then lower the paper
set lever and set the paper.
2. Move the CR manually to the right edge of the paper, then lower the cutter
manually.
3. While holding the bottom edge of the paper with one hand, cut the paper
with the cutter.
4. Set a gauge with minimum measuring units of 0.5 mm at the edge of the
cutter level difference on the sub-platen and check if the distance from the
edge of the cutter level difference to the actual paper cutting position is
within 0.5 mm _ 0.2 mm.
5. If the measuring results are outside the standard, loosen about 2 of the
screws holding the paper guide L, then carry out fine adjustment of the
paper guide L’s assembly position.
6. In the same way, set paper on the left side of the printer, cut the paper
manually and measure the length from the cutter level difference to the
front edge of the paper. If the measurement results are not within the
standard, loosen about 2 of the screws holding the paper guide L and carry
out fine adjustment of the paper guide L’s assembly position.
CHECK
PO INT
n The length from the edge of the cutter level
difference to the front edge of the paper where it was
actually cut should be within 0.5 mm _ 0.2 mm.
n If you are adjusting the assembly position of the
paper guide L, the installation screws that are
loosened should be the absolute minimum number
of screws necessary to adjust the position. If a large
number of screws is loosened, the assembly
position of the paper guide L will shift a great
distance from the original adjustment position, so
caution should be exercised.

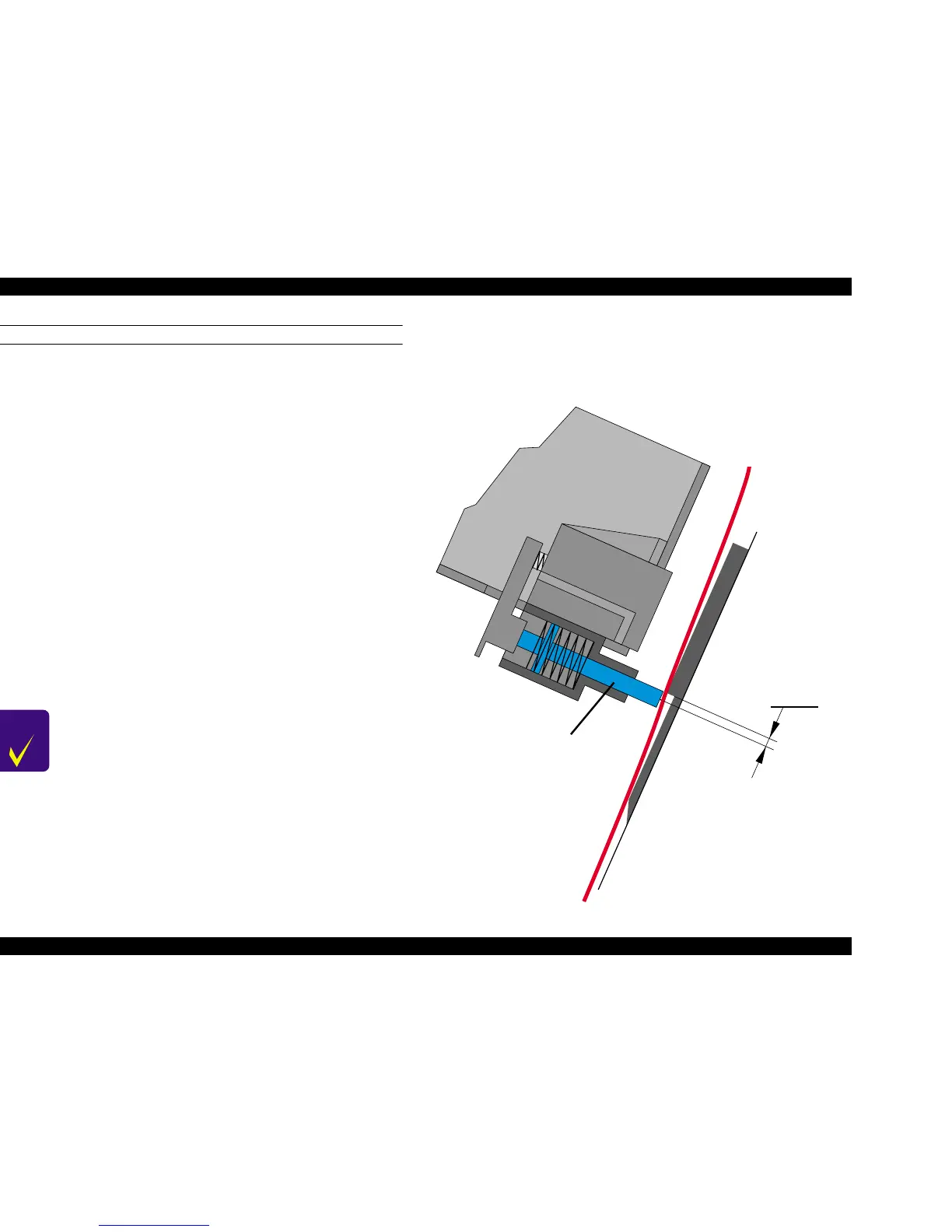

Carriage
Paper
Cutter
Length from the
paper cut surface
to the sub-platen’s
cutter level
difference edge.
0.5 mm
To Next Page
