For Ethernet Interface Model
Connect the printer to a network by a LAN cable via a hub.
1
Open the connector cover on the rear of the printer.
2
Connect a LAN cable to the LAN connector by pressing firmly until the
connector clicks into place and arrange it as shown below.
Make sure to put the USB cable through the cable hook as shown in the figure below to
prevent the cable from coming unplugged.
3
Close the connector cover.
CAUTION
• When LAN cables are installed outdoors, make sure devices without proper surge
protection are cushioned by being connected through devices that do have surge
protection.
Otherwise, the devices can be damaged by lightning.
• Never attempt to connect the standard telephone line cable to the 10/100BASE-T
LAN connector.

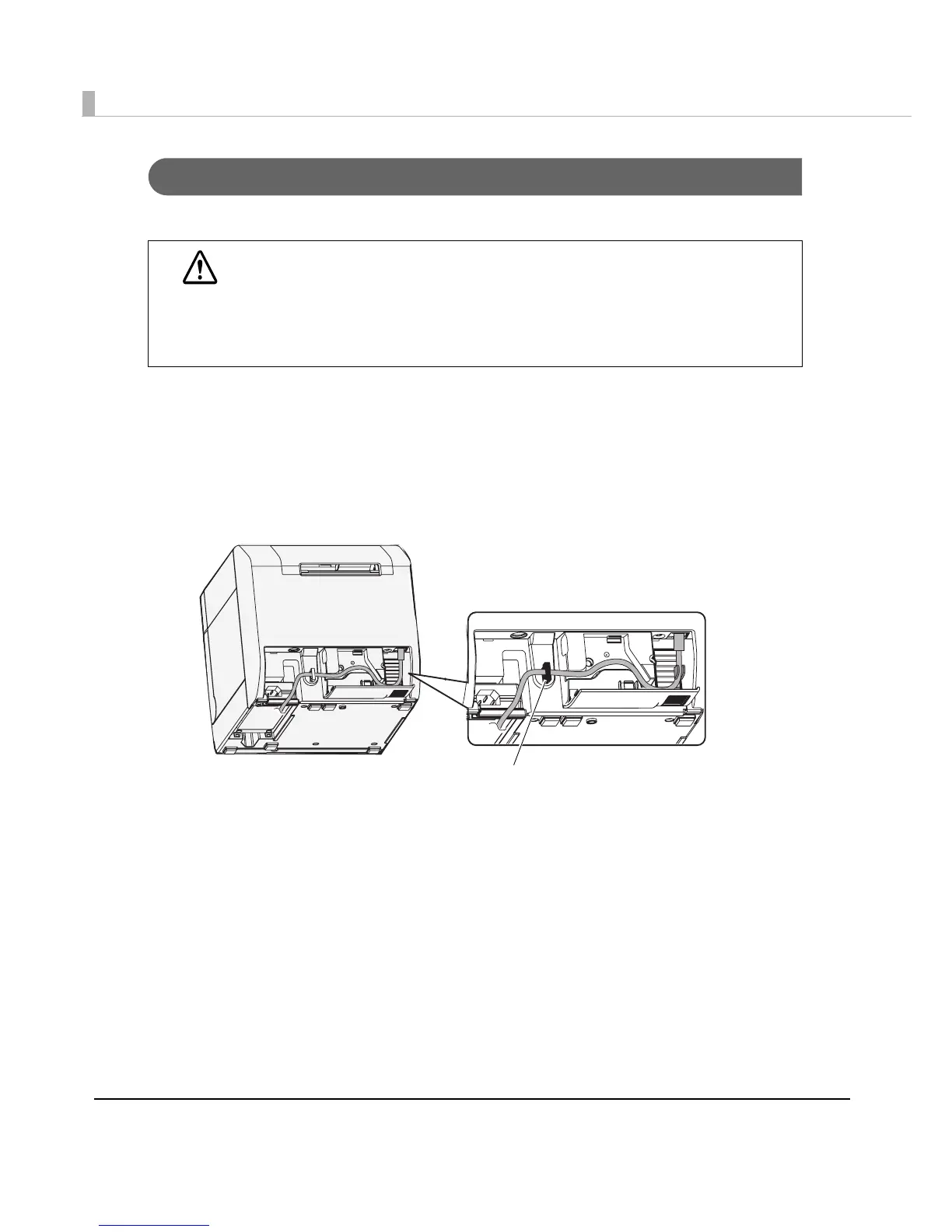

Cable hook: Prevents cable from coming unplugged.
